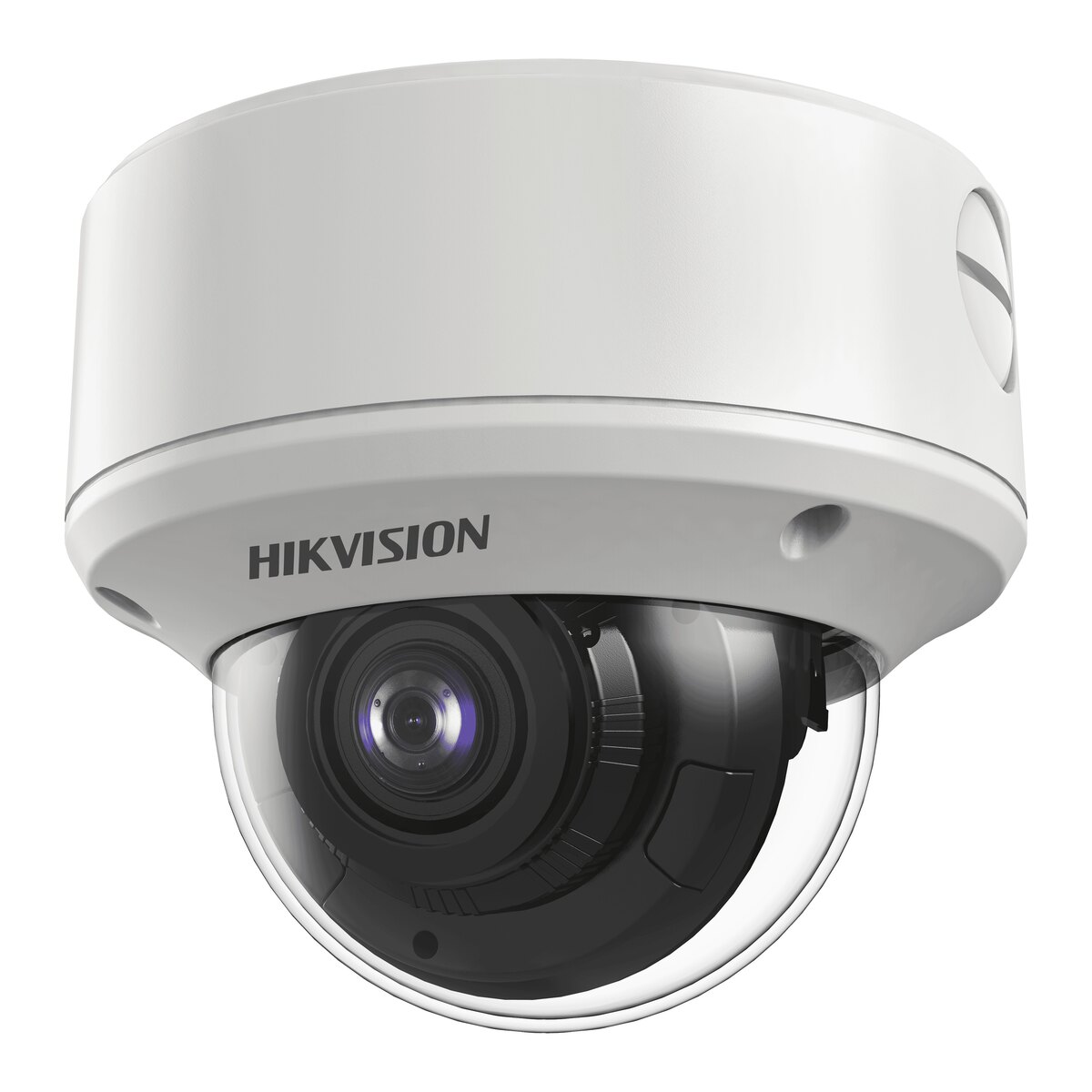

Hikvision 8MP Motorised Varifocal Turbo HD Dome Camera 2.7-13.5mm DS-2CE59U1T-AVPIT3ZF

Image Sensor: 8.29 megapixel progressive scan CMOS
Max. Resolution: 3840 (H) × 2160 (V)
Min. Illumination: Color: 0.01 Lux @ (F2.4, AGC ON), B/W: 0 Lux with IR
Lens Type: PAL: 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s

Login to view Price SKU: DS-2CE59U1T-AVPIT3ZF(2.7-13.5mm) Category: Analog CCTV Cameras Tag: 4K Analog Cameras Brand: Hikvision

Description

The Hikvision DS-2CE59U1T-AVPIT3ZF is a 8MP dome Turbo HD camera with a 2.7-13.5mm lens. The motorised lens zooms and focuses from the recorder or the app, so you can frame the shot once the camera is up. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 8.29 megapixel progressive scan CMOS
Max. Resolution: 3840 (H) × 2160 (V)
Min. Illumination: Color: 0.01 Lux @ (F2.4, AGC ON), B/W: 0 Lux with IR
Lens Type: PAL: 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
Focal Length & FOV: Horizontal FOV 108.1° to 45.6°
Lens Mount: F14

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	8.29 megapixel progressive scan CMOS
Max. Resolution	3840 (H) × 2160 (V)
Min. Illumination	Color: 0.01 Lux @ (F2.4, AGC ON), B/W: 0 Lux with IR
Shutter Time	PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°
Lens
Lens Type	PAL: 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
Focal Length & FOV	Horizontal FOV 108.1° to 45.6°
Lens Mount	F14
Illuminator
Supplement Light Type	IR
Supplement Light Range	Up to 60 m
Smart Supplement Light	Yes
Image Settings	Brightness;Mirror;Sharpness;AGC
Frame Rate	TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: [email protected], 8MP@15fps AHD: [email protected], 8M@15fps CVBS: 960H P/N
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	BLC;HLC
Noise Reduction	2D DNR
White Balance	Auto/Manual
Interface
Video Output	1 HD analog output;Switchable TVI/AHD/CVI/CVBS
General
Power	9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC *You are recommended to use one power adapter to supply the power for one camera. Max. 8.2W
Material	Metal
Dimension	Ø 145.2 mm × 124.1 mm (Ø 7.1" × 4.9")
Weight	Approx. 640 g (1.41lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Communication	HIKVISION-C
Approval
Protection	IP67

Downloads

Additional information

Brand	Hikvision
Lens	2.7-13.5mm
Colour	White
Resolution	8 MegaPixel
Technology	AHD, Analog (CVBS), CVI, TVI
Features	Varifocal Lens
Camera Type	Dome
Night Vision	Infrared (IR)
