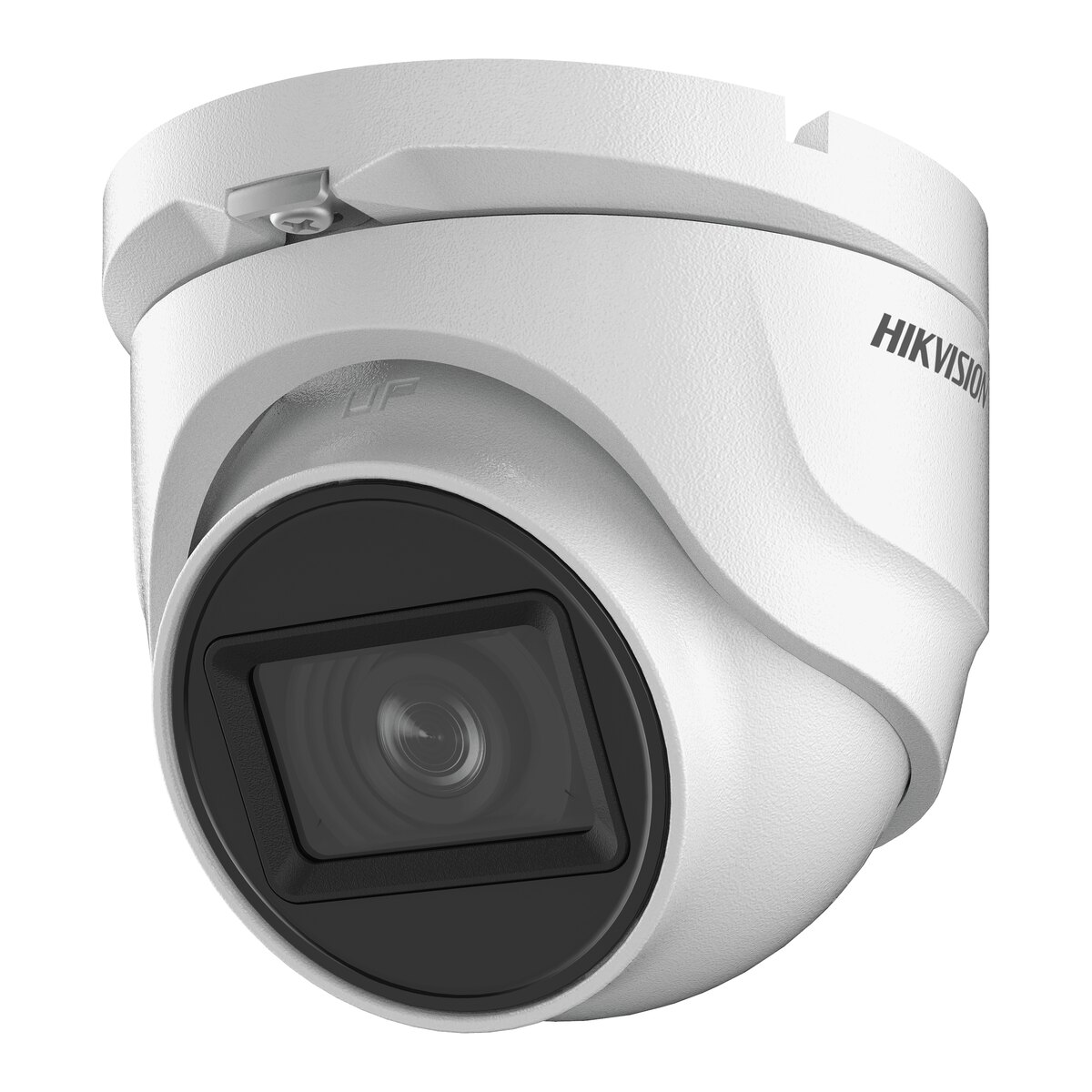

Hikvision 8MP Turbo HD Turret Camera 2.8mm DS-2CE76U1T-ITMF

Image Sensor: 8.29 megapixel progressive scan CMOS
Max. Resolution: 3840 (H) x 2160 (V)
Min. Illumination: Colour: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm fixed focal lens

Description

The Hikvision DS-2CE76U1T-ITMF is a 8MP turret Turbo HD camera with a 2.8mm lens. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 8.29 megapixel progressive scan CMOS
Max. Resolution: 3840 (H) x 2160 (V)
Min. Illumination: Colour: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm fixed focal lens
Focal Length & FOV: Horizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Lens Mount: M16

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	8.29 megapixel progressive scan CMOS
Max. Resolution	3840 (H) x 2160 (V)
Min. Illumination	Colour: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Signal System	PAL/NTSC
Lens
Lens Type	2.8 mm fixed focal lens
Focal Length & FOV	Horizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Lens Mount	M16
Illuminator
Supplement Light Type	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
Image Settings	Brightness; Sharpness; AGC
Frame Rate	TVI: [email protected], 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsCVI: [email protected], 8MP@15fpsAHD: [email protected], 8M@15fpsCVBS: 960H P/N
Day/Night Mode	Auto/Colour/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	BLC; HLC
Noise Reduction	2D DNR
White Balance	Auto/Manual
Interface
Video Output	1 HD analogue output Switchable TVI/AHD/CVI/CVBS
General
Power	12 VDC ±25%, max. 5.3 W *You are recommended to use one power adapter to supply the power for one camera.
Material	Metal
Dimension	90 mm x 79.37 mm (3.54" x 3.12")
Weight	Approx. 310 g (0.68 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F) Humidity: 90% or less (non-condensation)
Communication	HIKVISION-C
Language	English
Approval
Protection	IP67
