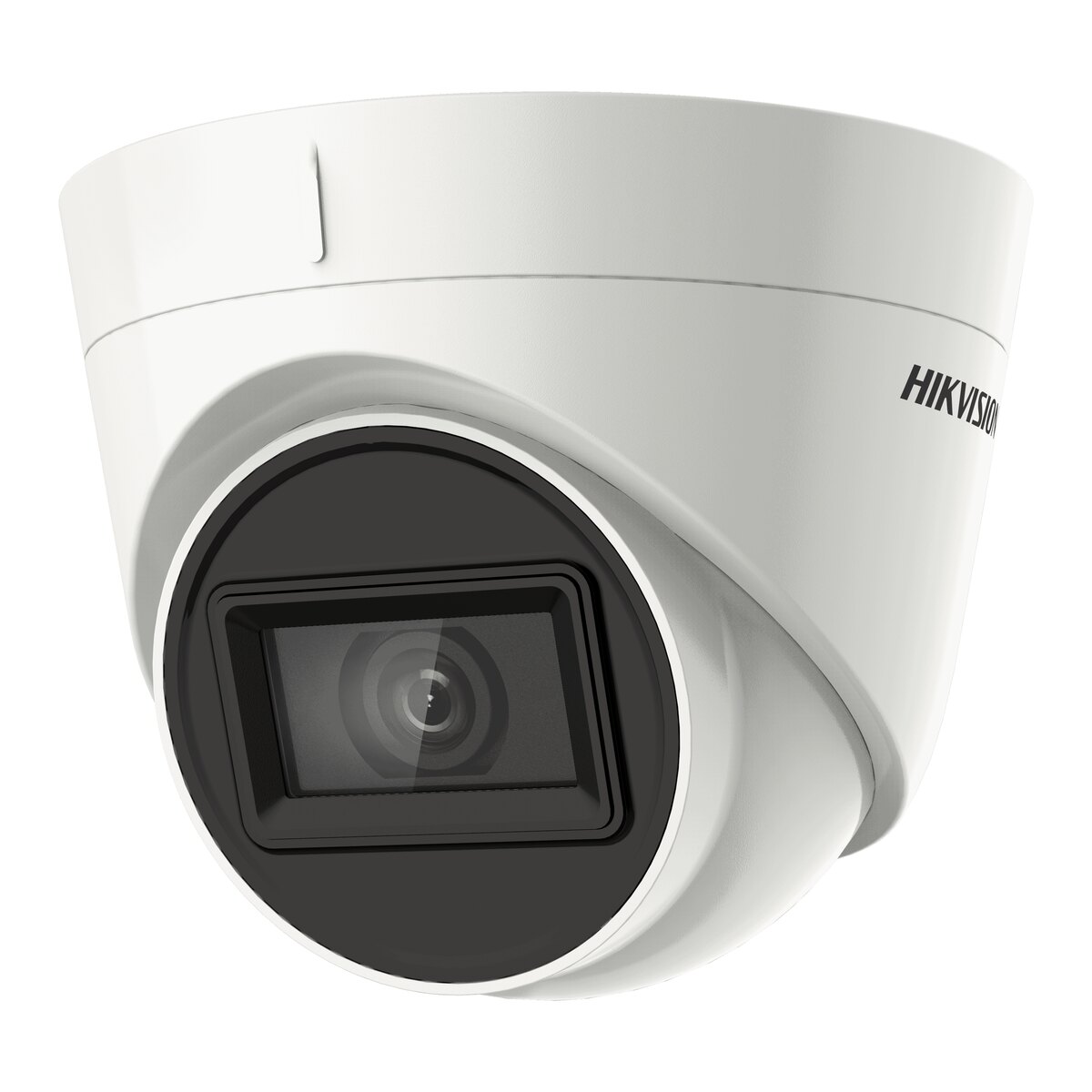

Hikvision 8MP Turbo HD Turret Camera 2.8mm DS-2CE78U1T-IT3F

Image Sensor: 8.29 megapixel progressive scan CMOS
Max. Resolution: 3840 (H) x 2160 (V)
Min. Illumination: Color: 0.01 Lux@ (F1.2, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm fixed lens

Colour

Clear

Description

The Hikvision DS-2CE78U1T-IT3F is a 8MP turret Turbo HD camera with a 2.8mm lens. It connects to a Hikvision Turbo HD DVR over standard coax cable. Choose the colour from the options.

Key features

Image Sensor: 8.29 megapixel progressive scan CMOS
Max. Resolution: 3840 (H) x 2160 (V)
Min. Illumination: Color: 0.01 Lux@ (F1.2, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm fixed lens
Focal Length & FOV: Horizontal FOV: 102.2° (2.8 mm), 79°
Lens Mount: M16

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	8.29 megapixel progressive scan CMOS
Max. Resolution	3840 (H) x 2160 (V)
Min. Illumination	Color: 0.01 Lux@ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Signal System	PAL/NTSC
Lens
Lens Type	2.8 mm fixed lens
Focal Length & FOV	Horizontal FOV: 102.2° (2.8 mm), 79°
Lens Mount	M16
Illuminator
Supplement Light Type	IR
Supplement Light Range	Up to 60 m
Smart Supplement Light	Yes
Image Settings	AGC; Brightness; Sharpness
Frame Rate	TVI: [email protected], 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: [email protected], 8MP@15fps AHD: [email protected], 8M@15fps CVBS: 960H P/N
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	HLC; BLC
Noise Reduction	2D DNR
White Balance	Auto/Manual
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS;1 HD analog output
General
Power	12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. Max. 5.3 W
Material	Main body: Metal, Enclosure: Plastic
Dimension	Ø 109.82 mm x 91.03 mm (Ø 4.32" x 3.6")
Weight	Approx. 320 g (0.71 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication	HIKVISION-C
Language	English
Approval
Protection	IP67
