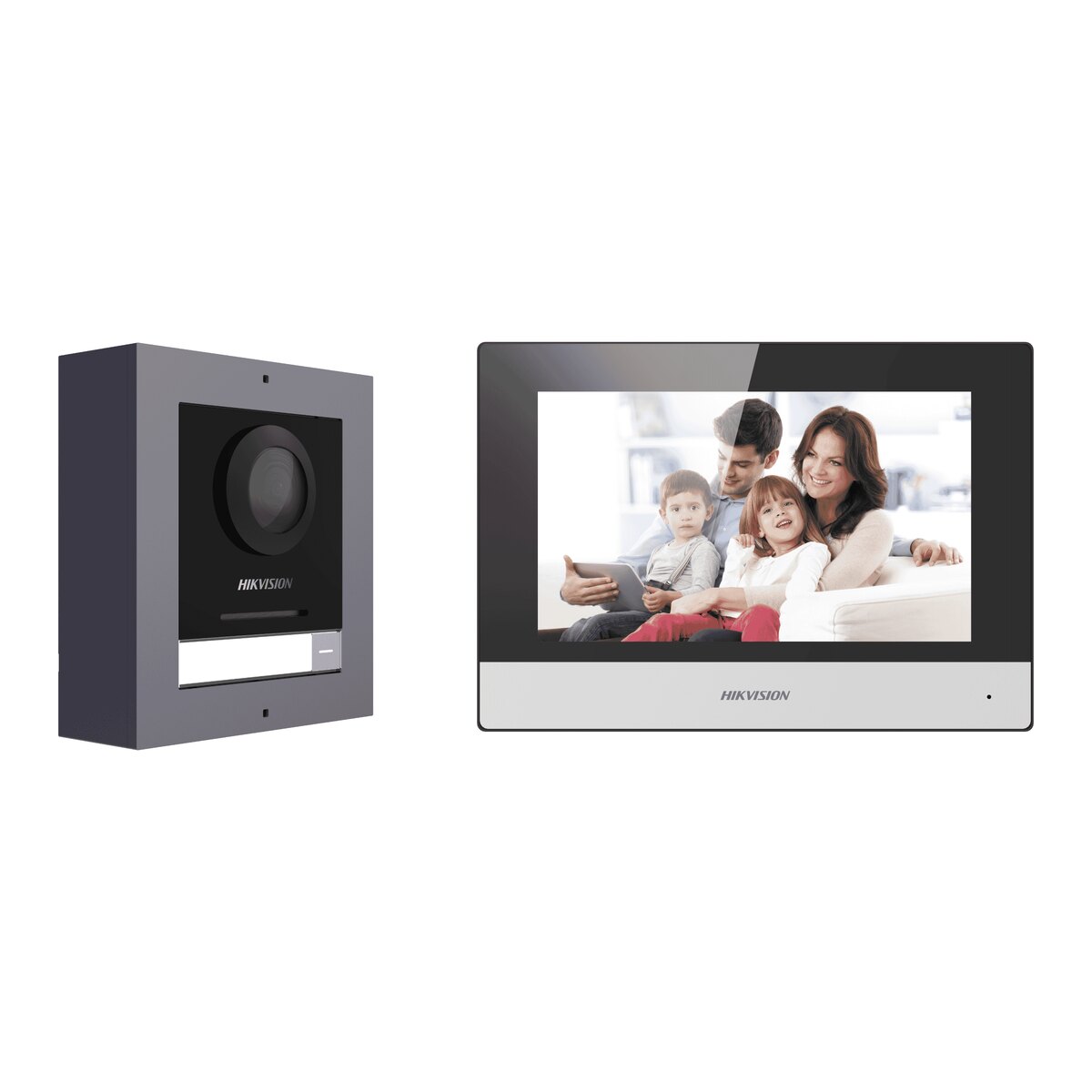

Hikvision Modular IP Video Intercom Kit with 7″ Screen DS-KIS602(B)

7-inch screen
Powered over the network cable (PoE)
Works with the Hik-Connect app

Description

A complete Hikvision video intercom kit with the door station and indoor station in one box, connected over network cable.

Key features

7-inch screen
Powered over the network cable (PoE)
Works with the Hik-Connect app

Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.

Specifications

System parameters
Processor	Embedded MCU Processor
Operation system	Embedded Linux Operation System
Display parameters
Display Resolution	1024 x 600
Display Screen	7-inch colorful TFT screen
Audio parameters
Audio Compression Rate	64 Kbps
Audio Compression Standard	G.711 U
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Audio Quality	Noise suppression and echo cancellation
Network parameters
Ethernet	10/100 Mbps Self-Adaptive Ethernet
Network protocol	TCP/IP, RTSP
Device interfaces
I/O input	4
I/O output	2
General
Power supply	12 VDC/PoE (IEEE 802.3af)
Power consumption	=10 W
Working temperature	-40° C to +60° C (-40° F to 140° F)
Working humidity	10% to 95%
Dimension (L x W x D)	200 mm x 140 mm x 15.1 mm (7.9" x 5.5" x 0.6")
Weight	683 g (with packaging) 355 g (without packaging)
IP protection level	IP65
Memory	128 MB
Dimensions (L x W x H)	98 mm x 99.8 mm x 43.9 mm (3.86" x 3.93" x 1.73")
