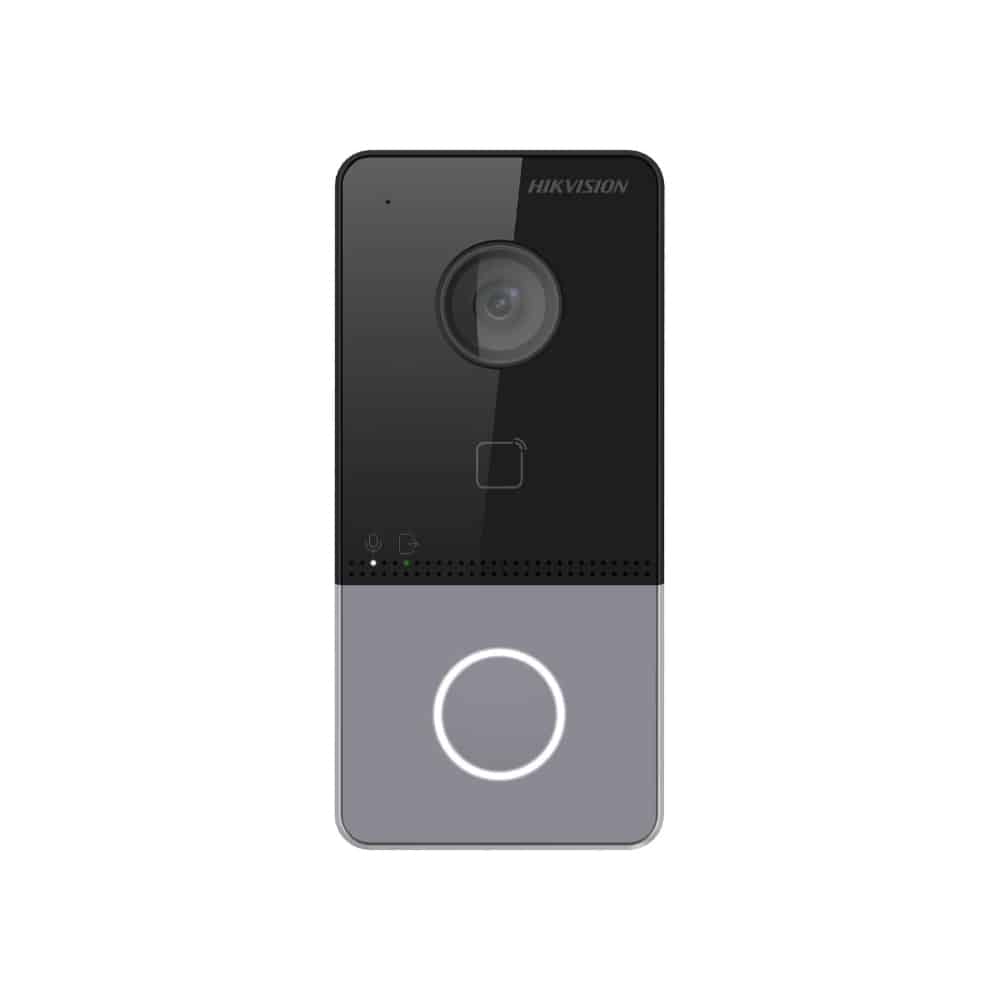

HIKVision 2MP Wi-Fi Video Intercom Villa Door Station
Hikvision 2.4GHz Wi-Fi video doorbell villa door station, 2MP camera, built in mifare card reader, self-adaptive IR supplement with max. 5m IR distance, H.264, WDR, IP55, 12VDC/POE, 3 year warranty *Operates on 2.4GHz Wi-Fi range only
- 2MP HD Camera with IR supplement
- Remotely unlock door/gate via client software or mobile client
- Supports WiFi (2.4GHz only)
- Supports setup via web GUI
- IP65 weather rated
- Built-in Mifare card reader
- Standard PoE/ 12 VDC
| System parameters | |
| Operation
system |
Embedded Linux operation system |
| Flash | 16 M, 32 M |
| RAM | 256 M |
| CPU | Embedded MCU Processor |
| Video parameters | |
| Video compression standard |
H.264 |
| Supplement
light |
IR supplement |
| Lens | 1 |
| FOV | Horizontal: 129° Vertical: 75° |
| WDR | True WDR |
|
Pixel |
Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576 |
| Audio parameters | |
| Audio compression
standard |
G.711 U |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression
bitrate |
64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment |
Adjustable |
| Capacity | |
| User capacity | 2000 |
| Linked indoor station |
1 |
| Network parameters | |
| Communication protocol |
TCP/IP, RTSP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Wi-Fi | Support |
| Received frequency |
2.4 to 2.4835GHz |
| Transmitted frequency |
2.4 to 2.4835 GHz |
| Bandwidth | 20 to 40 MHz |
|
Frequency power |
802.11b:16dBm +/- 1.5dBm
802.11g:15dBm +/- 1.5dBm 802.11n(ht20):14dBm +/- 1.5dBm 802.11n(ht40):12dBm +/- 1.5dBm |
| Device interfaces | |
| Alarm input | 4 |
| Network
interface |
1 |
| TAMPER | 1 |
| RS-485 | 1 |
| Exit button | 1 |
| USB | 0 |
| Wiegand | 0 |
| TF card | 0 |
| Alarm output | 0 |
| Lock control | 1 |
| Door contact input |
1 |
| Power interface | 1 |
| General | |
| Button | 1 |
| Indicator | 2 |
| Installation | Surface mounting |
| Working
temperature |
-40° C to +55° C(-40° F to 131° F) |
| Working
humidity |
10% to 95% |
| Indicator | 2 |
| Weight | 265 g |
| Protective level | IP65 |
| Power supply method | IEEE802.3af, standard PoE
12 VDC |
| Dimensions | 138 mm × 65 mm × 27 mm |
| Application environment |
Outdoor |
| Power consumption | ＜ 10 W |
| Title | Type | Size | |
|---|---|---|---|
|
ds-kv6113-wpe1b | application/pdf | 300 KB |
| Brand | Hikvision |
|---|---|
| Resolution | 2 MegaPixel |
| Technology | IP |
| Features | 2-Way Audio, Microphone Built-In, PoE |
