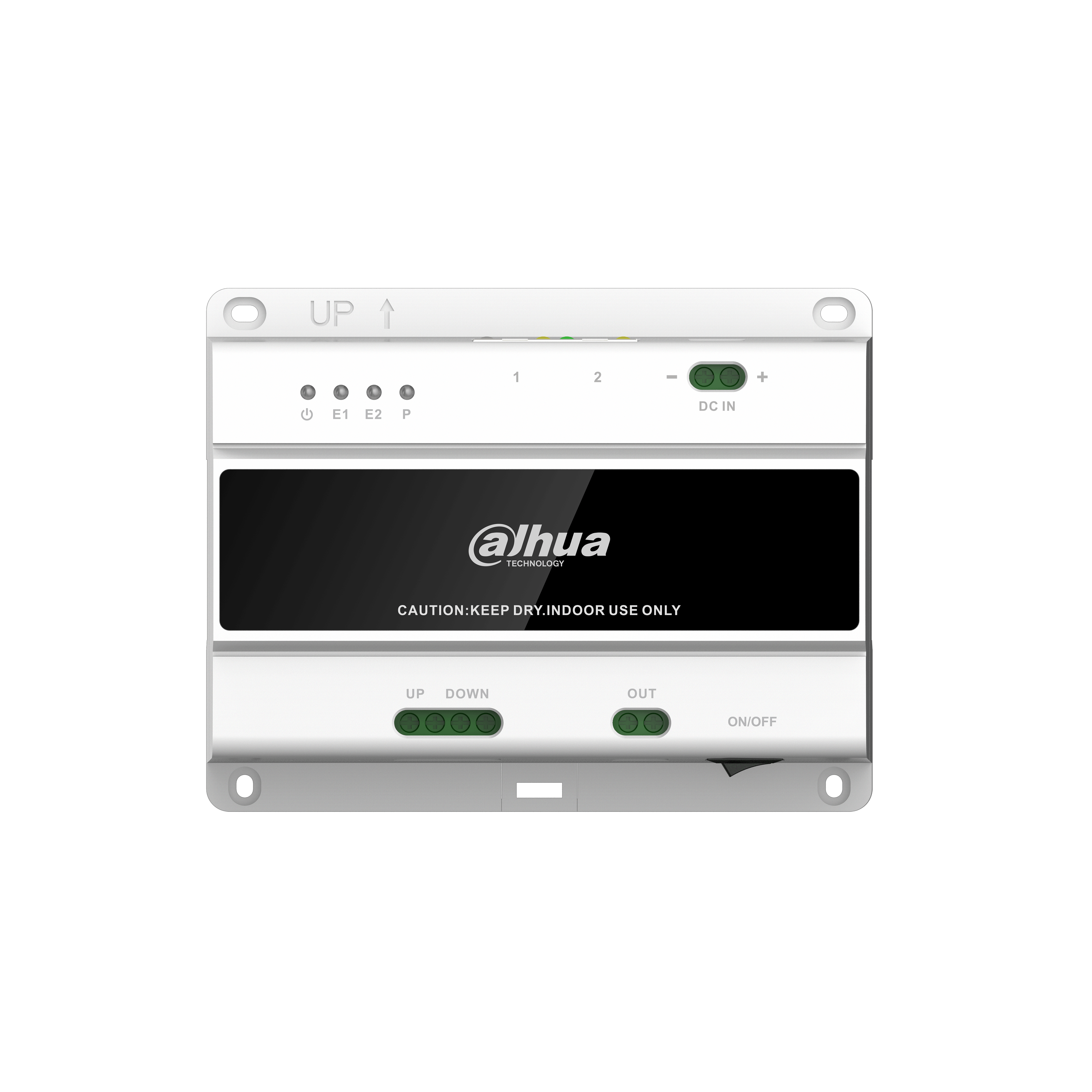

Dahua 2-wire Switch VTNS2003B-2

Supports 10-level cascade through the 2-wire port
Supports connecting to 20 indoor monitors and 2 door stations
Supports connecting through RJ45 port

Description

Basic

Status Indicator Light

Communication Mode

2-wire

Cascade Ability

Port

port

Two 2-wire ports for cascade

port

Two RJ45 ports, 10 Mbps/100 Mbps Ethernet

port

One 2-wire device port

General

Casing

PC + ABS

Appearance color

White

Power Supply

DC 48V, 1A?3A

Power Adapter

Optional

Installation

Guide rail mount

Certifications

CE; FCC; UL

Accessory

Power converter cable

Product Dimensions

131.1 mm ? 103 mm ? 40 mm (5.16″ ? 4.06″ ? 1.57″)

Operating Temperature

?10?C to +55?C (14?F to 131?F)

Operating Humidity

10%?95% (RH, non-condensing)

Operating Altitude

0-3000 m

Power Consumption

? 15W (KIT)

Net Weight

0.25 kg (0.55lb)

Gross Weight

0.39 kg (0.86 lb)

Documents

Title	Type	Size
2-wire Switch_User's Manual_V1.0.2	application/pdf	475 KB
2-wire-Switch_Installation-Guide_V1.0.0	application/pdf	1,008 KB
DHI-VTNS2003B-2_INSTALLATION_PROCEDURE	application/pdf	21 KB
VTNS2003B-2_DIMENSIONS	application/pdf	41 KB

Additional information

Brand	Dahua
