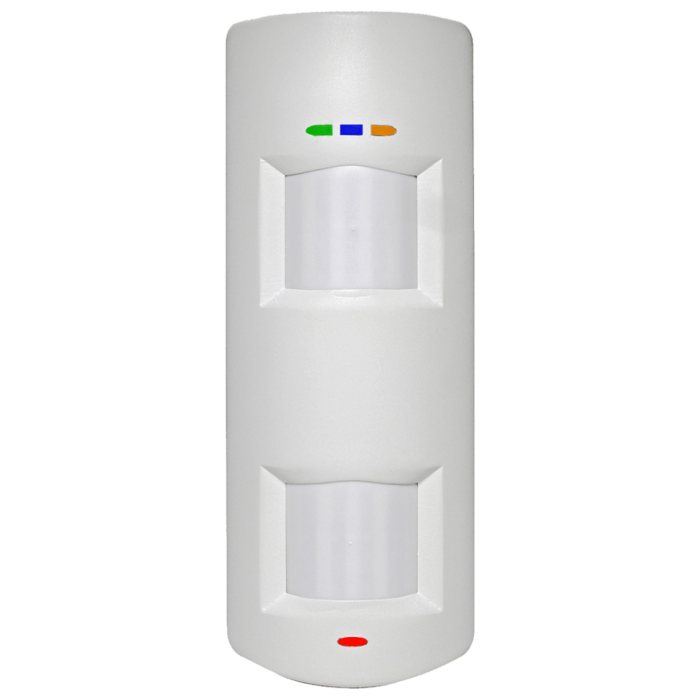

Description
- Dual element pyro-electric sensor
- 12m PIR detector
- Patented Independent Floating Thresholds (IFT)
- Adjustable sensitivity settings
- Automatic temperature compensation
- Sealed optics
- ABS plastics
- Contemporary blue LED
Detectors technical characteristics
| Digital temperature compensation | Yes |
| Dual element pyro-electric sensor | Yes |
| Tamper protection | Front and Rear |
| Adjustable sensitivity | Yes |
Detectors technical characteristics
| Maximum range | 12m (Volumetric Lens) 30m (Optional Long Range Lens) |
| Volumetric coverage | Yes |
| Detection speed | 0.3 – 3m/s |
| Coverage angle | 90 degree |
| Detection zones | 108 |
| Detection planes | 3 |
| White light filter | 6500 Lux |
| Protection | Ultraviolet light filter |
| Lens | Fresnel array |
| Optics | Sealed |
Mounting
| Wall mounted | Optional bracket |
| Ceiling mounted | Optional bracket |
| Optimum coverage height | 1.8-2.4m |
| Certified mounting height | 2.4m |
Environmental and operating features
| Storage temperature | -40C to +80C |
| Certified operating temperature | -10C to +40C |
| Nominal operating temperature | -30C to +70C |
| Physical dimensions (H x W x D) | 88 x 60 x 42mm |
| Weight | 80g |
Electrical & battery
| Operating voltage | 9 – 16V DC 13.8V DC typical |
| Quiescent current consumption | 11mA @ 12V (Min), 12mA @ 12V (Max) |
| Relay outputs | SELV limits; 60V DC, 50mA (42.4V AC Peak) |
| Tamper switch | 12V 50mA |
Certifications and warranty
| Security Grade | Grade 2 |
| Environmental class | II |
| EN Certificate | EN50131-2-2:2008 | EN50131-1:2006+A1:2009 | PD6662:2010 |
| Certification type | Self-certified |
| Electrical conformity | CE |
| Warranty | 5 years |
Additional information
| Brand | Pyronix Hikvision |
|---|
