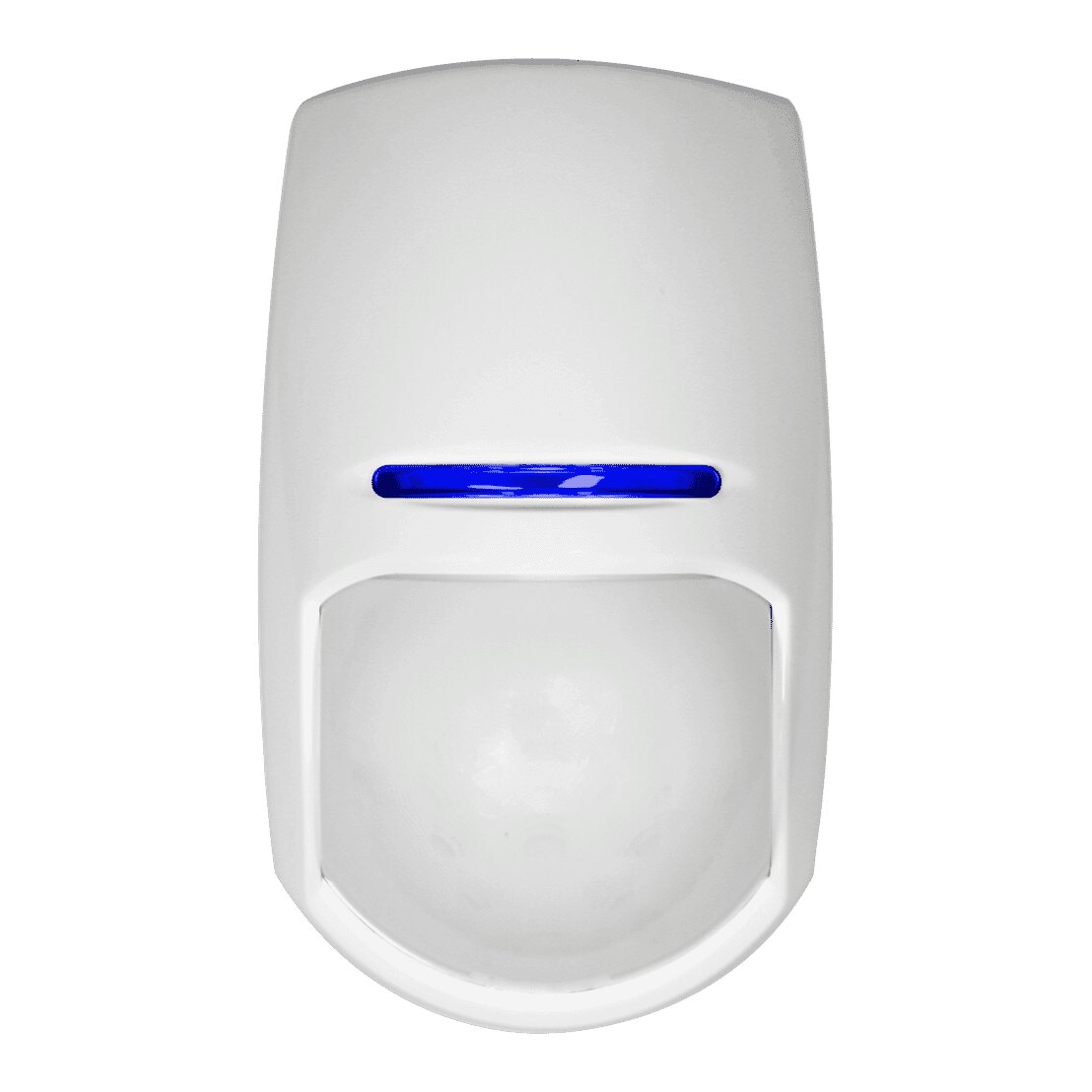

Name: Pyronix 18m Curtain Detector KX18DC
Brand: Pyronix
SKU: KX18DC
Price: 23.12 GBP
Availability: InStock

A wired curtain detector that throws a narrow beam up to 18m, for long corridors or for covering a run of windows and doors.

Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.

Detectors technical characteristics
Blue Wave technology	Yes
Automatic sensitivity	Yes
Digital temperature compensation	Yes
DEOL resistor on board	Yes
Tamper protection	Front and rear
Maximum range	18m or 30m long range
Curtain coverage	Yes
Detection speed	0.3 – 3.0 m/s
Coverage angle	20 degree
Detection zones	46 curtain coverage or 24 long range
Detection planes	6
White light filter	6500 Lux
Protection	Ultraviolet light filter
Lens	3 dimensional
Optics	Sealed optics
Detection method	Low noise dual element pyroelectric sensor
Mounting
Wall mounted	Bracket included
Ceiling mounted	Bracket included
Optimum coverage height	Max 4m (curtain coverage) or 1.8 – 2.4m (long range coverage)
Environmental and operating features
Storage temperature	-40C to 80C
Certified operating temperature	-10C to 40C
Nominal operating temperature	-30C to 70C
Physical dimensions (H x W x D)	117 x 69 x 50mm
Weight	125g without bracket
Electrical & battery
Operating voltage	9-16V DC 13.8V DC typical
Quiescent current consumption	13mA @ 12V (Min), 16mA @ 12V (Max)
Contact Resistance
Relay outputs	50mA 60 VDC, 42 VAC (RMS)
Tamper switch	12V 50mA
Certifications and warranty
Security Grade	Grade 2
Environmental class	II
EN Certificate	EN50131-2-2:2008, EN50131-1, PD6662:2010
Electrical conformity	CE
Warranty	5 years
