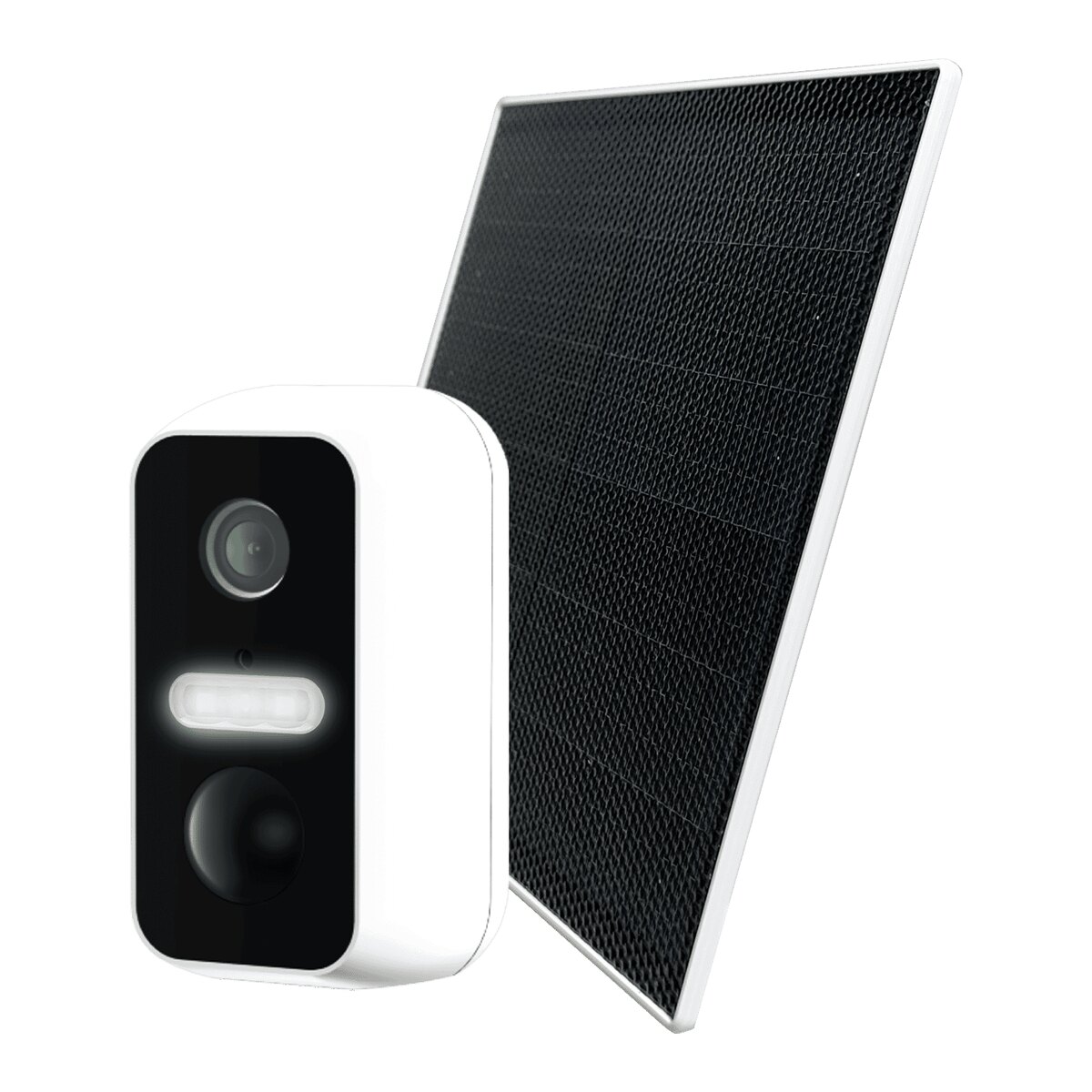

Pyronix Battery Powered Indoor and Outdoor Camera BATTERY/CAM2

Pyronix Battery Powered Indoor and Outdoor Camera 3.2mm BATTERY/CAM2

Image Sensor: 1/2.9'' 3 Megapixel CMOS
Effective pixels: 2304(H) x 1296(V)
Shutter: 1/15~1/10,000s
Min luminance: Colour [email protected], Black/White 0.01Lux@ F2.0

Description

A wire-free Pyronix camera that runs on its own battery, so it can go wherever you need it without a power cable. It works with the Pyronix HomeControl+ app.

Key features

Image Sensor: 1/2.9'' 3 Megapixel CMOS
Effective pixels: 2304(H) x 1296(V)
Shutter: 1/15~1/10,000s
Min luminance: Colour [email protected], Black/White 0.01Lux@ F2.0
IR distance: Night visibility up to 10m
Day/Night: Auto(ICR)/Colour/B&W

Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.

Specifications

Camera
Image Sensor	1/2.9'' 3 Megapixel CMOS
Effective pixels	2304(H) x 1296(V)
Shutter	1/15~1/10,000s
Min luminance	Colour [email protected], Black/White 0.01Lux@ F2.0
IR distance	Night visibility up to 10m
Day/Night	Auto(ICR)/Colour/B&W
WDR	DWDR
Lens	[email protected], 130°
Video & Audio
Compression	H.264
Bit rate	32Kbps~2Mbps
Frame rate	1~25fps
Dual stream	Yes
Audio input/output	Built-in mic/speaker
Network
Alarm trigger	PIR human-body detection
Communication protocol	HTTP, DHCP, DNS, TCP/IP
Interface protocol	Private
Wireless	2.4G WIFI (IEEE802.11b/g/n)
Supported mobile phone OS	iOS 9 or later, Android 5 or later
Security	AES128
Wireless security	64/128-bit WPA/WPA2, WPA-PSK/WPA2- PSK, WPS
Max user access	4
Battery & PIR
Capacity	9600mAh rechargeable Li batteries
Stand-by current	200-800 µA (average)
Working current	150-200 mA (IR off)
Stand-by time	6 months
Working time	2-3 months (varies based on settings, usage & temperature)
PIR detection range	Max. 9m
PIR angle	120°
General
Operating temperature	-20 °C to 50 °C
IP rating	IP65
Power supply	DC 5V/1A
Power consumption	Max. 2W
Optional accessory	Solar panel
Storage	SD card (Max.128GB), Cloud storage
Dimensions (W x H x D)	57 x 63 x 100mm
Net weight	235g
