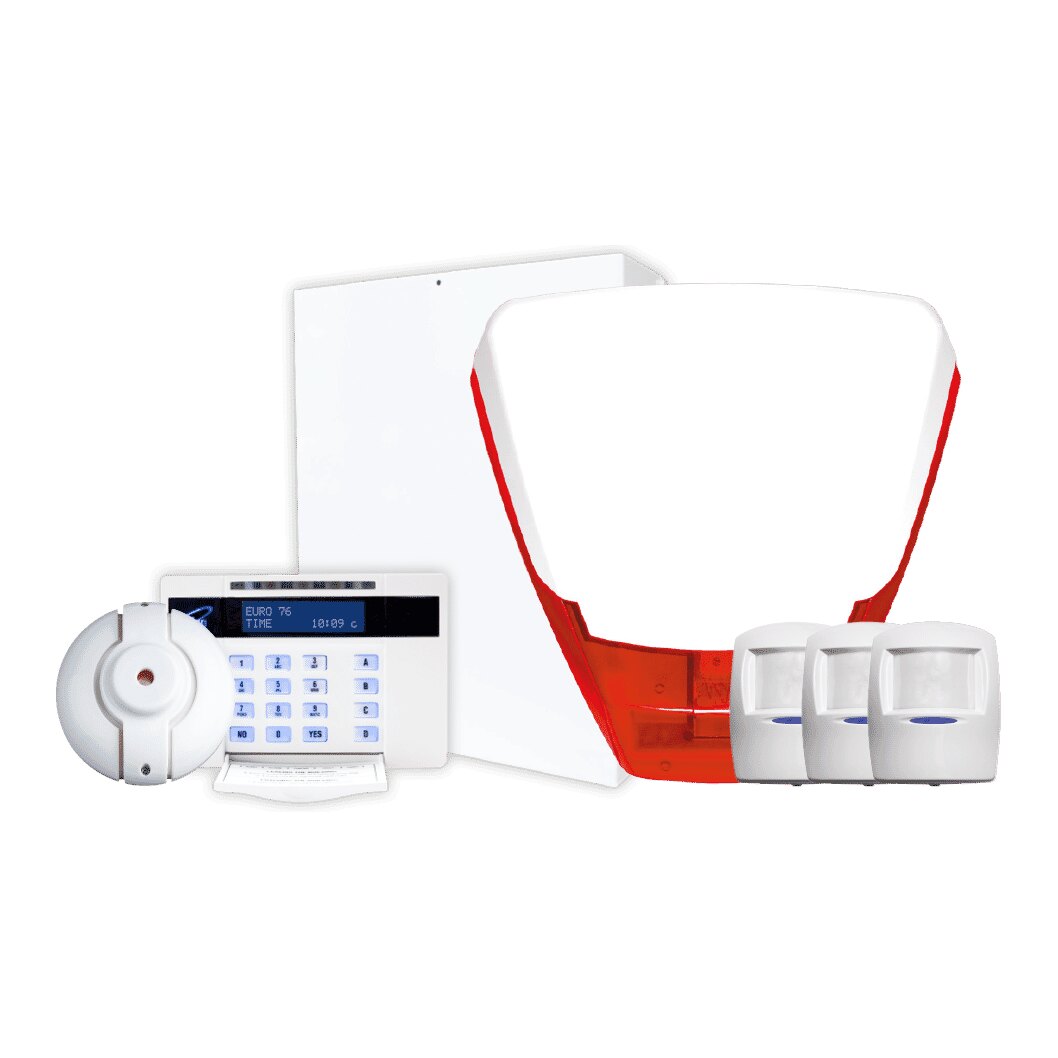

Pyronix Euro 76 Small Hybrid Grade 2 Alarm Kit EURO76/S-KIT

Two-way wireless technology: Requires EURO-ZEM32-WE
Independent areas: 6
Tamper protection: Front and back
LCD keypad with integrated prox reader: EUR-064

Description

A Pyronix Euro 76 hybrid alarm kit. The Euro 76 takes wired detectors and, with a wireless expander, Pyronix two-way wireless devices on the same system.

Key features

Two-way wireless technology: Requires EURO-ZEM32-WE
Independent areas: 6
Tamper protection: Front and back
LCD keypad with integrated prox reader: EUR-064
User codes and prox tags: 75
Guard codes: 10

Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.

Specifications

Recharge time
Two-way wireless technology	Requires EURO-ZEM32-WE
Independent areas	6
Tamper protection	Front and back
LCD keypad with integrated prox reader	EUR-064
User codes and prox tags	75
Guard codes	10
Reporting formats	Contact ID (standard and IP) \| Fast Format (standard and IP) \| SIA3 (standard and IP)
System logs	1250 events (EEPROM)
Areas	6
Input type	Double pole, DEOL and 3EOL \| Wireless with additional EURO-ZEM32-WE
Two-way wireless inputs	64 (with 2 x EURO-ZEM32-WE)
Onboard wired inputs	8 (10 including keypad inputs)
Total inputs	76
Outputs on board	1 relay \| 4 transistor \| 10 low power ATE outputs
Two-Way Wireless Keypads	4 (requires EURO-ZEM32-WE)
Output modules	2
Wired automation outputs	30
Maximum outputs	85
Two-way wireless keyfobs	32 (requires EURO-ZEM32-WE)
Two-way wireless sirens	2 (requires EURO-ZEM32-WE)
Wired keypads	6
Readers and entry control	5
GPRS modem (optional)	Yes
GSM modem (optional)	Yes
PSTN modem (optional)	Yes
LAN modem (optional)	Yes
WiFi modem (optional)	Yes
Supports PyronixCloud & HomeControl+ App	Yes
SMS numbers	10
Remote speaker and microphone	16 ohms speaker wired to endstation
Event Signalling to Insite	Yes
ARC compatibility	Yes
Compatible with UDL software	Yes
Storage temperature	-20C to +60C
Certified operating temperature	-10C to +40C
Physical dimensions (H x W x D)	PCB 110 x 170 x 40 mm \| Small case 297 x 250 x 82 mm \| Large case 390 x 305 x 100 mm
Weight	Small case 4.8kg inc. battery \| Large case 11.5kg inc. battery
Battery capacity	Small case 7Ah maximum \| Large case 17Ah maximum
Battery voltage	~13.8VDC
Battery low voltage protection	~10.5VDC
Low battery threshold	~10.5VDC
Mains supply	~230VAC at 50Hz \| -15% +10 %
Quiescent current consumption	80mA (PCB)
Transformer	Power Supply Type A.
Fuse (battery)	T 1.5A anti-surge slow blow 250V
Fuse (12v outlets)	F800mA quick blow 250V
Fuse (mains)	T500mA H anti-surge slow blow 250V
Fuse (RS485 data BUS)	F800mA quick blow 250V
Relay outputs	3A, max 30V
Normal	1k4 to 2k9
Intruder	4k2 to 7k8
Tamper	22k
Fault	8k to 11k3
Masking	11k6 to 22k
EN Certificate	PD6662:2010+IA501:2015 \| EN50131-1:2008+A1:2009 \| EN50131-3:2009
Environmental class	II
Warranty	2 Years
Security Grade	Small case 2 \| Large case 3
