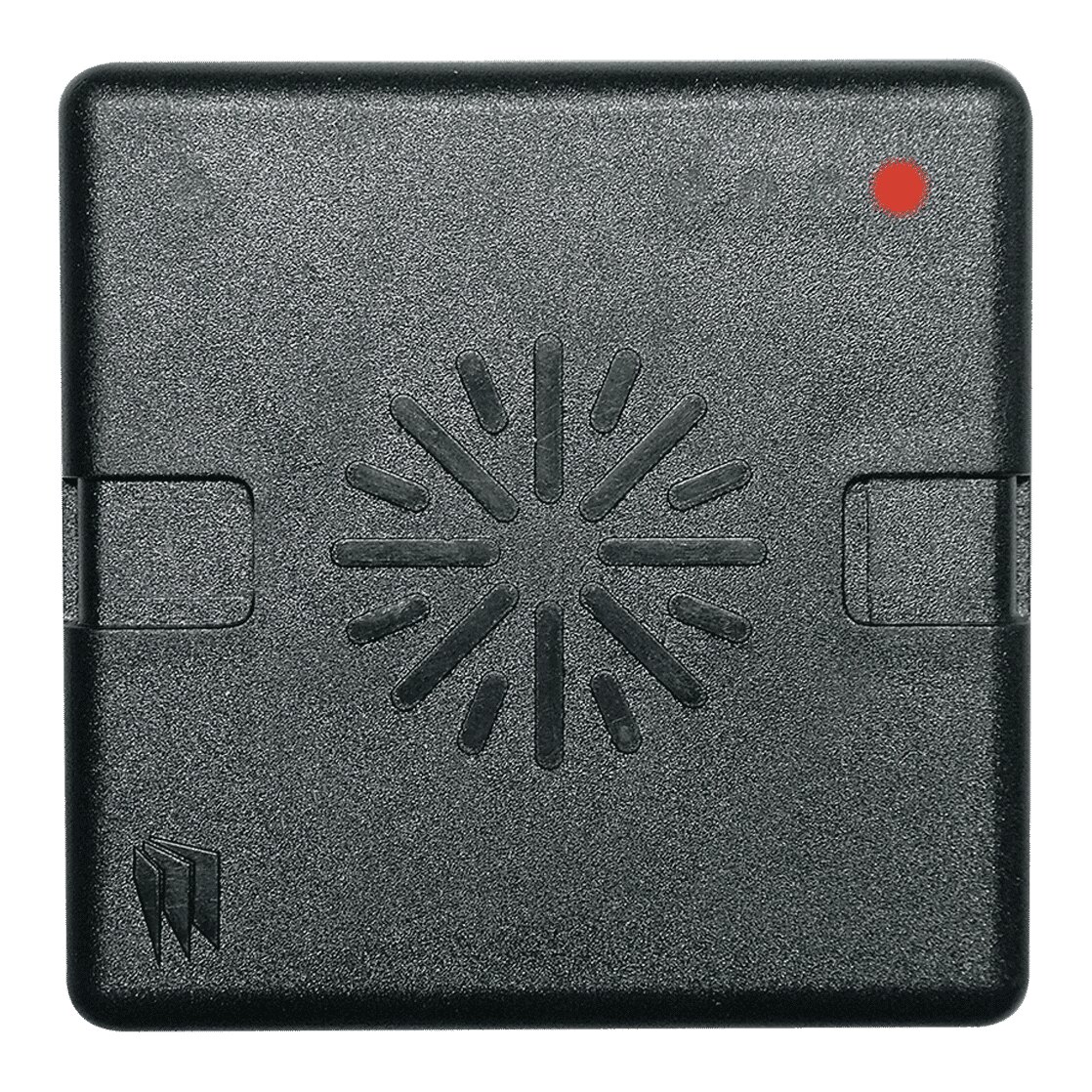

Pyronix External Proximity Tag Reader EUR-108X

An outdoor proximity reader for beside the door, so users can unset the alarm with a tag before they step inside.

Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.

Integrated prox reader	Yes
IP 64 rated external prox reader	Yes
Onboard wired inputs	1
Outputs on board	1
Certified operating temperature	-10 to +50C
Nominal operating temperature	-10 to +50C
Physical dimensions (H x W x D)	85 x 85 x 21mm
Operating voltage	13.8V (9-16V range)
Supply current	Max. 90mA @ 13.8V
Electrical conformity	CE
EN Certificate	EN50131-1 \| PD6662
Environmental class	IV
Warranty	2 years
Security Grade	Grade 3
