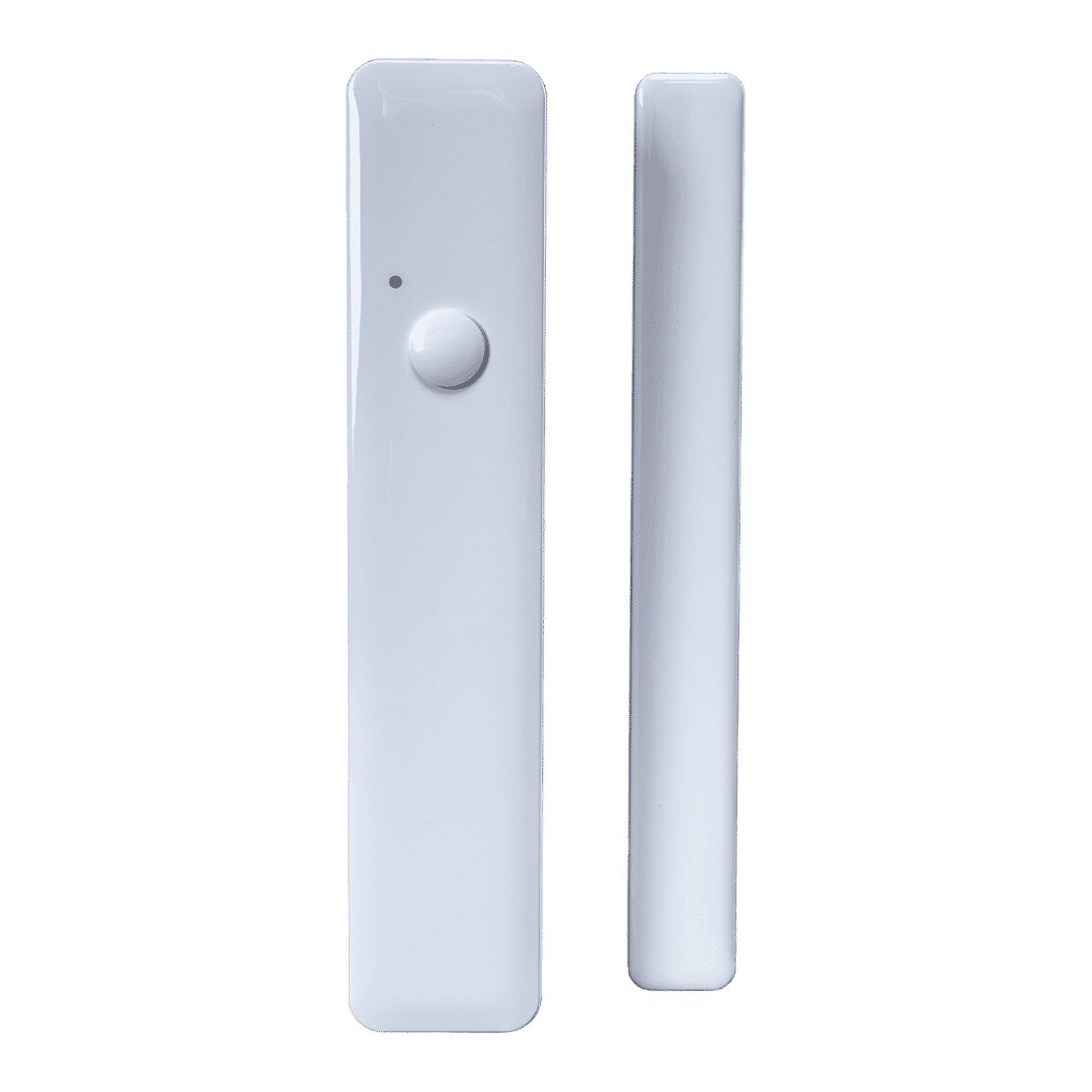

Pyronix Two-Way Wireless Door Contact with External Input MC1Z1-WE
Login for Price
- Colour: White
- Tamper switches: Passive, Closed Contact
- Transmission method: Fully encrypted rolling code
- Transmission frequency: 868MHz FM transceiver narrow band
Description
A wireless magnetic contact for doors and windows on a Pyronix two-way wireless system. The panel knows the moment the door or window opens.
Key features
- Colour: White
- Tamper switches: Passive, Closed Contact
- Transmission method: Fully encrypted rolling code
- Transmission frequency: 868MHz FM transceiver narrow band
- Transmission range: 300m
- Battery type: 3.0V CR123A Lithium Battery
Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.
Specifications
| Physical | |
|---|---|
| Dimensions (W x H x D) | Main Housing: 125 x 25.5 x 28mm Magnet: 125 x 15 x 16mm |
| Weight | Main housing 65g. Magnet housing 30g |
| Casing | 2.5mm ABS |
| Colour | White |
| Tamper switches | Passive, Closed Contact |
| Electrical | |
| Transmission method | Fully encrypted rolling code |
| Transmission frequency | 868MHz FM transceiver narrow band |
| Transmission range | 300m |
| Battery type | 3.0V CR123A Lithium Battery |
| Low battery threshold | 2.5V ± 5% @ 25°C |
| Battery life | 2 years |
| Environmental | |
| Storage temperature | -20°C to 50°C |
| Operating temperature | -10°C to 40°C |
| Certifications | |
| Security grade | 2 |
| Security standards | EN50131-1:2006+A3:2020, EN50131-2-6:2008, EN50130-5:2011, EN50131-5-3:2017, PD6662:2017 |
| Environmental class | ll |
| Emissions | EN 55032:2015+A1:2020 |
| Immunity compliance | EN 50130-4:2011+A1:2014 |
Downloads
Additional information
| Brand | Pyronix Hikvision |
|---|
