Sky MK4 4 Output Quad LNB for Freesat HD, Sky+, HD & Multiroom
£14.99 inc VAT

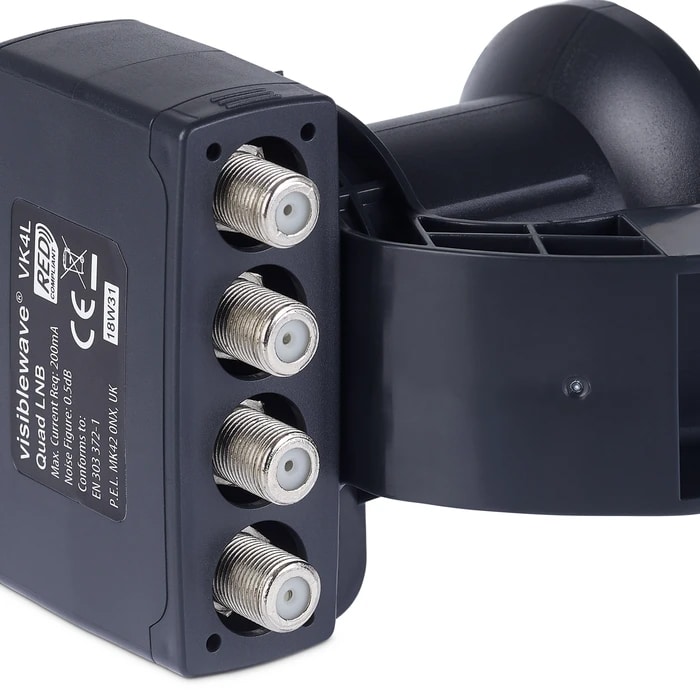

Sky Certified MK4 Quad LNB (4 Outputs) with Rain Cover
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description
This is a high quality Sky Certified Quad LNB, complete with a rain cover to protect the LNB output from water ingress and a spirit level as standard. It is suitable for MK4 Sky satellite dishes and clips straight onto the dish arm. It has 4 outputs for multiple Sky, Freesat, HD receivers and is backed with a 12 month warranty.
Installation
This LNB installs easily and there are no special tools necessary. Simply unscrew the connections going to your old LNB, unclip the LNB from the arm (may require a flat side screwdriver), clip on this new LNB and screw back on your connections to the new LNB.
Suitable for older dishes (legacy adapter needed)
This LNB is also suitable for older model Sky dishes with a 30mm x 20mm rectangular arm. Simply unclip and use the Sky Legacy Adapter (not supplied or stocked)
Note: This LNB is not compatible with Sky Q.
| Technical Specifications | |
| Input Frequency | Low Band: 10.7~11.7 GHz |
| High Band: 11.7~12.75 GHz | |
| Output Frequency | Low Band: 950~1950 MHz |
| High Band: 1100~2150 MHz | |
| L.O. Frequencies | 9.75 / 10.6 GHz |
| Noise Figure | 0.5 dB (typ.) |
| Conversion Gain | 55 dB (min.) / 65 dB (max.) |
| Gain Flatness | 0.75 dB / 26 MHz (max.) |
| Cross Polar Isolation | 25 dB (typ.) |
| Image Rejection | 40 dB (min.) |
| Operating Temp. | -30’C ~ +60’C |
| L.O. Stability | +/- 1.0 MHz @ 25’C |
| +/- 3.0 MHz @ -30’C ~ +60’C | |
|
Phase Noise |
-50 dBc / Hz @ 1 kHz |
| -75 dBc / Hz @ 10 kHz | |
| 95 dBc / Hz @ 100 kHz | |
| Power Consumption | 200 mA (max) |
| RED Compliance | EN 303 372-1 |
Additional information
| Weight | 7 kg |
|---|
