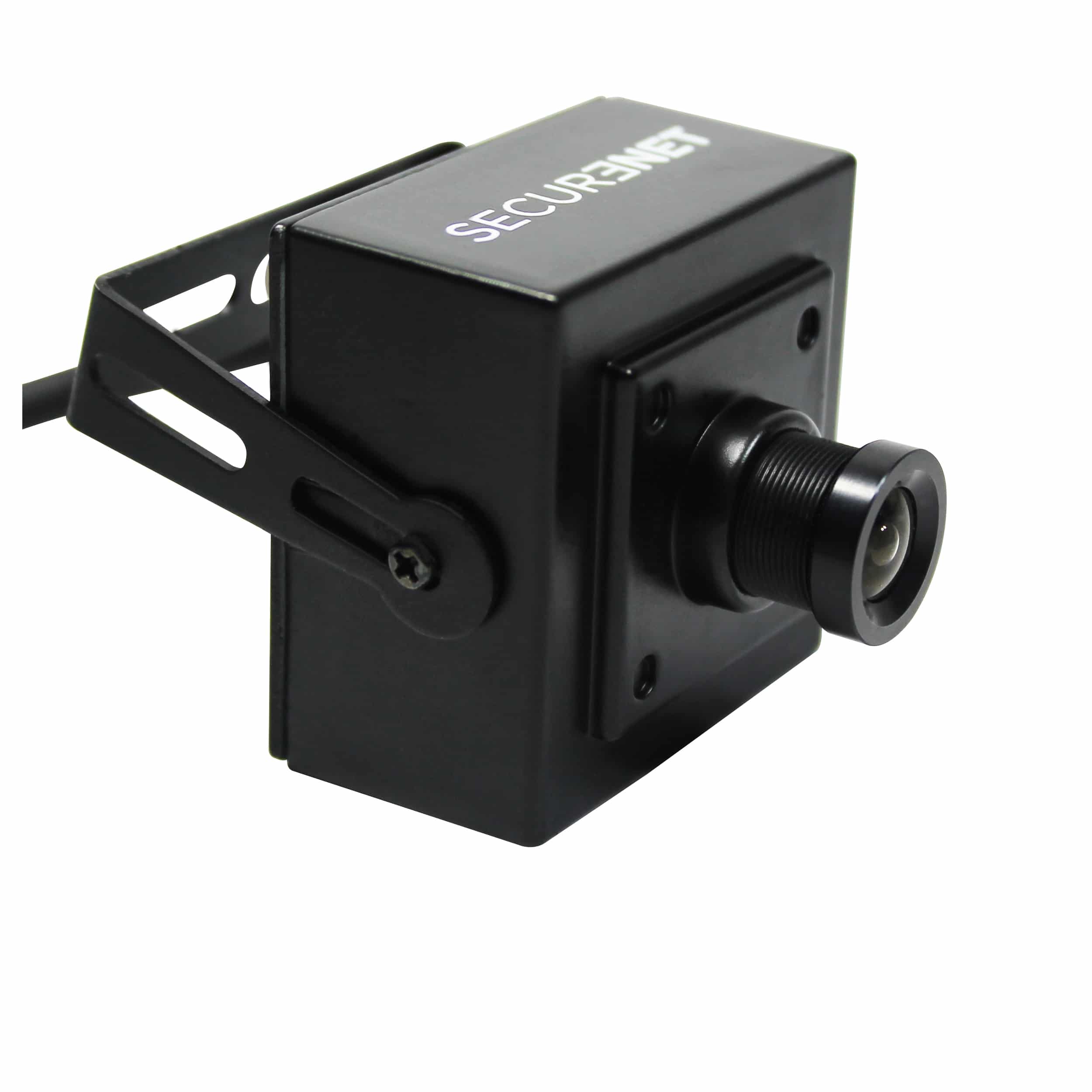

- Small CCTV camera for covert surveillance
- With OSD menu
- 3.6mm 3MP Lens
- HD AHD interface supporting transmission distances of up to 500m
| System | PAL/NTSC |
| Scanning System | 2:1 Interface |
| Image Device | 1/2.9″ Sony CMOS (2441+IMX323) Low Illumination |
| Scanning Frequency | 50Hz (PAL) / 60Hz (NTSC) |
| Synchronisation | Internal |
| Effective Pixels | 2.0 Megapixel (1920×1080) |
| Video Output | AHD (1.0VP) |
| Color | Color to B/W (External Drive) |
| S/N Ratio | ≥41db |
| Min Illumination | 0.01 LUX (0 LUX IR ON) |
| IR LEDs | No IR |
| Lens | Fixed 3.6mm 3 Megapixel Lens |
| OSD | Supported by OSD toggle |
| E-Shutter | 1/50-1/100,000s |
| Operation Temperature | -30 to +60 degrees |
| Storage Temperature | -40 to +80 degrees |
| Input Voltage/Current | DC12V |
| Storage Humidity | Indoor 85% RH (No condensation) |
| Power | Max 500mA |
