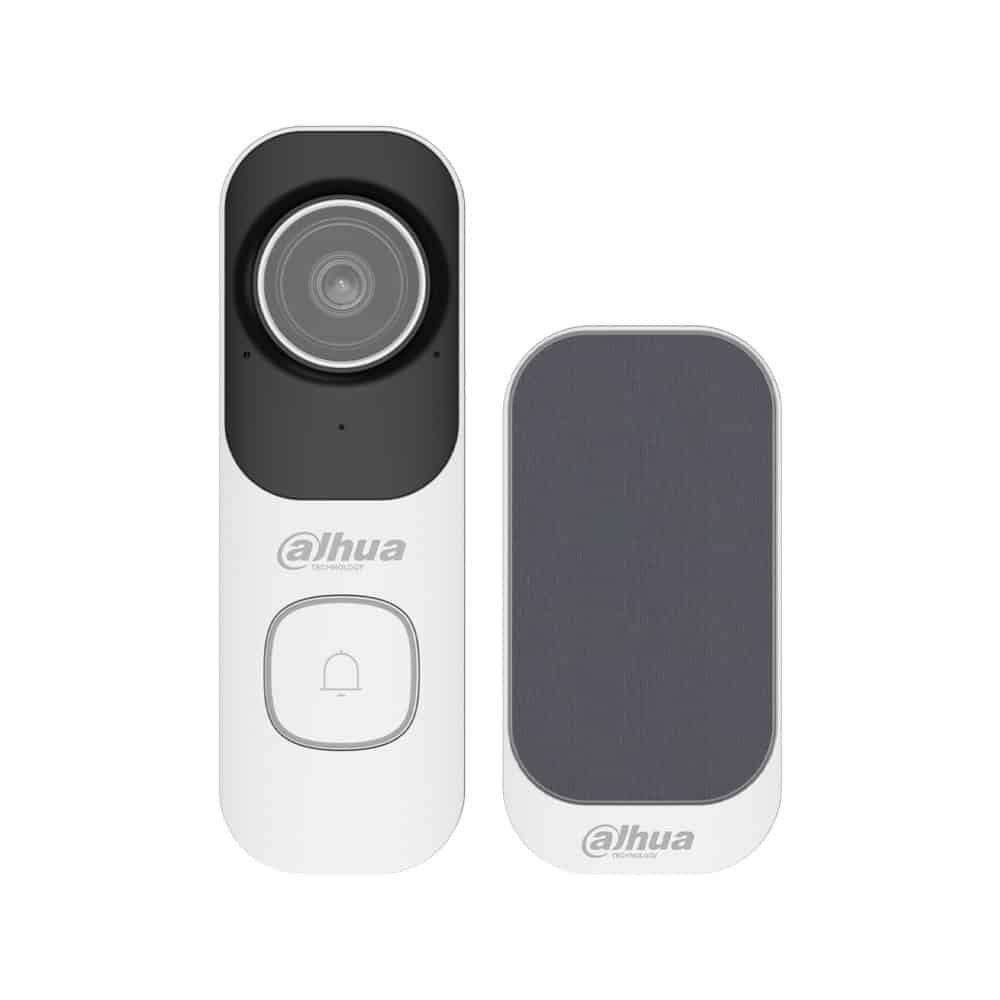

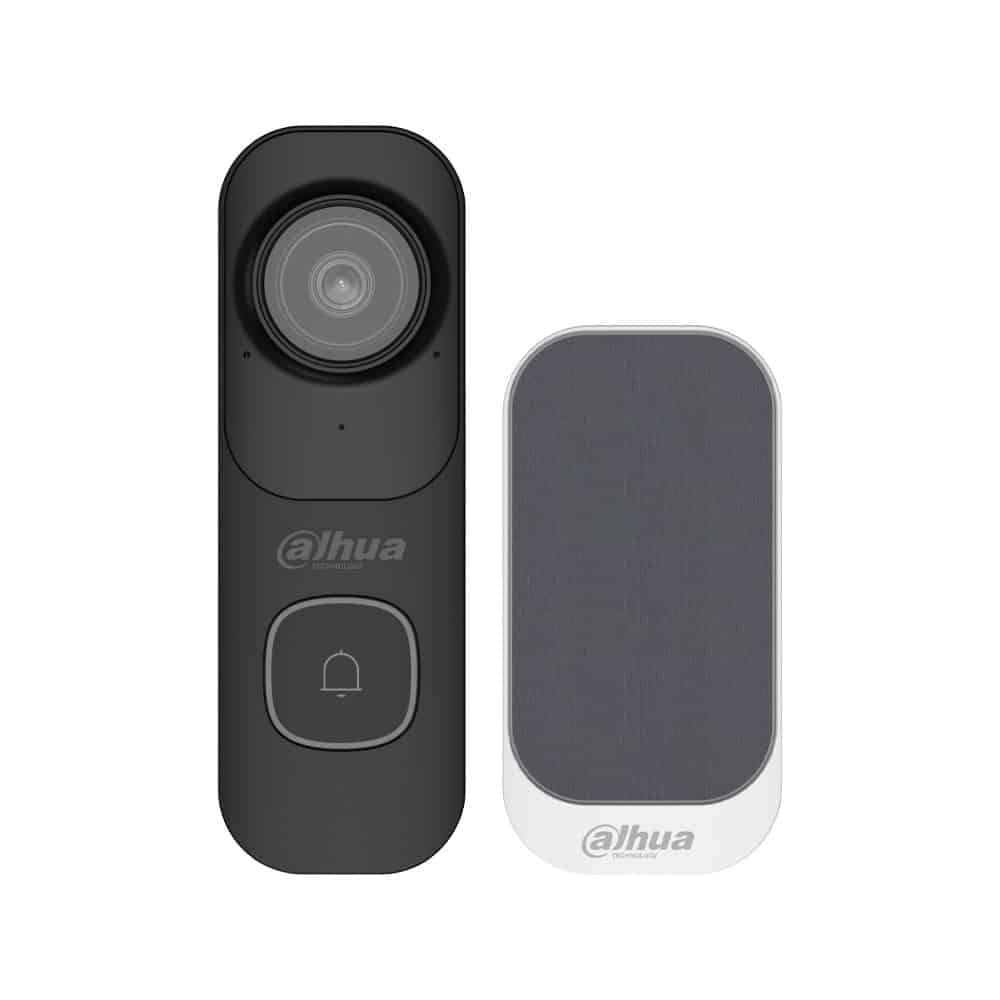

Dahua 4MP WiFi Video Doorbell & Plug-in Chime Kit

Dahua Doorbells

Dahua 4MP WiFi Video Doorbell & Plug-in Chime Kit

Name: Dahua 4MP WiFi Video Doorbell &amp; Plug-in Chime Kit
Brand: Dahua
SKU: DH-VDKP01
Availability: InStock

2-Way Audio

If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products

In stockSKU: DH-VDKP01

Features

High-Resolution Imaging: 4MP camera with ultra-wide fisheye lens and up to 10m IR night vision
Smart Detection: AI human & vehicle recognition with abnormal sound alarms for enhanced security
Two-Way Audio: Built-in microphone and speaker allow proactive bidirectional calls anytime, anywhere
Efficient Compression: H.265 technology reduces bandwidth and storage needs
Local Storage Support: MicroSD card slot (up to 256GB)
Connectivity: Wi-Fi 6 support and Bluetooth pairing for easy installation
Smart Control: Managed through the Dahua DMSS app for remote access and instant alerts
Power: Using either a 5V USB (2A) connection or a 10-24V DC / 14-24V AC power source through the screw terminals

Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
Express delivery 1-2 working days
Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
+44 (0) 121 655 014610:00 - 17:00 Mon-Fri

Delivery Policy Returns Policy

Description

The Dahua Wireless Video Doorbell is designed to enhance home and business security with smart features and clear imaging. Equipped with a 4MP camera and an ultra-wide fisheye lens, it captures more detail than conventional fixed-lens doorbells, ensuring nothing goes unseen.

With AI-powered human and vehicle detection, and two-way audio, you can visually confirm and communicate with visitors directly through your smartphone. Built on Wi-Fi 6 (2.4 GHz) for reliable connectivity, this smart doorbell also supports Bluetooth pairing for quick setup and seamless integration with the Dahua DMSS app.

Doorbell Specifications

Image Sensor	1/3″ CMOS
Max. Resolution	2560 (H) × 1440 (V)
Illumination Distance	Up to 10 m (32.81 ft) (IR)
Illuminator Number	2 (IR LED)
Lens Type	Fixed-focal
Focal Length	2.3 mm
Max. Aperture	F2.2
Field of View	H: 120°; V: 66°; D: 143°
Intelligence
Human Detection	Yes
Vehicle Detection	Yes
Audio and Video
Video Compression	H.265; H.264; H.264H; H.264B
Video Frame Rate	Main stream: 2560 × 1440@(1–15 fps)/1920 × 1080@ (1–15 fps)/1280 × 720@(1–15 fps) Sub stream: 640 × 360@(1–15 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Video Bit Rate	H.264: 32 kbps–8192 kbps; H.265: 32 kbps–8192 kbps
Day/Nigh	Auto(ICR)/Colour/B/W
WDR	DWDR
Motion Detection	OFF/ON (4 areas, rectangular)
Image Rotation	0°/180°
Built-in MIC	Yes, built-in microphone
Built-in Speaker	Yes, built-in speaker
Audio Compression	G.711a; G.711Mu; PCM
Network
Wi-Fi	IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
Wi-Fi Pairing	Bluetooth pairing
Storage	Micro SD card (support max. 256 GB)
Management Software	DMSS
Mobile Client	Android; iOS
General
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU
Power Supply	USB (5 VDC±5%, 2 A) or binding post power supply (10–24 VDC/14–24 VAC, 1.0 A).
Power Consumption	Basic: 1.7 W (5 VDC); 2.1 W (10–24 VDC); 2.2 W (14–24VAC, active power) Max.: 5.3 W (5 VDC); 6.8 W (10–24 VDC); 6.8 W (14–24 VAC, active power) (IR + white light + alarm on)
Operating Temperature	–20 °C to +55 °C (–4 °F to +131 °F)
Operating Humidity	≤95% (RH), non-condensing
Protection	IP65
Camera Button	One-click Call Button
Casing Material	Plastic
Product Dimensions	135 mm × 45 mm × 24.2 mm (5.31″ × 1.77″ × 0.95″) (L × W × H)
Net Weight	0.11 kg (0.24 lb)

Chime Specifications

Audio
Built-in Speak	Built-in Speak
Network
Management Software	DMSS
Wi-Fi	IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
Network Update	Yes
Power
Power Supply	100–240 VAC 50/60 Hz
Power Consumption	< 5 W
Structure
Appearance Colour	Grey
Net Weight	0.1 kg (0.22 lb)
Gross Weight	0.2 kg (0.44 lb)
Casing Material	Plastic + Cloth
Product Dimensions	Bare machine: 96 mm × 50 mm × 30.3 mm (3.78″ × 1.97″× 1.19″) (L × W × H)
Environment
Operating Temperature	–10 °C to +45 °C (14 °F to +113 °F)
Operating Humidity	20%–95% (RH), non-condensing
Certification
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU
