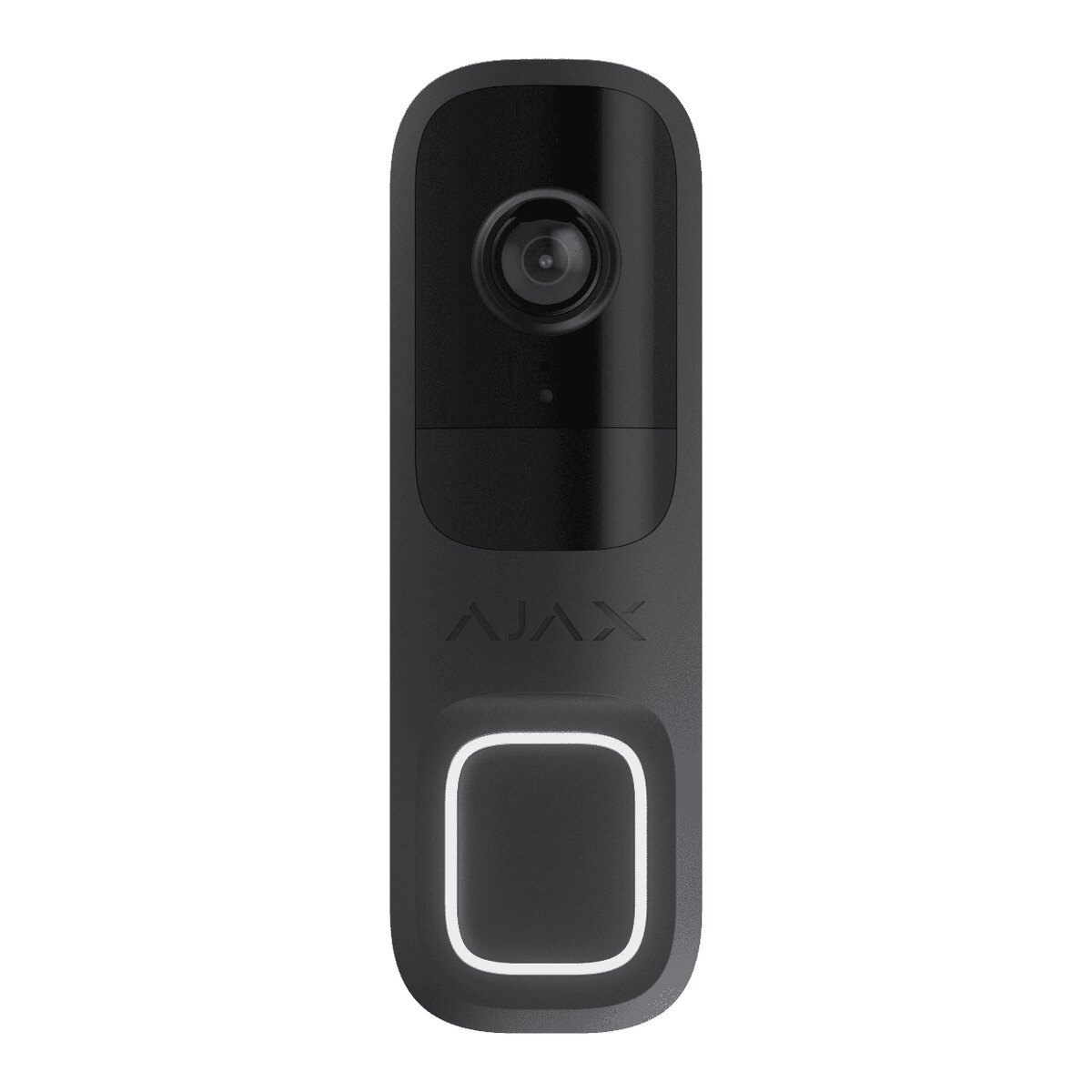

Ajax Video Doorbell with AI and PIR Sensor, Graphite

If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products

In stock

Wi-Fi

Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
Express delivery 1-2 working days
Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
+44 (0) 121 655 014610:00 - 17:00 Mon-Fri

Description

An Ajax video doorbell. See and speak to whoever is at the door from your phone, wherever you are.

Key features

Wi-Fi

Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.

Specifications

Video stream
Camera	4 MP CMOS sensor
Resolution	up to 2688 x 1520 px
Camera viewing angles	horizontal: 155° vertical: 90°
Video protocol	JetSparrow Fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
Storage options	Ajax Cloud (coming soon) NVR
Video codec	H.264
Dynamic range	HDR Improves the accuracy of detail in bright and dark scenes
Communication channel
Wi-Fi	802.11 b/g/n module 2.4 GHz, up to 2 Mbit/s.
Jeweller and Wings communication technologies	Proprietary wireless communication technologies to transmit commands, alarms, events, and photo verifications. They serve as a backup communication channel when the device is added to the hub.
Key features
Two-way communication	Clear and loud voice communication between users and visitors near the device.
Motion detection	The device detects movement using a built-in PIR sensor and software image frame analysis.
Object detection	using AI People. Pets. Vehicles.
Smart IR illumination	up to 6 m Automatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low-light conditions.
Visual verification of Ajax alarms	The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app.
Microphone	For two-way communication and sound recording at the site.
Audio codec	G722
Audio processing	Always active noise suppression and echo cancellation.
PIR detection
Sensitive elements	1 x PIR sensor
Motion detection distance	up to 4 m Depends on the sensitivity level adjusted in the device settings.
Motion detection angle	horizontal: 120° vertical: 100°
Sensitivity	3 levels Adjusted by a PRO or a user with admin rights in Ajax apps.
Installation recommendations	It is recommended to install the device at a height of 1.2€“1.5 m. The device is designed for outdoor and indoor use. It is not recommended to install the device in direct sunlight. This may cause overheating and damage to the device's electrical components.
Sabotage protection
Tamper alarm	Notifications of attempts to remove the device from the mounting panel.
Holding screw	secures the device on SmartBracket
mTLS	Encrypted connection for data protection.
Authentication	via Ajax Cloud Without local access rights.
Secure Boot	Protection against firmware spoofing.
OTA signature verification	Secure automatic firmware update.
Privacy	Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop.
Communication loss detection	Wi-Fi: can be set from 30 s Jeweller/Wings: after 36 s Detection time depends on Ajax Cloud connection and Jeweller or Jeweller/Fibra settings.
Power supply
Device power consumption	10 W
Main DC voltage range	12€“24 VŽ“
Main AC voltage range	16€“24 V~, 50/60 Hz
Battery	built-in rechargeable battery: Li-ion 600 mÐh Intended to heat the device in a cold climate and provide a backup power supply for short periods.
Enclosure
Dimensions	145 x 47 x 34 mm
Weight	163 g
Operating temperature range	from ˆ’25 °C to +60 °C
Operating humidity	up to 90%
Protection class	IP54
Colour	White, Grey, Graphite, Black
Complete set	DoorBell SmartBracket mounting panel Wedge bracket (2 pcs) BellKit (for connection to a wired chime) Installation kit Quick start guide
