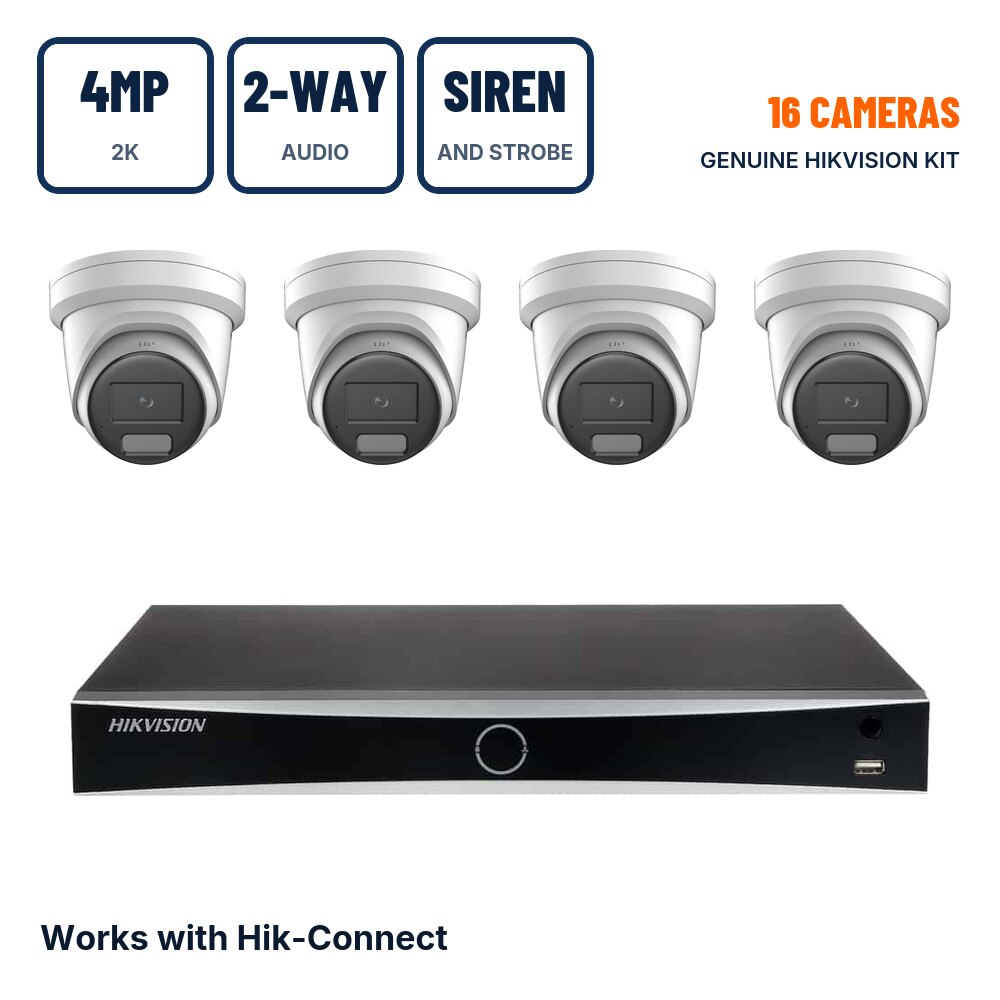

Hikvision 16 Camera 4MP LiveGuard Smart Hybrid Light ColorVu PoE CCTV Kit with 2-Way Audio

Sixteen genuine Hikvision 4MP cameras on one PoE recorder. A sensible spec for a larger site where you want coverage everywhere without filling drives at 8MP.

Each camera is a DS-2CD2347G3-LIS2UY/SL LiveGuard turret with Smart Hybrid Light and ColorVu 3.0, so night footage stays in colour. You can speak through any of them from your phone. The strobe and siren are there for anyone who ignores that. Choose 2.8mm in white or black, or 4mm in white.

The recorder is the DS-7616NXI-K2/16P, a 4K AcuSense NVR with sixteen PoE ports and two hard drive bays.

Each camera draws up to 15.5W with light and siren on together. Sixteen of them adds up, so send us the cable lengths and we will check the PoE budget before you order.

Pick a size in the hard drive list and we fit it and test it before the kit is sent. Junction boxes and cable are optional extras further down the list, so add them if you need them and skip them if you already have them.

About the camera: DS-2CD2347G3-LIS2UY/SL

4MP on the same large 1/1.8-inch sensor as the 8MP model. Fewer pixels on the same sensor means bigger pixels, and Hikvision rates this one darker still: 0.0001 lux in colour. The 2.8 mm lens gives a 111° view, wide enough to cover a driveway from the corner of the house.

Smart Hybrid Light reaches up to 30 m. LiveGuard adds a 2 W speaker and a flashing white strobe, both triggered from a line or zone you draw in Hik-Connect and filtered to people or vehicles. Twin microphones and the speaker give two-way audio, so you can talk to a delivery driver from your phone.

What is in the kit

The CCTV101 OEM Hikvision 16-camera kit is the lower-cost version with 5MP cameras from a separate range.
