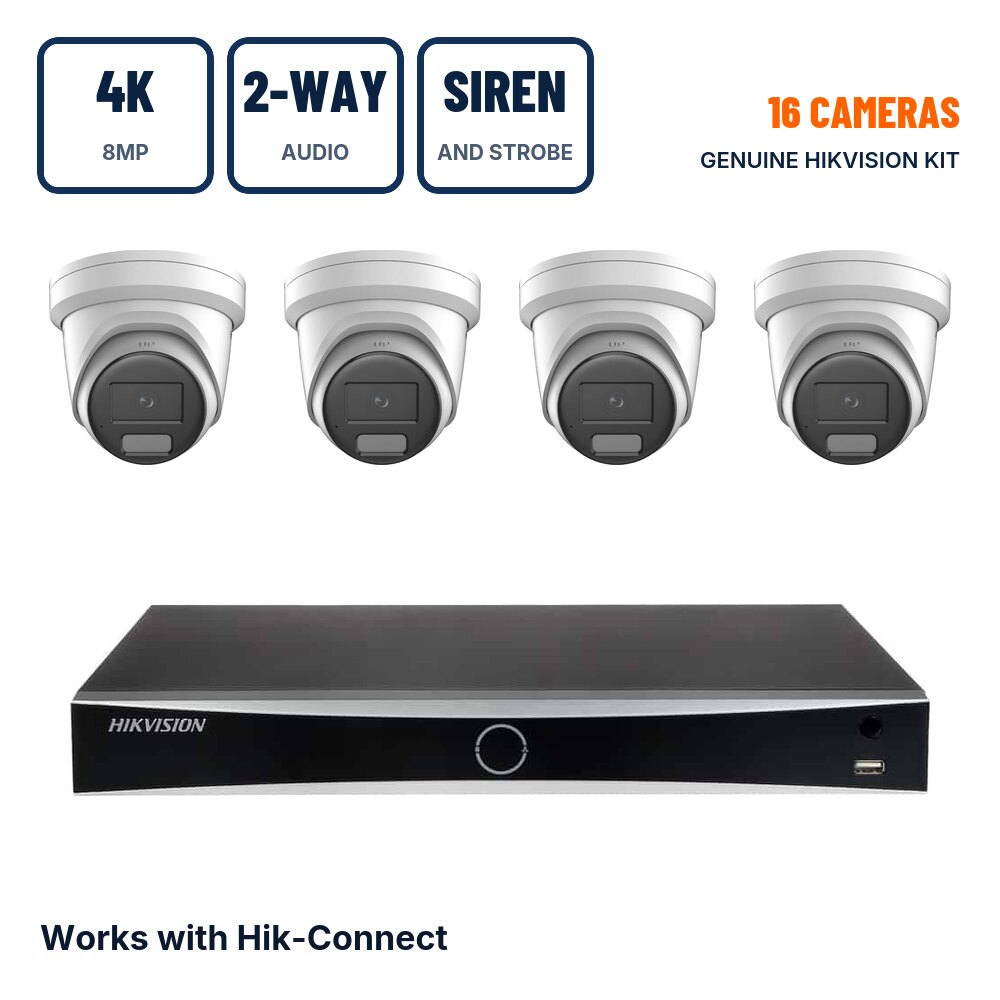

Hikvision 16 Camera 8MP (4K) LiveGuard Smart Hybrid Light ColorVu PoE CCTV Kit with 2-Way Audio

Sixteen genuine Hikvision 8MP cameras on one 16-port PoE recorder. Big site, one box.

Every camera is a DS-2CD2387G3-LIS2UY/SL from the LiveGuard range, with Smart Hybrid Light and ColorVu 3.0 for colour at night. Talk through any of them from Hik-Connect. If someone walks into a zone you have drawn, the strobe and siren can go off, which usually ends the visit early. Choose 2.8mm in white or black, or 4mm in white, camera by camera.

The recorder is the DS-7616NXI-K2/16P, a 4K AcuSense NVR with sixteen PoE ports and two hard drive bays. Two drives means more days of footage before it starts recording over the oldest.

Sixteen cameras with lights and sirens is a real power load. Send us the cable lengths before you order and we will check the PoE budget. Sometimes a separate PoE switch for the far cameras is the better answer.

Pick a size in the hard drive list and we fit it and test it before the kit is sent. Junction boxes and cable are optional extras further down the list, so add them if you need them and skip them if you already have them.

About the camera: DS-2CD2387G3-LIS2UY/SL

8MP (3840 × 2160) on a large 1/1.8-inch sensor behind an F1.0 lens. That pairing is what lets ColorVu 3.0 keep a colour picture in very little light: Hikvision rates it at 0.0005 lux. At 2.8 mm it will identify a face at about 8 m and detect a person at about 89 m.

Smart Hybrid Light covers the dark, with white light and infrared reaching up to 30 m. The LiveGuard side is the speaker and the strobe. The 2 W speaker (110 dB at 10 cm) works with twin microphones for two-way audio, and a flashing white strobe can join it as a warning. Both are triggered by a line or zone you draw in Hik-Connect, filtered to people or vehicles, so the cat stays off the list.

What is in the kit

The CCTV101 OEM Hikvision 16-camera 8MP kit is the lower-cost version. It is a separate range with its own part numbers.
