Hikvision 16CH 8MP/4K AcuSense 5-in-1 HD CCTV DVR Recorder iDS-7316HUHI-M4/S

16-channel 5-in-1 HD recording up to 8MP/4K
AcuSense human and vehicle alerts that cut false alarms
1080p HDMI output for a local monitor
4 SATA bays, up to 12TB per drive

Description

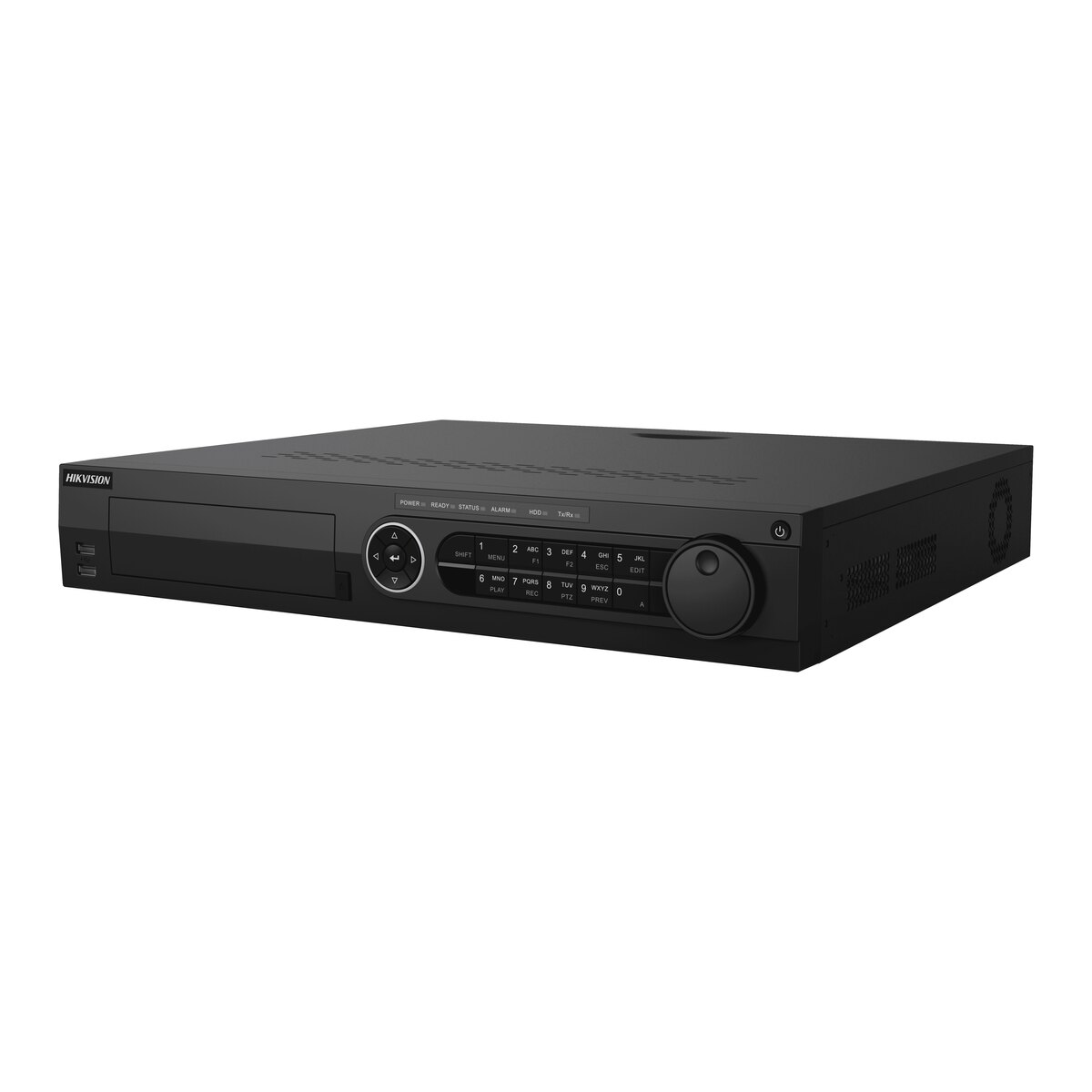

The Hikvision iDS-7316HUHI-M4/S is an 16-channel Turbo HD digital video recorder for HD-TVI, AHD, HD-CVI and analogue cameras, with extra channels for IP cameras.

AcuSense filters motion alerts down to people and vehicles, so a swaying tree or passing cat no longer fills your phone with notifications. It takes 4 SATA hard drives of up to 12TB each. No hard drive is included: choose one from our surveillance hard drives.

Key features

16-channel 5-in-1 HD recording up to 8MP/4K
AcuSense human and vehicle alerts that cut false alarms
1080p HDMI output for a local monitor
4 SATA bays, up to 12TB per drive
H.265+ compression for longer recording on the same storage
Free Hik-Connect app for live view and playback on your phone

Need cameras to go with it? See our analog cameras, or send us a message with your camera count and we will check compatibility.

Specifications

Recording
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate	Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate	32 Kbps to 10 Mbps
Dual-stream	Support
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Video and Audio
IP Video Input	18-ch (up to 34-ch) Up to 12 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input	16-ch BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
HDTVI Input	8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD Input	5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30
HDCVI Input	4 MP, 720p25, 720p30, 1080p25, 1080p30
CVBS Input	PAL/NTSC
CVBS Output	1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI 1 Output	1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI 2 Output	1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA Output	1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Video Output Mode	HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Audio Input	4-ch, RCA (2.0 Vp-p, 1 KO)
Audio Output	2-ch, RCA (Linear, 1 KO)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KO) (independent)
Network
Total Bandwidth	320 Mbps
Remote Connection	128
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF, SNMP
Network Interface	2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA	4 SATA interfaces
eSATA	Support
Capacity	Up to 12 TB capacity for each disk
Serial Interface	RS-232, RS-485 (full-duplex), keyboard
Alarm In/Out	16/4
USB Interface	Front panel: 2 x USB 2.0 Rear panel: 1 x USB 3.0
General
Power Supply	100 to 240 VAC, 50 to 60 Hz
Consumption	= 35 W (without HDD)
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Dimension (W x D x H)	445 x 400 x 71 mm (17.5 x 15.7 x 2.8 inch)
Weight	= 5 kg (without HDD, 11.0 lb.)
