Hikvision 16CH 8MP/4K AcuSense 5-in-1 Power-over-Coax HD CCTV DVR Recorder iDS-7216HUHI-M2/PXT
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- 16-channel 5-in-1 HD recording up to 8MP/4K
- Power-over-Coax for compatible Turbo HD cameras
- AcuSense human and vehicle alerts that cut false alarms
- 4K HDMI output for a local monitor
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description

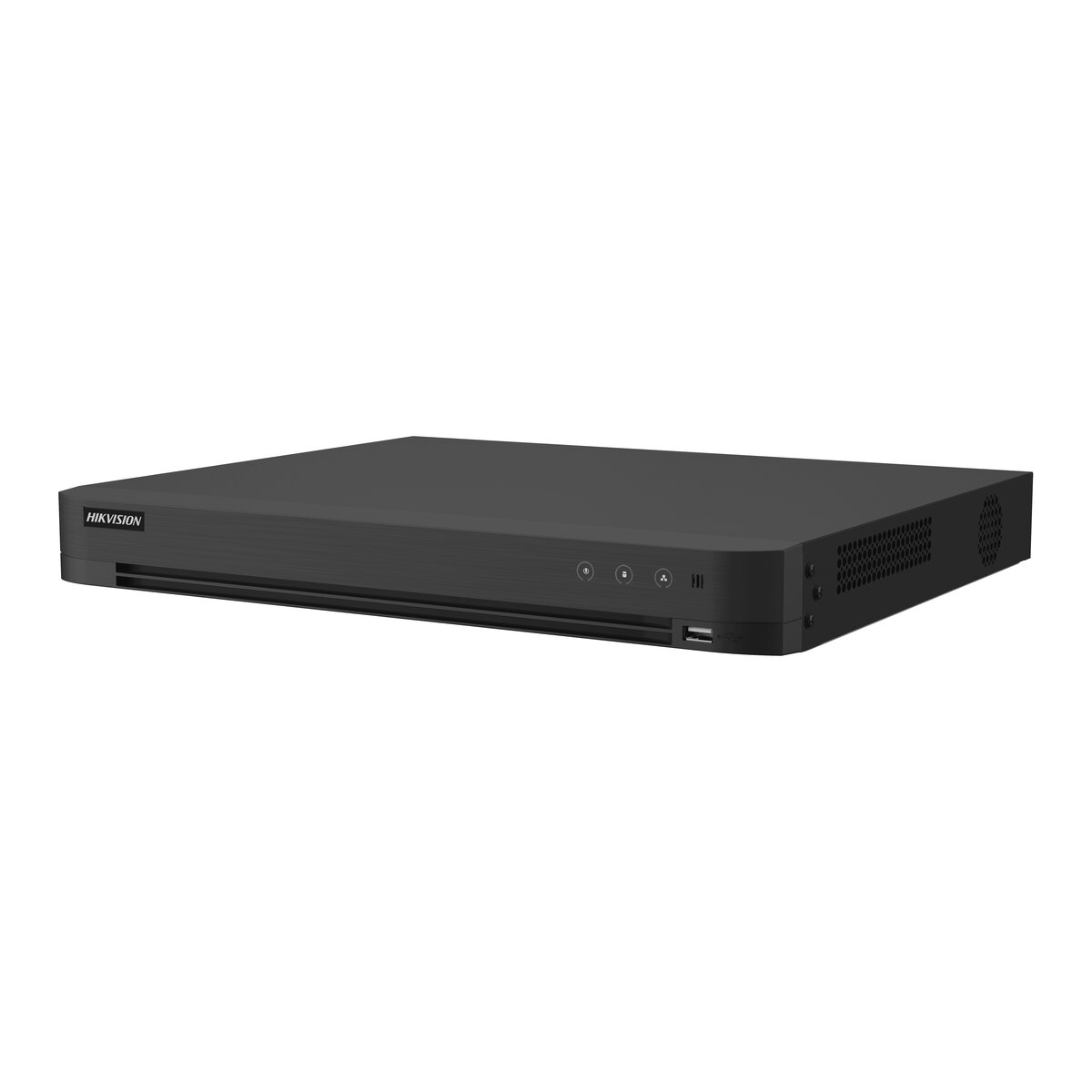

The Hikvision iDS-7216HUHI-M2/PXT is an 16-channel Turbo HD digital video recorder for HD-TVI, AHD, HD-CVI and analogue cameras, with extra channels for IP cameras, with Power-over-Coax so compatible cameras take power down the coax.
AcuSense filters motion alerts down to people and vehicles, so a swaying tree or passing cat no longer fills your phone with notifications. It takes 2 SATA hard drives of up to 12TB each. No hard drive is included: choose one from our surveillance hard drives.
Key features
- 16-channel 5-in-1 HD recording up to 8MP/4K
- Power-over-Coax for compatible Turbo HD cameras
- AcuSense human and vehicle alerts that cut false alarms
- 4K HDMI output for a local monitor
- 2 SATA bays, up to 12TB per drive
- H.265+ compression for longer recording on the same storage
- Free Hik-Connect app for live view and playback on your phone
Need cameras to go with it? See our analog cameras, or send us a message with your camera count and we will check compatibility.
Specifications
| Facial Recognition | |
|---|---|
| Face Picture Library | Up to 16 face picture libraries; HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash. |
| Face Picture Comparison (Captured from Camera) | 4-ch face picture comparison alarm (HD analogue camera) |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analogue channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 8-ch (advanced model) |
| Facial Detection | |
| Facial Detection and Capture | Face picture detection, face picture searchï¼› 4-ch face picture capture |
| Video and Audio | |
| IP Video Input | 16-ch (up to 32-ch), each up to 8MP |
| Analog Video Input | 16-ch BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection |
| PoC Camera Input | Support Hikvision PoC camera |
| HDMI Output | 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| HDTVI Input | 8 MP(3840 x 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 8 MP(3840 x 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| Audio Output | 1-ch, RCA (Linear, 1 KO) |
| Audio Input | 4-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KO), 16-ch via coaxial cable |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KO) (using the audio input) |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Decoding | |
| Decoding Capability | up to 24-ch 1080P@30fps |
| Network | |
| Total Bandwidth | 256 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF, ISUP |
| Remote Connection | 128 |
| Network Interface | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 12 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 x USB 2.0 Rear panel: 2 x USB 3.0 |
| Alarm In/Out | 4/1 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | = 20 W (without HDD) |
| Working Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W x D x H) | 384 x 313 x 52 mm (15.1 x 12.3 x 2.0 inch) |
| Weight | = 2.1 kg (4.6 lb) |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Features | AI Person/Vehicle Detection, PoC (Power over Coax) |
| Resolution | 8 MegaPixel |
| Technology | 5-in-1 |
| HDD Bays | 2 HDD Bays |
| Channels | 16 Channel |
