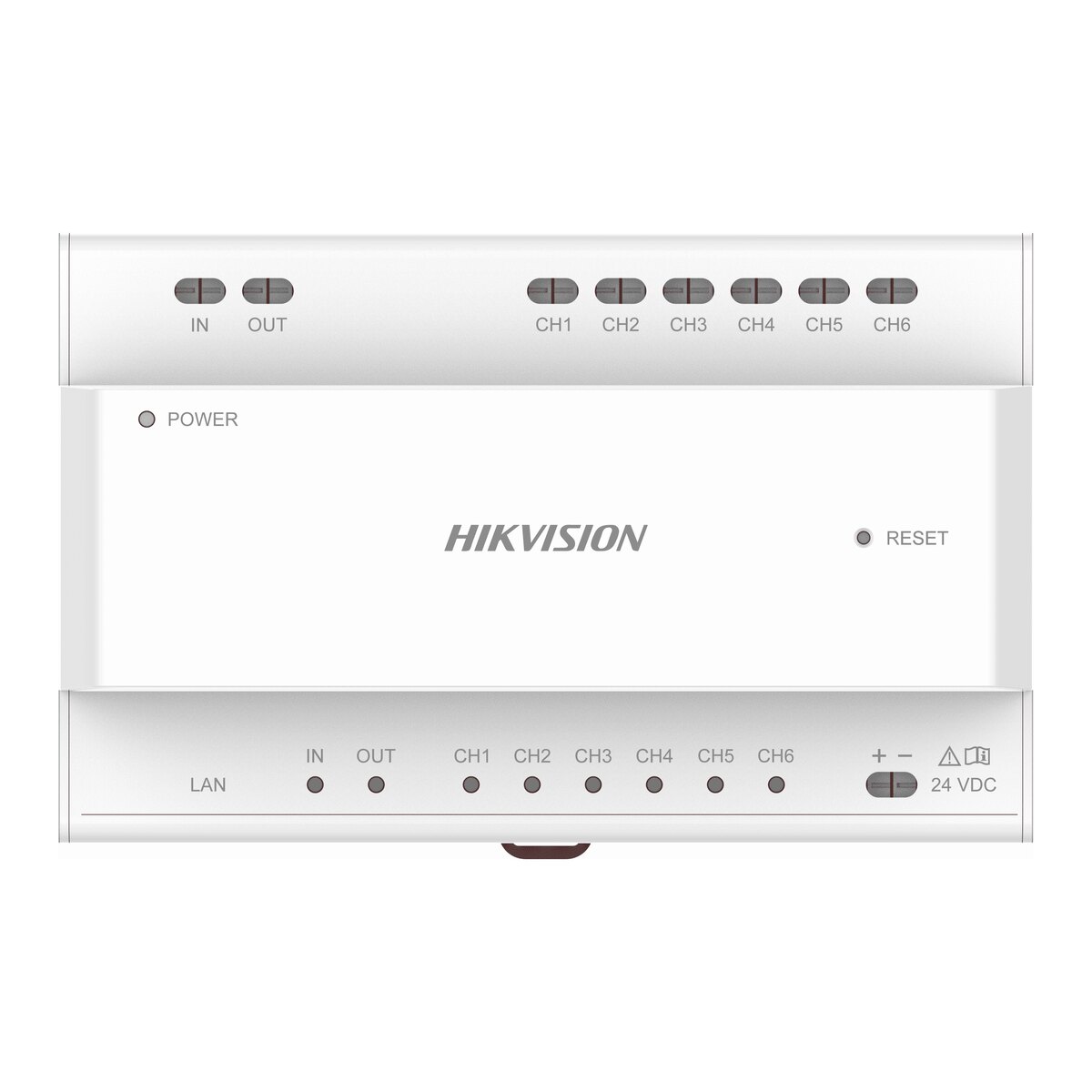

Hikvision 2-Wire IP Intercom Master Distributor DS-KAD706Y-S(O-STD)

Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
Power: 24 VDC

Description

A distributor for Hikvision's two-wire intercom range. It links door stations and indoor stations so power, audio and video travel on the same pair of wires.

Key features

Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
Power: 24 VDC

Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.

Specifications

Device interfaces
Network interface	1 RJ45
Two-wire interface	8 (2 for cascading, 6 for device without power)
Signal indicator	8
Power indicator	1
Reset	1
General
Power supply	24 VDC
Power consumption	NA
Working temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working humidity	10% to 90%
