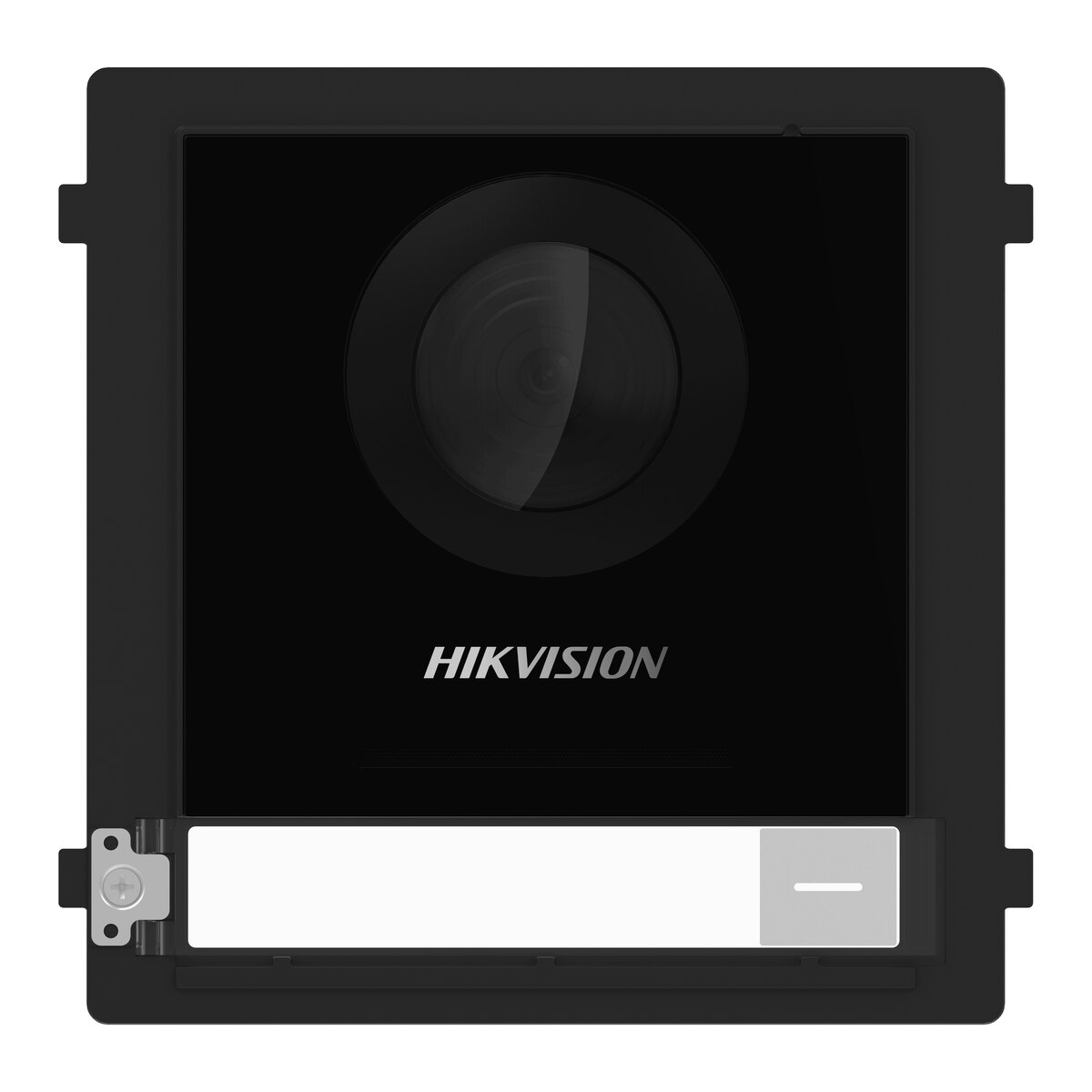

Hikvision 2MP 2-Wire IP Modular Video Door Station DS-KD8003Y-IME2

2MP (1080p) camera
Infrared night vision
IP65 weatherproof
Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)

Description

A video door station for Hikvision's 2-wire IP intercom range. Visitors press the call button and you answer from an indoor station or from the Hik-Connect app on your phone.

Key features

2MP (1080p) camera
Infrared night vision
IP65 weatherproof
Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Works with the Hik-Connect app

Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.

Specifications

Display parameters
Operation method	Physical button
Video parameters
Supplement light	IR supplement
Lens	1
FOV	Horizontal 180°, vertical 96°
Pixel	Main stream: 1920 x 1080, (720p configurable)Í–; sub stream: 720 x 480
Audio parameters
Audio quality	Noise suppression and echo cancellation
Capacity
Sub door station capacity	16
Network parameters
Communication protocol	TCP/IP, RTSP
Wired network	Two-wire transmission
Device interfaces
Exit button	2
Lock control	2
Door contact input	2
Power interface	1
General
Button	1
Installation	Wall mounting
Protective level	IP65
Power supply method	24 VDC two-wire power supply (< 16 W) or 12 VDC independent power supply (< 20 W)
Working temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Working humidity	10% to 95%
Dimensions	98 mm x 99.8 mm x 43.9 mm (3.86" x 3.93" x 1.73")
Application environment	Outdoor
Power consumption	4 W
Language	English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
