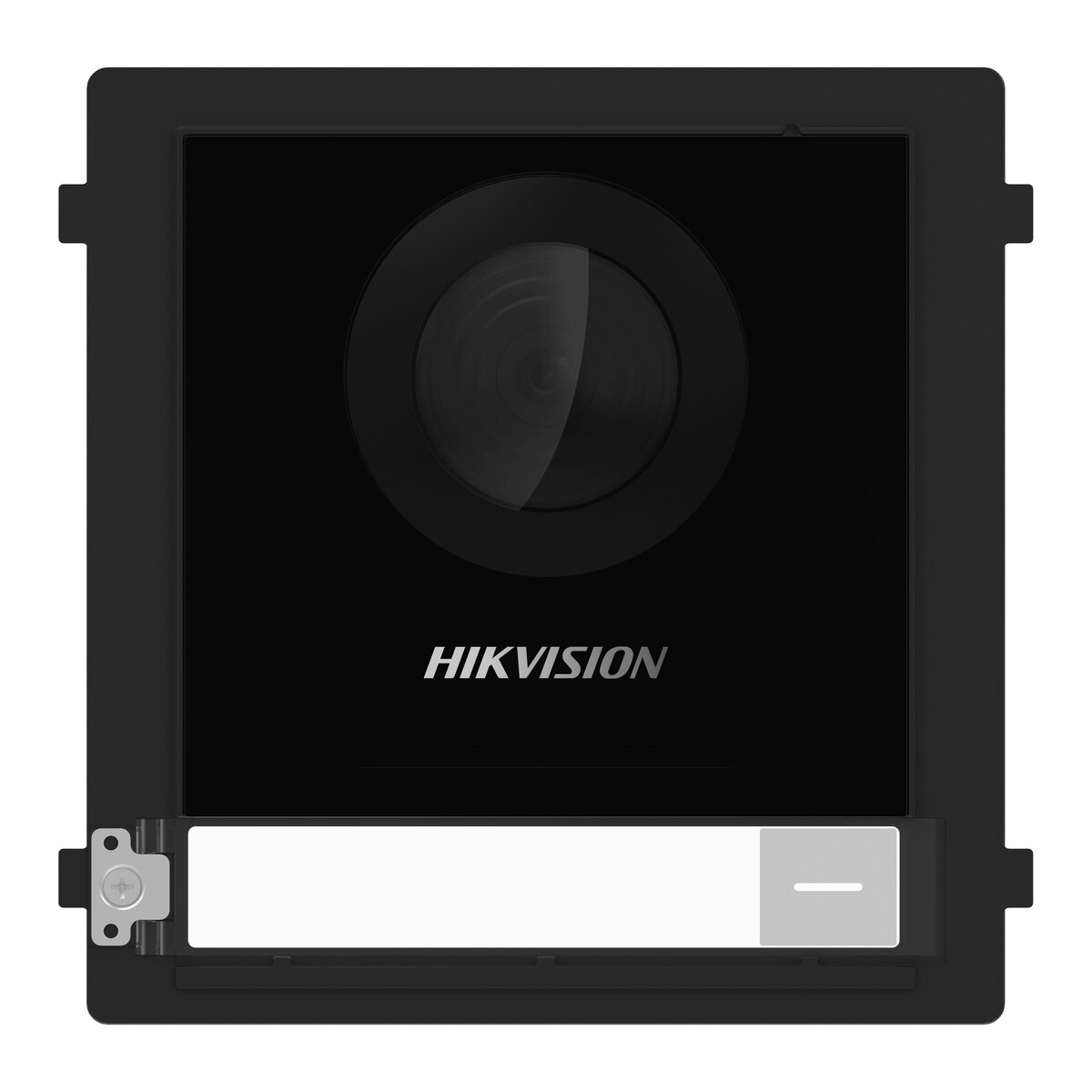

Hikvision 2MP IP Modular Video Door Station, 1 Button DS-KD8003-IME1(B)

2MP (1080p) camera
Infrared night vision
Powered over the network cable (PoE)
1 call button

Description

A video door station for Hikvision's IP intercom range. Visitors press the call button and you answer from an indoor station or from the Hik-Connect app on your phone.

Key features

2MP (1080p) camera
Infrared night vision
Powered over the network cable (PoE)
1 call button
IP65 weatherproof
Working temperature: -40° C to +55° C (-40° F to 131° F)

Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.

Specifications

System parameters
Processor	Embedded MCU Processor
Operation system	Embedded Linux Operation System
Video parameters
Supplement light	IR Supplement
Video compression standard	H.264
Audio parameters
Audio input	Built-in Omnidirectional Microphone
Audio output	Built-in Loudspeaker (More than 85 dB within 20 cm)
Audio compression bitrate	64 Kbps
Audio quality	Noise Suppression and Echo Cancellation
Network parameters
Ethernet	10/100 Mbps Self-Adaptive Ethernet
Network protocol	TCP/IP, RTSP
Device interfaces
Alarm input	Tampering Alarm
I/O input	4
I/O output	2
General
Power supply	12 VDC/PoE (IEEE 802.3af)
Power consumption	4 W
Working temperature	-40° C to +55° C (-40° F to 131° F)
Working humidity	10% to 95%
Protective level	IP65
Dimensions (L x W x H)	98 mm x 99.8 mm x 43.9 mm (3.86" x 3.93" x 1.73")
Language	English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
