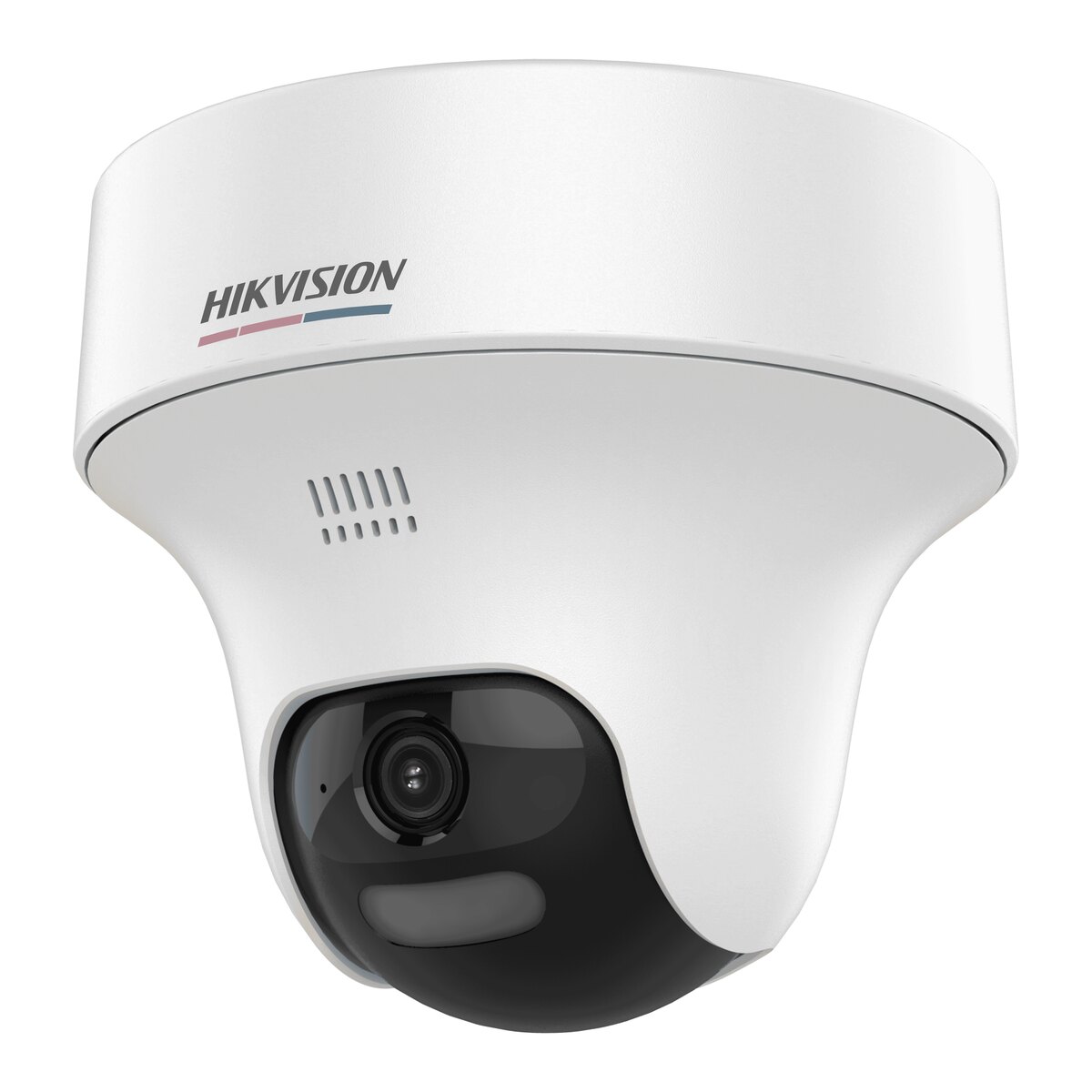

Hikvision 2MP Smart Dual-Light Turbo HD Turret Camera with Mic 2.8mm DS-2CE70DF3T-PTLXTS

Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Lens Type: 2.8 mm, 3.6 mm fixed focal lens

Login to view Price SKU: DS-2CE70DF3T-PTLXTS(2.8mm) Category: Analog CCTV Cameras Tags: Dual Illumination, Microphone Brand: Hikvision

Description

The Hikvision DS-2CE70DF3T-PTLXTS is a 2MP turret Turbo HD camera with a 2.8mm lens. It watches in infrared and can switch to white light when someone is detected, so the footage turns to colour when it matters. A built-in microphone records sound with the video. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Lens Type: 2.8 mm, 3.6 mm fixed focal lens
Lens Mount: M12
Audio Function: Echo Cancellation, AI Noise Reduction, Automatic Gain Control

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	2 MP CMOS
Max. Resolution	1920 (H) × 1080 (V)
Min. Illumination	0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night	ICR
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Signal System	PAL/NTSC
Slow Shutter	Max. 16 times
Lens
Lens Type	2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°
Lens Mount	M12
Microphone
Pickup Distance	In a radius of up to 5 m
Amount	1
Speaker
Rated Power	2 W
Speaker Range	In a radius of up to 5 m
Functions
Audio Function	Echo Cancellation, AI Noise Reduction, Automatic Gain Control
Illuminator
Supplement Light Type	Smart, IR, White Light
Supplement Light Range	IR: Up to 25 m,White Light: Up to 20 m
Image Parameters Switch	STD/HIGH-SAT/HIGHLIGHT
Image Settings	Brightness, Contrast, Sharpness, Anti-banding, AGC
Frame Rate	TVI: 1080p @25 fps/30 fps
Day/Night Mode	Auto/Color
Wide Dynamic Range (WDR)	=120 dB
Image Enhancement	WDR,BLC,HLC,Global,HLS
Noise Reduction	3D DNR
White Balance	Auto,Manual
Interface
Video Output	1 HD analog output
Event
Light Alarm	Flashing Light Alarm (Red and Blue)
Audible Alarm	Yes
General
Power	12 VDC ± 25%, max. 12.8 W *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), an 18 VDC adapter is required.
Material	Plastic
Dimension	Ø123.75 mm × 110.79 mm (Ø4.87" × 4.36")
Weight	Approx. 350 g (0.77 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
