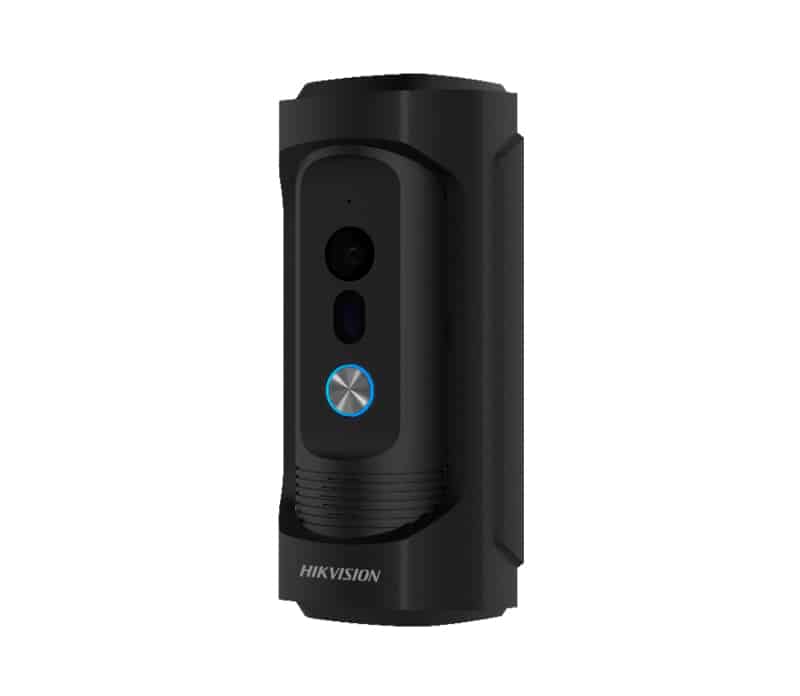

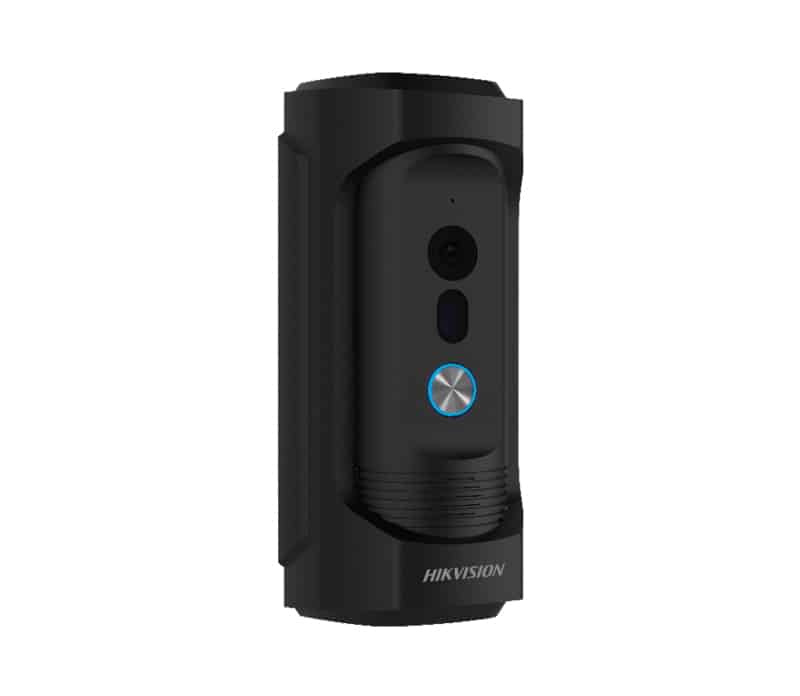

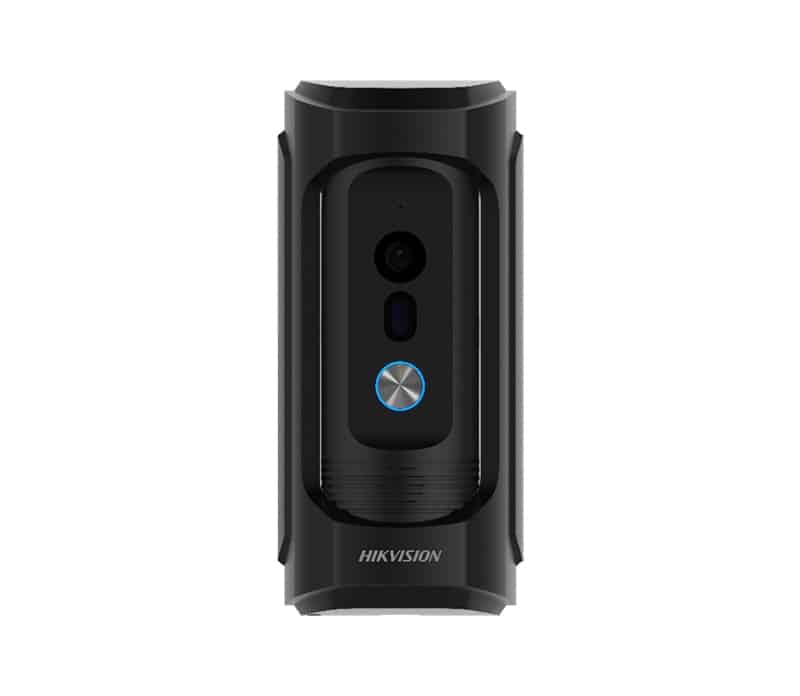

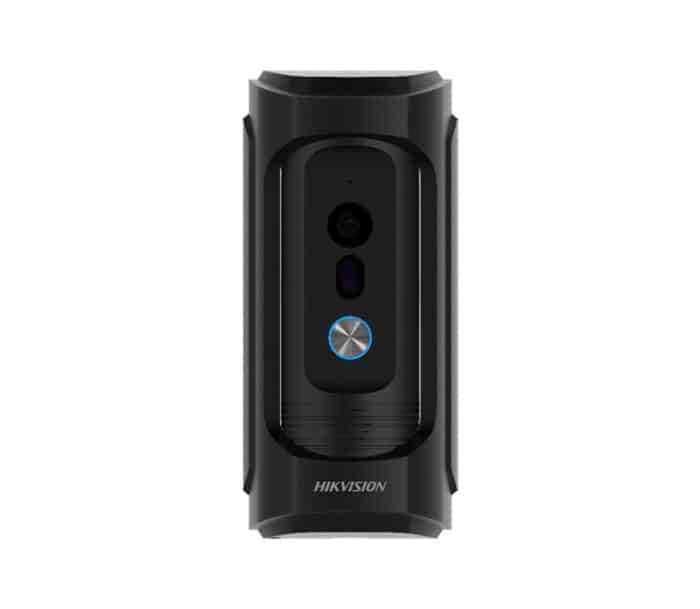

Hikvision 2MP Vandal Resistant Video Door Station DS-KB8113-IME1(B)
Login for Price
Hikvision Vandal Resistant Video Doorbell, 2 MP, 95° FOV, H.264, IP65, IK09, 12 VDC/PoE
Description
- Call the mobile APP directly
- Remote unlocking via the indoor station or the mobile APP
- 2 MP HD Camera with IR supplement
- Standard PoE (802.3af)
- Noise suppression and echo cancellation
- Configuration remotely via Web
| System parameters | |
| Operating system | Embedded Linux operation system |
| ROM | 32 M |
| RAM | 256 M |
| CPU | Embedded MCU Processor |
| Video parameters | |
| Lens | 1 |
| Resolution | Main stream : 1920 × 1080
Sub stream : 640 × 480 |
| FOV | Horizontal:95 °
Vertical:54 ° |
| WDR | Support |
| Supplement light | IR supplement |
| Video compression standard | H.264 |
| Audio parameters | |
| Audio compression standard | G.711 U，G.711 A |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (More than 80 dB within 30 cm) |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Linked indoor station capacity | 1 |
| Sub door station capacity | 16 |
| Network parameters | |
| Network protocol | TCP/IP, RSTP, SIP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Device interfaces | |
| Alarm input | 1 |
| Debugging port | 1 |
| Network interface | 1 |
| Lock control | 1 (1 relay, max to 30 VDC, 2 A) |
| Power interface | 1 |
| General | |
| Button | 1 |
| Power supply | IEEE802.3af, standard PoE or
12 VDC |
| Power consumption | ＜ 10 W |
| Installation | Surface mounting |
| Working temperature | -30 ° C to +50 ° C(-22 ° F to 122 ° F) |
| Working humidity | 10% to 90% |
| Weight | Gross Weight: 0.992 kg
Net Weight: 0.795 kg |
| Protective level | IP65, IK09 |
| Dimensions (L x W x H) | 161.85 mm × 74.13 mm × 53.2 mm(6.37″ × 2.92″ × 2.09″) |
|
Language |
English,French,Portuguese,Spanish,Russian,German,Italian,Polish,Arabic,Turkish,Vietn amese,Hungarian,Dutch,Romanian,Czech,Bulgarian,Ukrainian,Croatian,Serbian,Greek,
Slovakia,BrazilianPortuguese |
| Application environment | Outdoor and Indoor |
Documents
| Title | Type | Size | |
|---|---|---|---|
|
UD06951B_Spec_of_DS-KB8112-IM_Door_Station_V1.4.5_20170817 | application/pdf | 614 KB |
Additional information
| Weight | 1000 kg |
|---|---|
| Brand | Hikvision |
| Resolution | 2 MegaPixel |
| Technology | IP |
| Features | 2-Way Audio, Microphone Built-In, PoE |
