UNV PoE Wall Mounted 7 Touchscreen Indoor Station OEI-372S-H-W

Uniview OEI-372S-H-W Indoor Station

The OEI-372S-H-W Indoor Station is a vital component of the digital building intercom system, offering advanced video intercom, security alarm, and network camera monitoring capabilities to ensure a safe and comfortable environment for residents. Designed for versatility, it is ideal for smart communities, villas, and office parks. Featuring a rugged ABS casing with a glass panel, a 7-inch 1024×600 HD touch screen, and Linux-based operation, this indoor station delivers reliable performance. It supports batch configuration, remote door opening, and seamless integration with network cameras and mobile apps, making it a robust solution for modern security needs.

Key Features:

• Durable ABS casing with a sleek glass panel
• 7-inch 1024×600 HD TFT LCD touch screen
• Batch configuration for streamlined setup
• Remote and one-key door opening functionality
• Network camera monitoring and security alarm integration
• Wi-Fi, RS485, and PoE-enabled network port (IEEE802.3af)
• High-quality audio with noise suppression, echo cancellation, and AGC
• Supports MP3 and G711 audio compression at 128Kbps
• Lightweight at 360g with compact dimensions (193mm?143mm?25mm)

Specifications:

• Power: DC12V 25%, IEEE802.3af Standard PoE
• Power Consumption: <10W
• Interfaces: Power*1, Network*1, Wi-Fi*1, RS485*1, IO Output*2, IO Input*8, TF Card Slot*1
• Network: 100Mbps port, supports IEEE802.3af PoE
• Audio: Built-in omnidirectional microphone and speaker
• Operating Environment: -10 C to +55 C, 10% to 90% non-condensing
• Protocol: UNV private protocol
• Weight: 360g

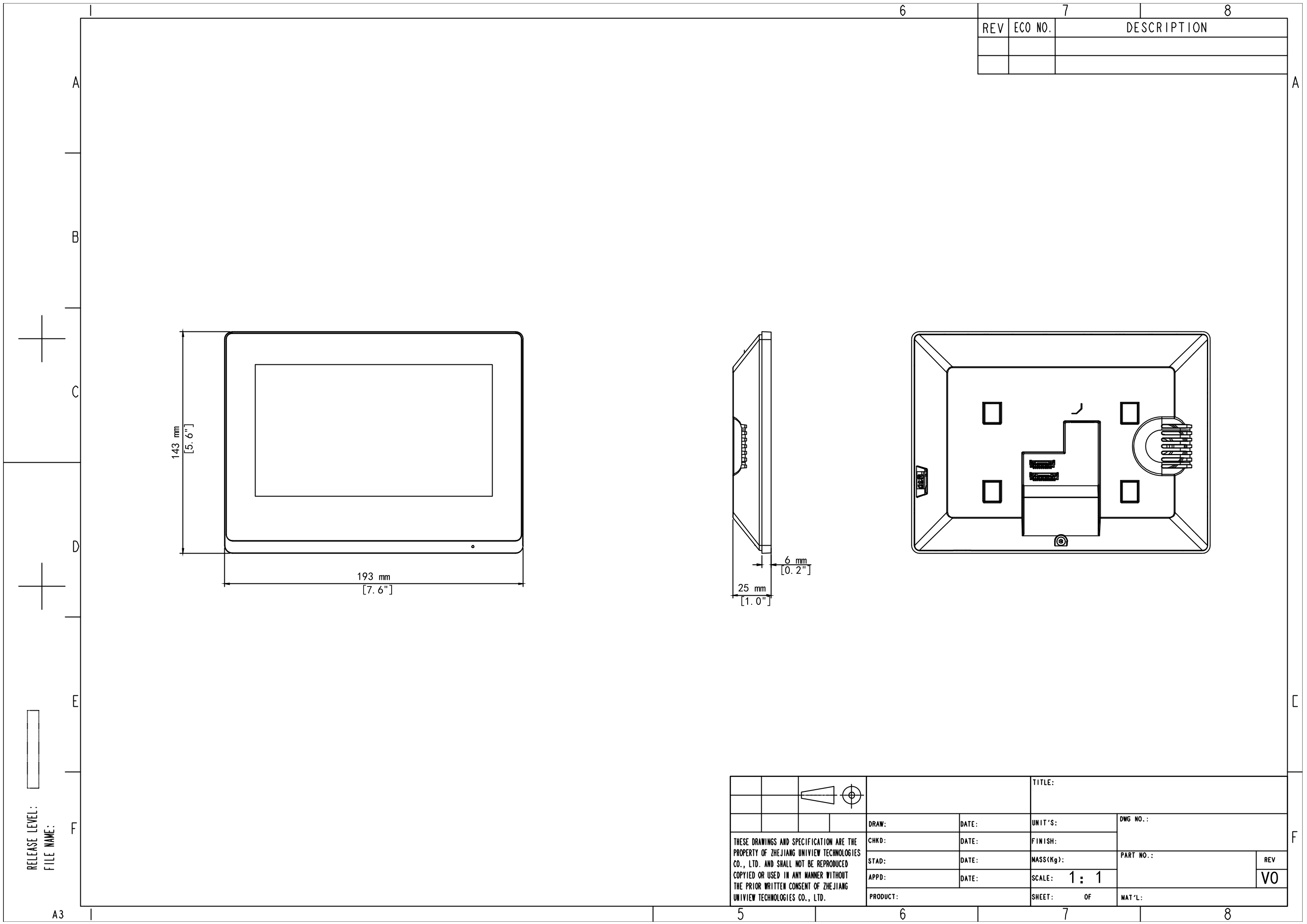

• Dimensions: 193mm?143mm?25mm
