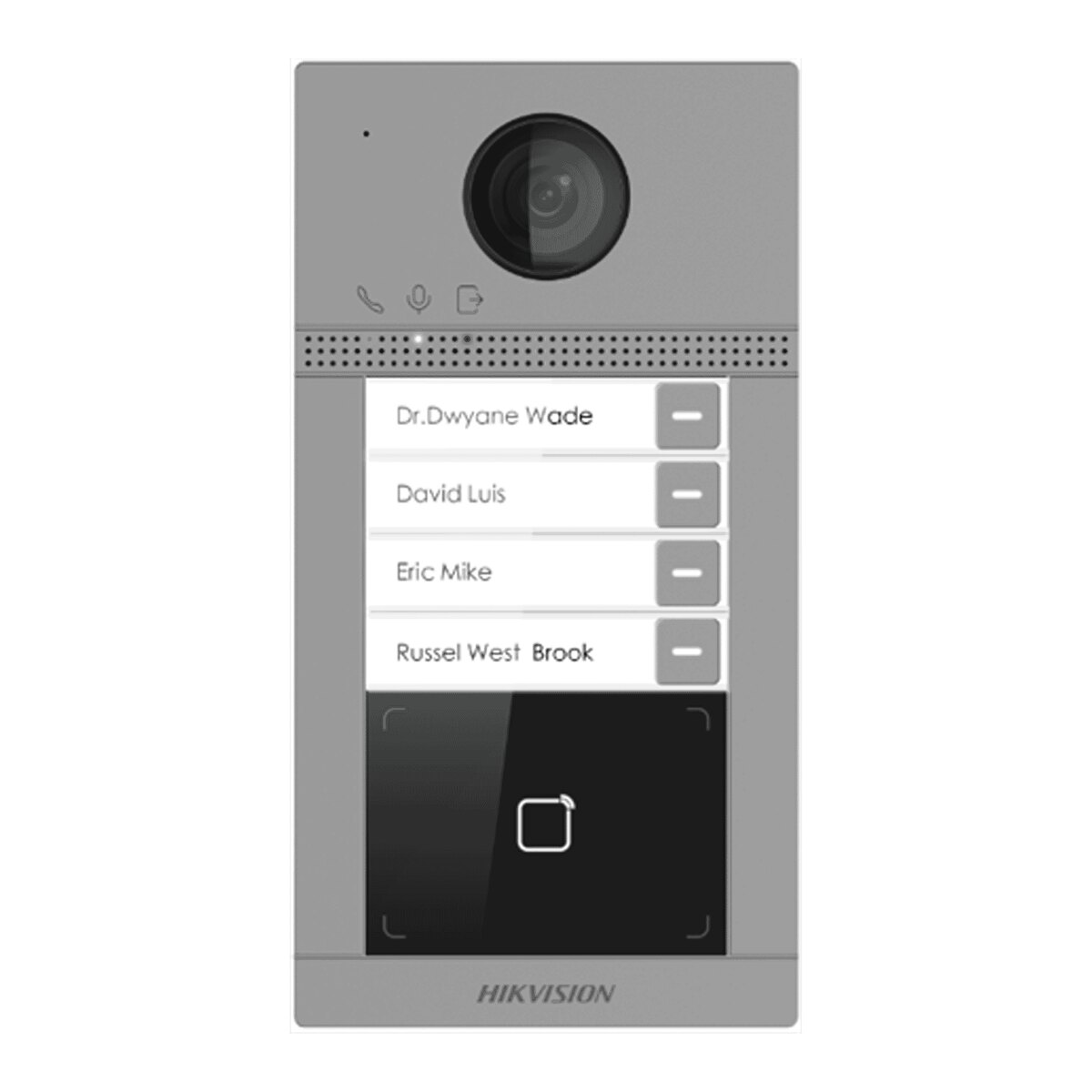

Hikvision 2MP Wi-Fi Villa Door Station with 4 Buttons and Card Reader DS-KV8413-WME1
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- 2MP (1080p) camera
- Infrared night vision
- Wi-Fi
- Built-in card reader for keyless entry
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description
A video door station for Hikvision's IP intercom range. Visitors press the call button and you answer from an indoor station or from the Hik-Connect app on your phone.
Key features
- 2MP (1080p) camera
- Infrared night vision
- Wi-Fi
- Built-in card reader for keyless entry
- 4 call buttons
- IP65 weatherproof
Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.
Specifications
| System parameters | |
|---|---|
| Operating system | Embedded Linux operation system |
| ROM | 32 M |
| RAM | 256 M |
| CPU | Embedded MCU Processor |
| Video parameters | |
| Lens | 1 |
| Resolution | Main stream: 1920 x 1080 Sub stream: 640 x 480 |
| FOV | Horizontal: 124° Vertical: 75° |
| WDR | Support |
| Supplement light | IR supplement |
| Video compression standard | H.264 |
| Audio parameters | |
| Audio compression standard | G.711 U, G.711 A |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (More than 80 dB within 30 cm) |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 2000 |
| Card capacity | 10000 |
| Linked indoor station capacity | 4(main indoor station) |
| Sub door station capacity | 16 |
| Network parameters | |
| Communication protocol | TCP/IP, RTSP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Wi-Fi standard | Wi-Fi 802.11 b/g/n |
| Received frequency | 2.4 to 2.4835GHz |
| Transmitted frequency | 2.4 to 2.4835 GHz |
| Bandwidth | 20/40 MHz |
| Frequency power | 802.11b:15 dBm +/- 1.5 dBm 802.11g:15 dBm +/- 1.5 dBm 802.11n(ht20):14 dBm +/- 1.5 dBm 802.11n(ht40):12 dBm +/- 1.5 dBm |
| Authentication | |
| Card reading frequency | 13.56 MHz |
| Device interfaces | |
| Alarm input | 4 |
| Network interface | 1 |
| TAMPER | 1 |
| Exit button | 2 Max. |
| RS-485 | 1 |
| TF card | 1(Reserved) |
| Lock control | 2 |
| Door contact input | 2 |
| Power interface | 1 |
| General | |
| Button | 4 |
| Installation | Surface mounting |
| Indicator | 3 |
| Weight | 380 g |
| Protective level | IP65, IK08 |
| Working temperature | -40° C to 53° C (-40° F to 127.4° F) |
| Working humidity | 10% to 95% |
| Dimensions | 174 mm x 91 mm x 29 mm |
| Application environment | Outdoor |
| Power consumption | : 10 W |
| Language | English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Resolution | 2 MegaPixel |
| Technology | IP |
