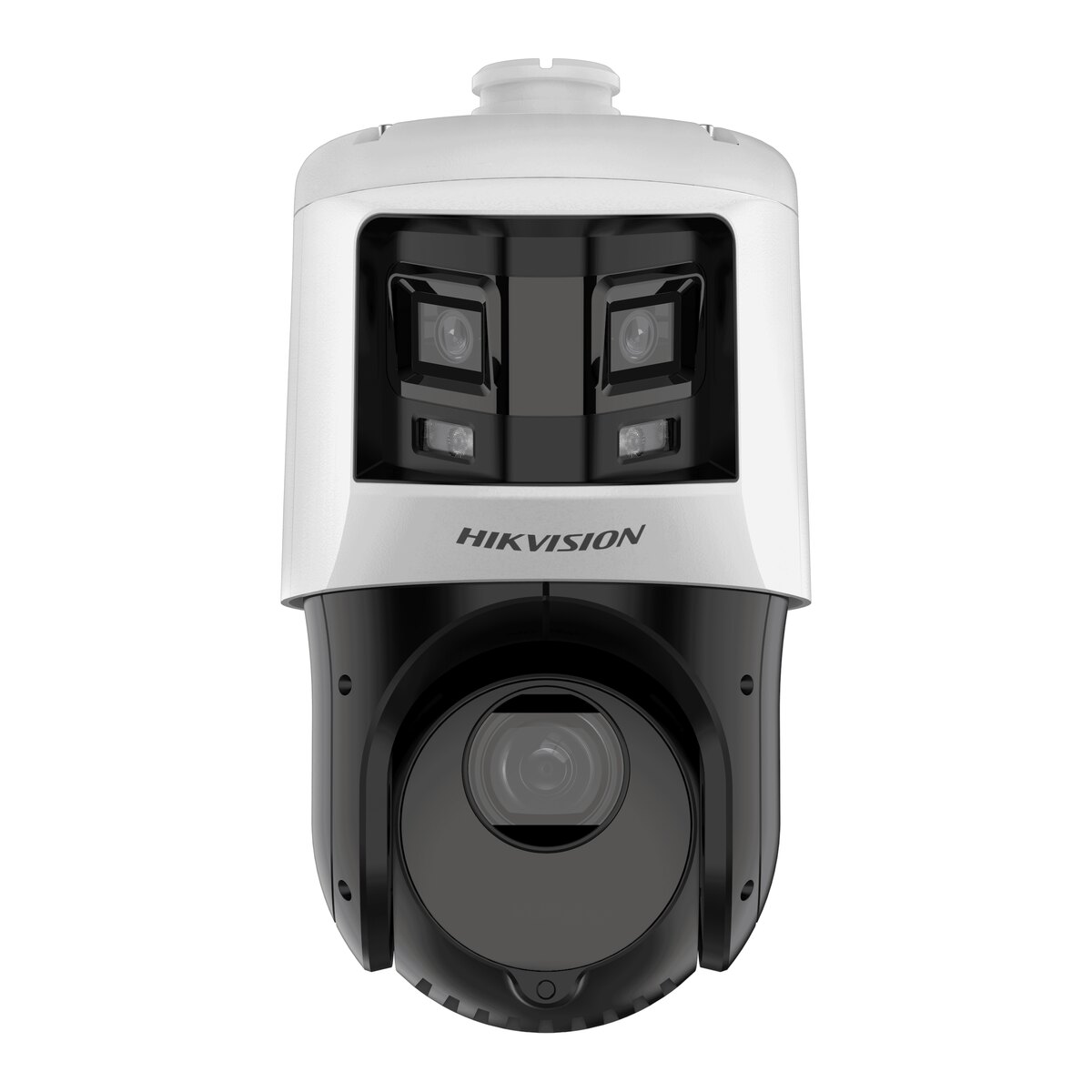

Hikvision 4MP 25x PTZ Network Camera DS-2SE4C425MWG-E/26
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- Max. Resolution: [Bullet channel] 3632 x 1632, [PTZ channel] 2560 x 1440
- Zoom: [PTZ channel] 25 x optical, 16 x digital
- Focal Length: [Bullet channel]: 2.8 mm [PTZ channel]: 4.8 to 120 mm, 25 x optical
- Zoom Speed: [PTZ channel]: approx. 3.6 s
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Compatible brackets and mounts
Description
The Hikvision DS-2SE4C425MWG-E/26 is a 4MP 25x zoom PTZ network camera. It records to a Hikvision NVR and can be viewed from anywhere in the Hik-Connect app.
Key features
- Max. Resolution: [Bullet channel] 3632 x 1632, [PTZ channel] 2560 x 1440
- Zoom: [PTZ channel] 25 x optical, 16 x digital
- Focal Length: [Bullet channel]: 2.8 mm [PTZ channel]: 4.8 to 120 mm, 25 x optical
- Zoom Speed: [PTZ channel]: approx. 3.6 s
- Supplement Light Range: [PTZ channel]: up to 100 m [Bullet channel]: up to 30 m
- Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.
Specifications
| Camera | |
|---|---|
| Image Sensor | [Bullet channel]: 1/2.5" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS |
| Max. Resolution | [Bullet channel] 3632 x 1632, [PTZ channel] 2560 x 1440 |
| Min. Illumination | [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Day & Night | ICR |
| Zoom | [PTZ channel] 25 x optical, 16 x digital |
| Slow Shutter | yes |
| Lens | |
| Focal Length | [Bullet channel]: 2.8 mm [PTZ channel]: 4.8 to 120 mm, 25 x optical |
| FOV | [Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°; [PTZ channel]: Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele) |
| Focus | semi-auto||manual||auto |
| Aperture | [Bullet channel]: F1.0 [PTZ channel]: F1.6 |
| Zoom Speed | [PTZ channel]: approx. 3.6 s |
| Illuminator | |
| Supplement Light Type | [PTZ channel]: IR [Bullet channel]: White Light |
| Supplement Light Range | [PTZ channel]: up to 100 m [Bullet channel]: up to 30 m |
| Smart Supplement Light | Yes |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
| Proportional Pan | yes |
| Presets | 300 |
| Preset Freezing | yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Park Action | preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Scheduled Task | preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output |
| Power-off Memory | yes |
| Video | |
| Main Stream | [Bullet channel] 50 Hz：25 fps（3632 x 1632:3680 x 1656） 60 Hz：30 fps（3632 x 1632:3680 x 1656） [PTZ channel] 50 Hz：25 fps（2560 x 1440:1920 x 1080:1280 x 960:1280 x 720） 60 Hz：30 fps（2560 x 1440:1920 x 1080:1280 x 960:1280 x 720） |
| Sub-Stream | [Bullet channel] 50 Hz：25 fps（1200 x 536:960 x 432） 60 Hz：30 fps（1200 x 536:960 x 432） [PTZ channel] 50 Hz：25 fps（704 x 576:640 x 480:352 x 288） 60 Hz：30 fps（704 x 480:640 x 480:352 x 240） |
| Third Stream | [Bullet channel] No [PTZ channel] 50 Hz：25 fps（1920 x 1080:1280 x 960:1280 x 720:704 x 576:640 x 480:352 x 288） 60 Hz：30 fps（1920 x 1080:1280 x 960:1280 x 720:704 x 480:640 x 480:352 x 240） |
| Video Compression | H.265||H.264||MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | baseline profile||main profile||high profile |
| H.265 Type | main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3 |
| Audio Bit Rate | MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Audio Sampling Rate | MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps |
| Environment Noise Filtering | yes |
| Network | |
| Simultaneous Live View | 20 |
| API | ISAPI,SDK,ISUP,ONVIF |
| User/Host | 32 |
| Security | Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter |
| Network Storage | NAS (NFS, SMB/ CIFS)|| ANR |
| Client | iVMS-4200||Hik-Connect |
| Web Browser | IE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | sharpness, saturation, brightness, contrast |
| Day/Night Switch | day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Image Stabilization | EIS |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | [Bullet channel] 8 programmable polygon privacy masks [PTZ channel] 24 programmable polygon privacy masks; mask colour or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
| Interface | |
| Ethernet Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB |
| Audio | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω |
| Alarm | 1 alarm input, 1 alarm output |
| Reset | yes |
| Event | |
| Basic Event | [PTZ channel] motion detection, video tampering alarm [PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot) |
| Smart Event | [PTZ channel & bullet channel] audio exception detection [PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan) |
| Smart Linkage | Panorama Linkage |
| Deep Learning Function | |
| Face Capture | Detects up to 5 faces simultaneously, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
| General | |
| Power | 12VDC, PoE+ |
| Dimension | Ø 166 mm x 375 mm (Ø 6.5" x 14.7") |
| Weight | Approx. 2.4 kg (13.2 lb.) |
| Material | ADC12 |
| Operating Condition | -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH |
| General Function | mirror,watermark,password protection |
| Demist | Demist by heating the glass |
| Power Consumption and Current | Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light |
| Approval | |
| Protection | IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Colour | White |
| Resolution | 4 MegaPixel |
| Technology | IP |
| Features | PoE (Power over Ethernet) |
| Camera Type | PTZ |
| Optical Zoom | 25x |
