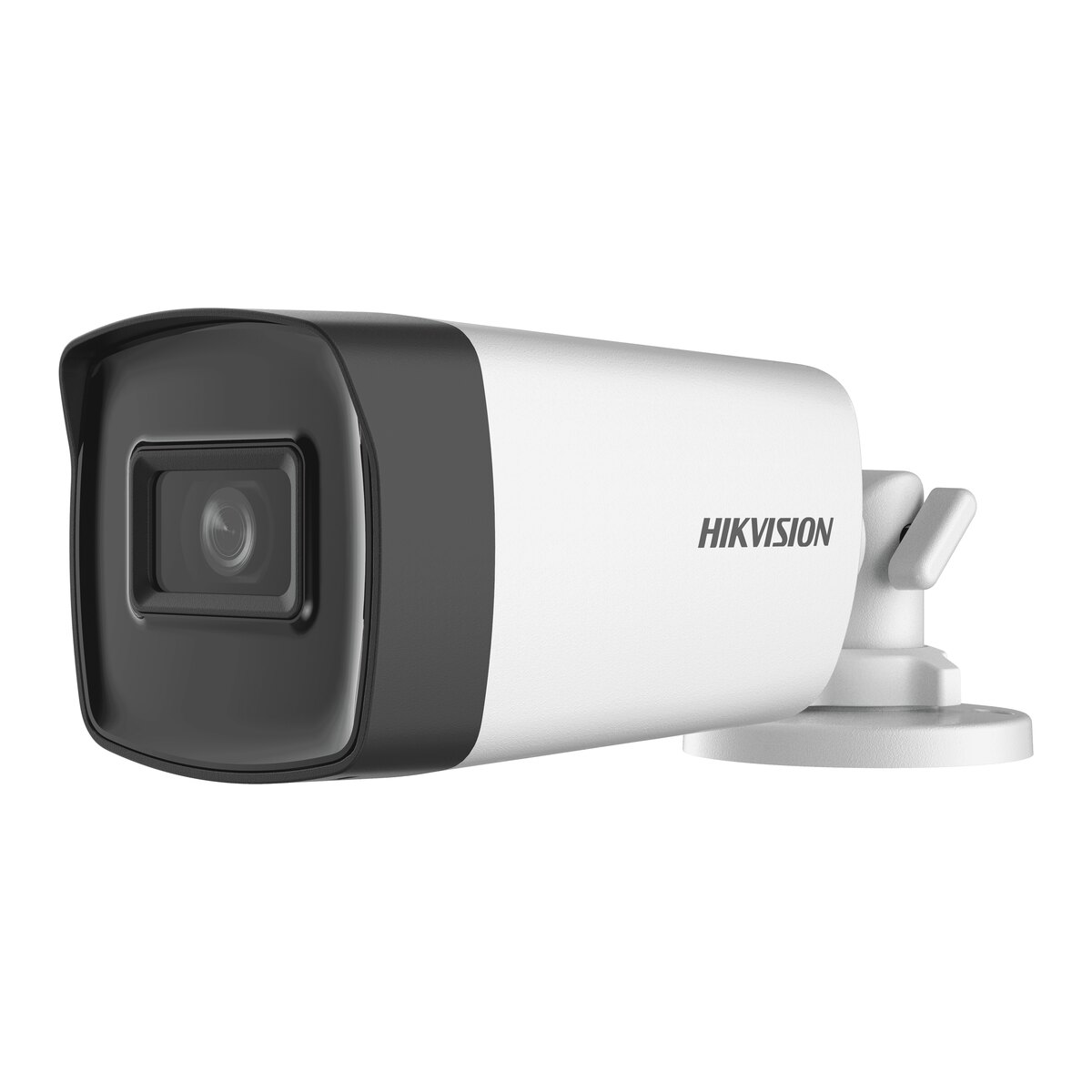

Hikvision 5MP Turbo HD Bullet Camera 3.6mm DS-2CE17H0T-IT3E

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) x 1944 (V)
Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Lens Type: 3.6 mm fixed focal lens

Description

The Hikvision DS-2CE17H0T-IT3E is a 5MP bullet Turbo HD camera with a 3.6mm lens. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) x 1944 (V)
Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Lens Type: 3.6 mm fixed focal lens
Focal Length & FOV: 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105°
Lens Mount: M12

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	5 MP CMOS
Max. Resolution	2560 (H) x 1944 (V)
Min. Illumination	0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & Night	ICR
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Signal System	PAL/NTSC
Lens
Lens Type	3.6 mm fixed focal lens
Focal Length & FOV	3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105°
Lens Mount	M12
Image Parameters Switch	STD/HIGH-SAT
Image Settings	Brightness, Sharpness, Smart IR
Frame Rate	5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
Day/Night Mode	Auto/Colour/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	DWDR, BLC, HLC, Global
Noise Reduction	2D DNR
White Balance	Auto/Manual
AGC	Yes
Interface
Video Output	1 HD analogue output
General
Material	Front Cover: Metal Main Body: Plastic
Dimension	216.6 mm x 78.9 mm x 75.4 mm (8.53" x 3.10" x 2.97")
Weight	Approx. 380 g (0.84 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication	HIKVISION-C
Language	English
Power Supply	12 VDC ±25% PoC.af *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
Consumption	Max. 4 W
IR Range	Up to 40 m
Approval
Protection	IP67
