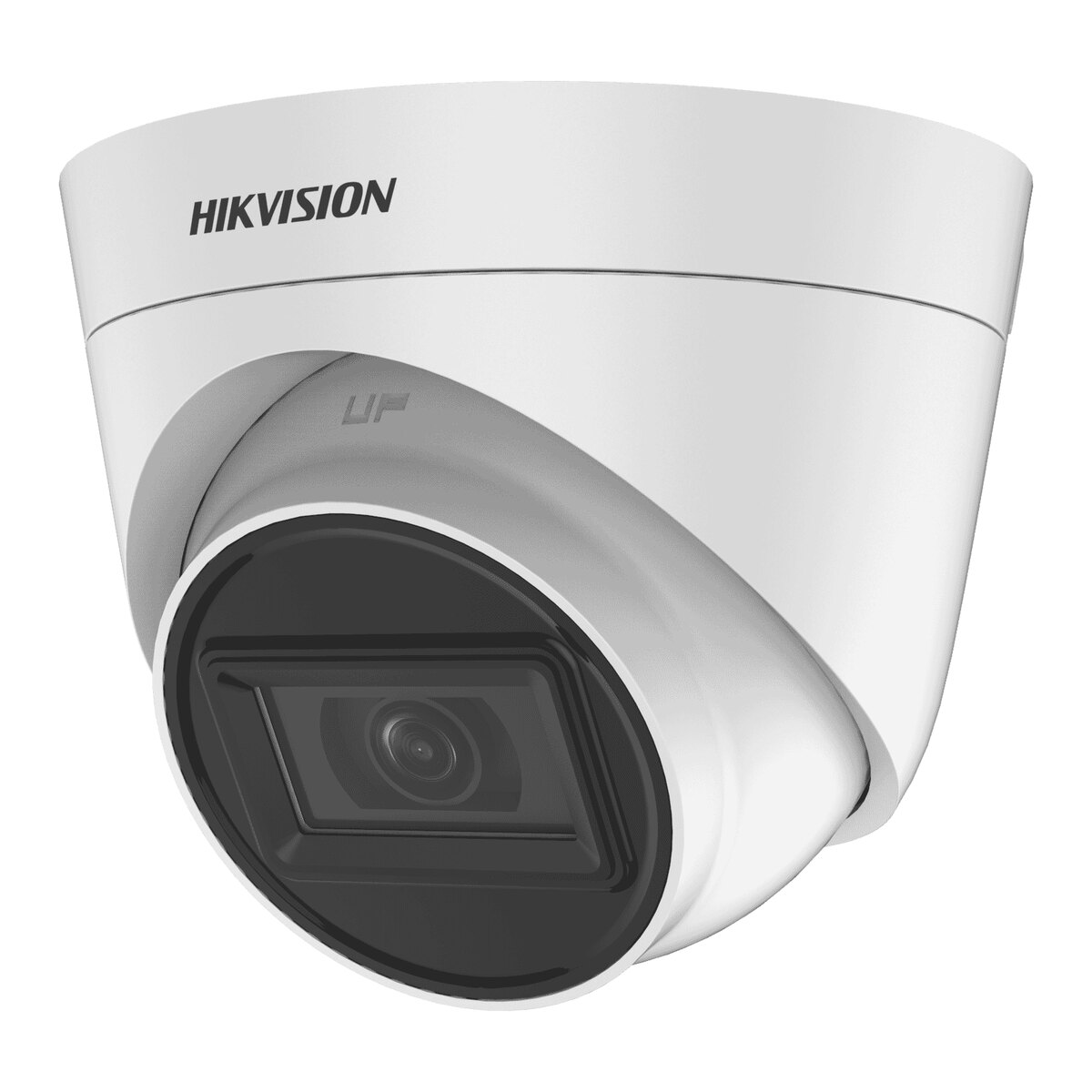

Hikvision 5MP Turbo HD Turret Camera 2.8mm DS-2CE78H0T-IT3E

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) x 1944 (V)
Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm fixed focal lens

Colour

Clear

Description

The Hikvision DS-2CE78H0T-IT3E is a 5MP turret Turbo HD camera with a 2.8mm lens. It connects to a Hikvision Turbo HD DVR over standard coax cable. Choose the colour from the options.

Key features

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) x 1944 (V)
Min. Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm fixed focal lens
Focal Length & FOV: 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110°
Lens Mount: M12

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	5 MP CMOS
Max. Resolution	2560 (H) x 1944 (V)
Min. Illumination	0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day & Night	ICR
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Signal System	PAL/NTSC
Lens
Lens Type	2.8 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110°
Lens Mount	M12
Image Parameters Switch	STD/HIGH-SAT
Image Settings	Brightness, Sharpness, Smart IR
Frame Rate	5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
Day/Night Mode	Auto/Colour/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	DWDR, BLC, HLC, Global
Noise Reduction	2D DNR
White Balance	Auto/Manual
AGC	Yes
Interface
Video Output	1 HD analogue output
General
Material	Front Cover: Plastic Main Body: Metal
Dimension	91.0 mm x Ø109.8 mm (3.58" x Ø4.32")
Weight	Approx. 326 g (0.72 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication	HIKVISION-C
Language	English
Power Supply	12 VDC ±25% PoC.af *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
Consumption	Max. 3 W
IR Range	Up to 40 m
Approval
Protection	IP67

Downloads

Additional information

Brand	Hikvision
Lens	2.8mm
Colour	Black, Grey, White
Resolution	5 MegaPixel
Technology	TVI
Features	PoC (Power over Coax)
Camera Type	Turret
Night Vision	Infrared (IR)
