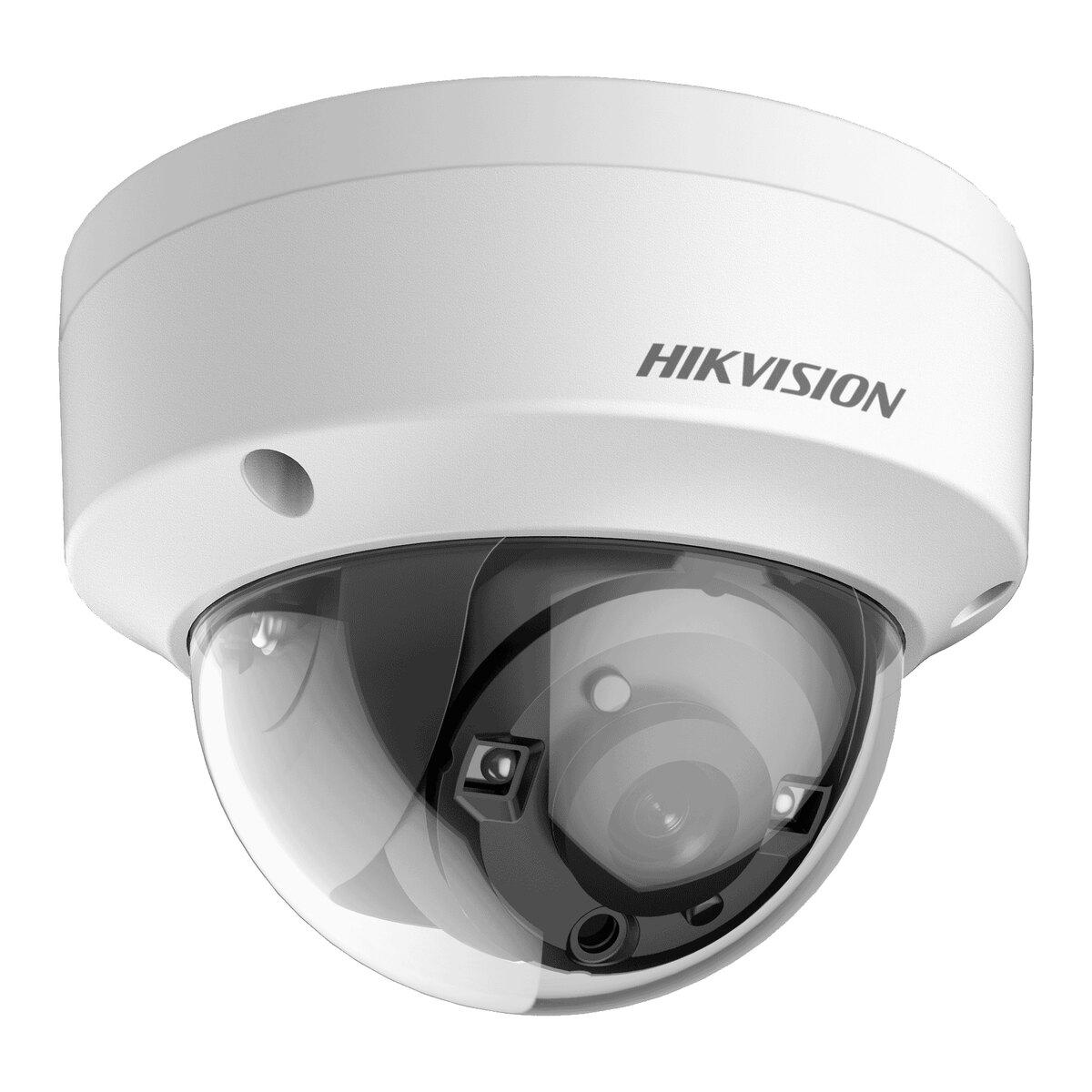

Hikvision 5MP Ultra Low Light Turbo HD Dome Camera 2.8mm DS-2CE57H8T-VPITF

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) x 1944 (V)
Min. Illumination: Colour: 0.003 Lux@ (F1.2, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm fixed focal lens

Description

The Hikvision DS-2CE57H8T-VPITF is a 5MP dome Turbo HD camera with a 2.8mm lens. It connects to a Hikvision Turbo HD DVR over standard coax cable.

Key features

Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) x 1944 (V)
Min. Illumination: Colour: 0.003 Lux@ (F1.2, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm fixed focal lens
Focal Length & FOV: 2.8 mm, horizontal FOV: 98°
Lens Mount: M12

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	5 MP CMOS
Max. Resolution	2560 (H) x 1944 (V)
Min. Illumination	Colour: 0.003 Lux@ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Signal System	PAL/NTSC
Lens
Lens Type	2.8 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 98°
Lens Mount	M12
Illuminator
Supplement Light Type	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
Image Settings	Brightness; Sharpness; Mirror; Smart IR; AGC
Frame Rate	TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC
Day/Night Mode	Auto/Colour/BW (Black and White)
Wide Dynamic Range (WDR)	=130 dB
Image Enhancement	WDR; BLC
Privacy Mask	4 programmable privacy masks
Noise Reduction	3D DNR
White Balance	Auto/Manual
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS;1 HD analogue output
Event
Motion Detection	4 programmable motion areas
General
Power	12 VDC ± 25%, max. 5.8 W *You are recommended to use one power adapter to supply the power for one camera.
Material	Metal
Dimension	Î¦ 110.8 mm x 84.7 mm (Î¦ 4.4" x 3.3")
Weight	Approx.500 g (1.10 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
Approval
Protection	IP67, IK10

Downloads

Additional information

Brand	Hikvision
Lens	2.8mm
Colour	White
Resolution	5 MegaPixel
Technology	AHD, Analog (CVBS), CVI, TVI
Features	Vandal Resistant (IK10)
Camera Type	Dome
Night Vision	Infrared (IR)
