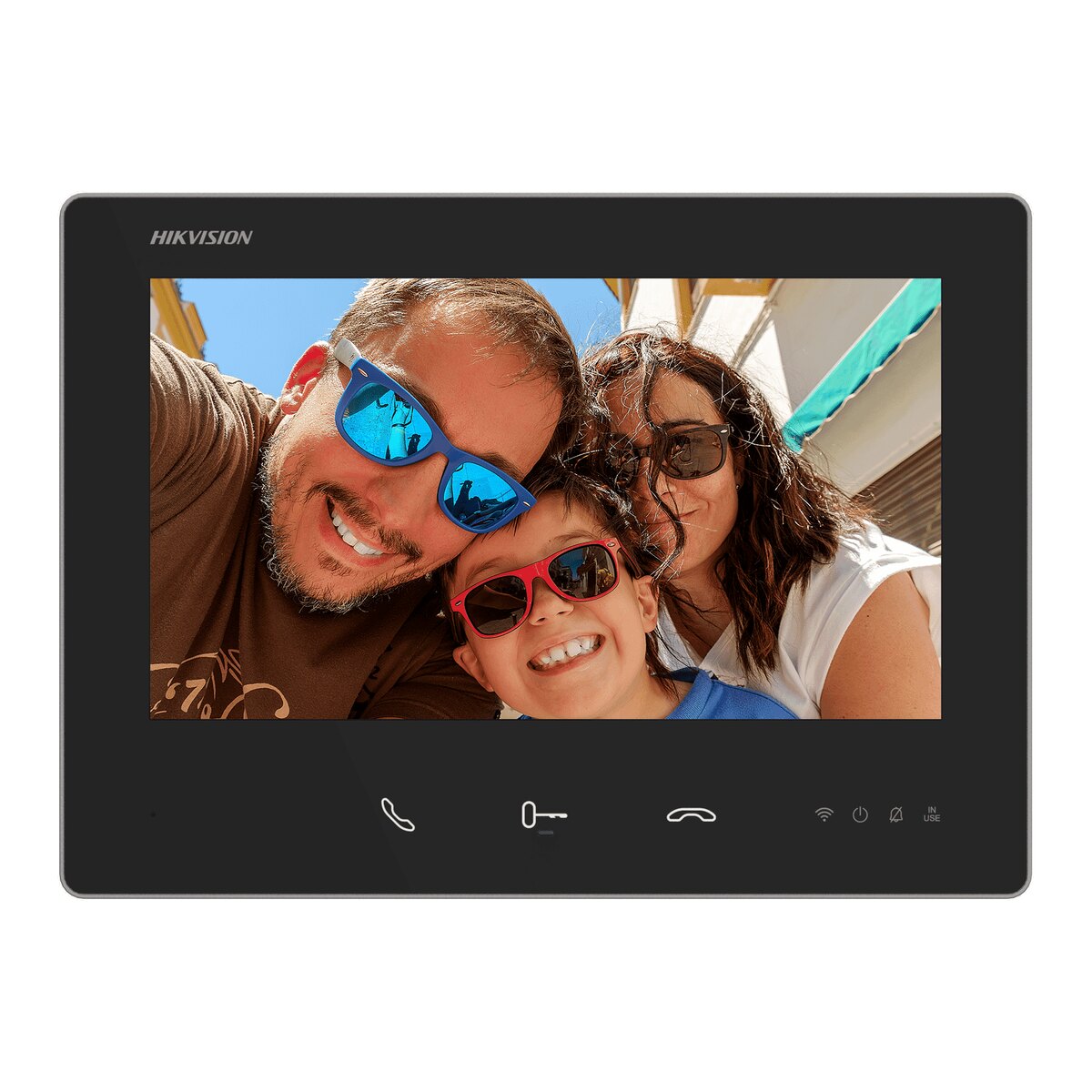

Hikvision 7″ 2-Wire HD Touchscreen Wi-Fi Indoor Station, Black DS-KH7300EY-WTE2
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- 7-inch touchscreen
- Wi-Fi
- Works with the Hik-Connect app
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description
An indoor station for Hikvision's 2-wire HD intercom range. Answer calls from the door, see who is there and release the door or gate from the screen.
Key features
- 7-inch touchscreen
- Wi-Fi
- Works with the Hik-Connect app
Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.
Specifications
| System parameters | |
|---|---|
| Operating system | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 128 MB |
| CPU | Embedded processor |
| Display parameters | |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colourful TFT screen |
| Resolution | 1024 x 600 |
| Audio parameters | |
| Audio compression standard | G.711 U G.711 A |
| Audio input | 1 Built-in omnidirectional microphone |
| Audio output | 1 Buit-in loudspeaker |
| Audio compression bitrate | 64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Event capacity | 200 captured pictures (with TF card) |
| Linked indoor extensions capacity | 3 |
| Network parameters | |
| Communication protocol | TCP/IP, RTSP |
| Wi-Fi standard | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Device interfaces | |
| Alarm input | 1 |
| TF card | Max to 128 G, SD 2.0 or lower version |
| DIP switch | 5 decimal DIP switch and 4 binary DIP switch |
| Power supply input | 48V:powered by DS-KAD7060EY or DS-KAD7061EY |
| Two-wire IP interface | 2, 1 for input 1 for output |
| General | |
| Button | 3 Touch buttons (Answer, Unlock, Hang up) +1 Physical button (Reset） |
| Installation | Surface mounting |
| Indicator | 4（Wifiã€Powerã€Muteã€In use） |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimensions | 190.2 mm x 138.2 mm x 20 mm (7.5" x 5.4" x 0.8") |
| Power supply | 48V:Powered by DS-KAD7060EY or DS-KAD7061EY |
| Application environment | Indoor |
| Power consumption | = 5W (stand by = 1.2 W) |
| Language | English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese |
Downloads
Additional information
| Brand | Hikvision |
|---|
