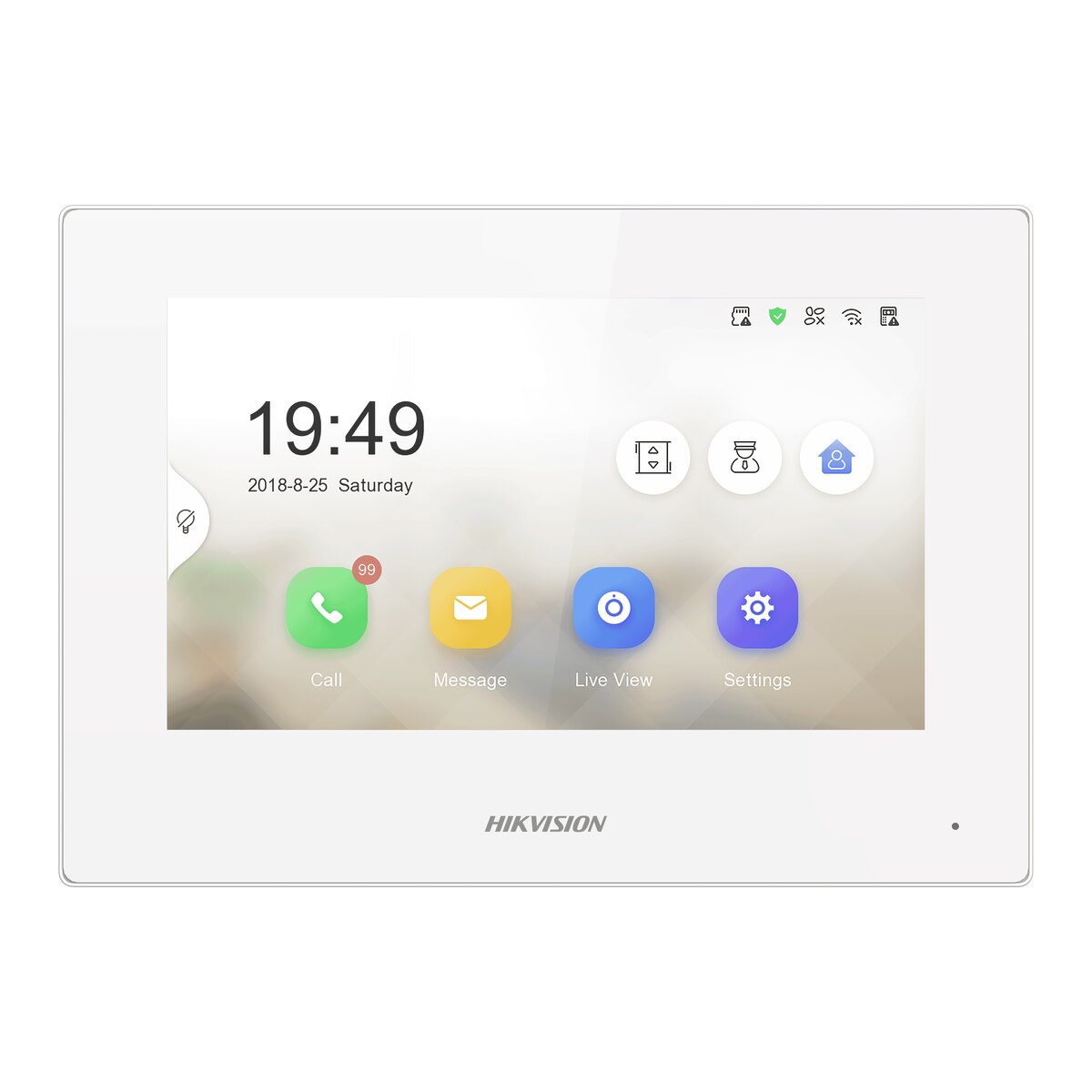

Name: Hikvision 7" Touchscreen Wi-Fi PoE Indoor Station, White DS-KH6320-WTE1-W
Brand: Hikvision
SKU: DS-KH6320-WTE1-W
Price: 163.49 GBP
Availability: InStock

An indoor station for Hikvision's IP intercom range. Answer calls from the door, see who is there and release the door or gate from the screen.

Key features

7-inch touchscreen
Wi-Fi
Powered over the network cable (PoE)
Works with the Hik-Connect app

Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.

Specifications

System parameters
Operating system	Embedded Linux operation system
ROM	32 MB
RAM	128 MB
CPU	Embedded processor
Display parameters
Screen size	7-inch colorful TFT screen
Operation method	Capacitive touch screen
Type	Colorful TFT screen
Resolution	1024 x 600
Video parameters
Video compression standard	DS-KH6320-WTE1
Audio parameters
Audio compression standard	G.711 U
Audio input	Built-in omnidirectional microphone
Audio output	Built-in loudspeaker
Audio compression bitrate	64 Kbps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Capacity
Event capacity	200
Notice capacity	16
Linked indoor extensions capacity	5
Linked doorphone capacity	8
Network parameters
Communication protocol	TCP/IP, SIP, RTSP
Wired network	10/100 Mbps self-adaptive
Wi-Fi standard	Wi-Fi 802.11 b/g/n
Device interfaces
Alarm input	8-ch alarm inputs
Network interface	1 RJ-45 10/100 Mbps self-adaptive
RS-485	1
TF card	Max to 32 G, SD 2.0 or lower version
Alarm output	2
Power interface	1
General
Installation	Surface mounting
Weight	With package: 683 g Without package: 355 g
Working temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working humidity	10% to 90%
Dimensions	200 mm x 140 mm x 15.1 mm (7.9" x 5.5" x 0.6")
Application environment	Indoor
Power consumption	= 6 W
Language	English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
