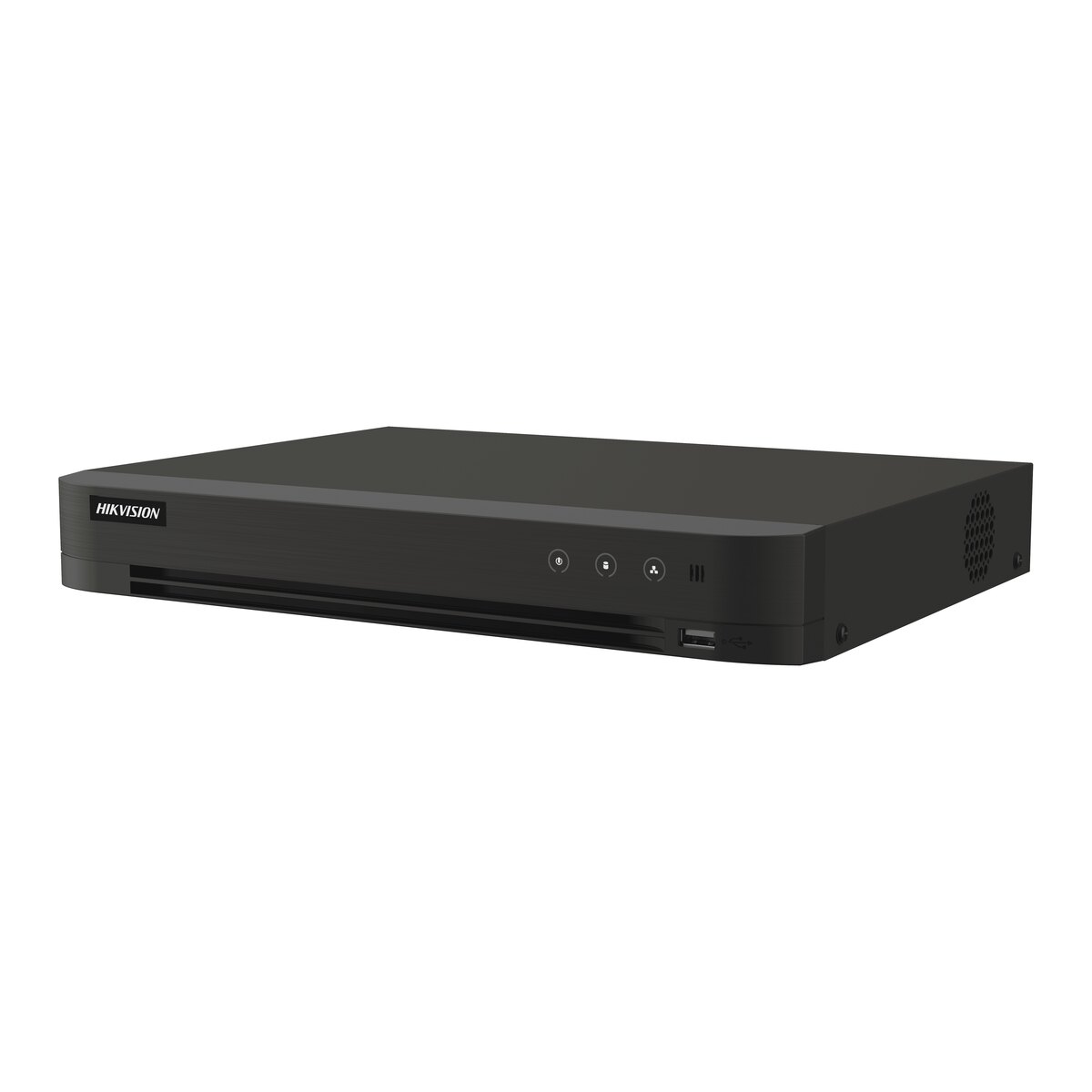

Hikvision 8CH 8MP/4K AcuSense 5-in-1 HD CCTV DVR Recorder iDS-7208HUHI-M1/XT/4A+8/4ALM
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
- 8-channel 5-in-1 HD recording up to 8MP/4K
- AcuSense human and vehicle alerts that cut false alarms
- 1080p HDMI output for a local monitor
- 1 SATA bay
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description
The Hikvision iDS-7208HUHI-M1/XT/4A+8/4ALM is an 8-channel Turbo HD digital video recorder for HD-TVI, AHD, HD-CVI and analogue cameras, with extra channels for IP cameras.
AcuSense filters motion alerts down to people and vehicles, so a swaying tree or passing cat no longer fills your phone with notifications. It takes one SATA hard drive. No hard drive is included: choose one from our surveillance hard drives.
Key features
- 8-channel 5-in-1 HD recording up to 8MP/4K
- AcuSense human and vehicle alerts that cut false alarms
- 1080p HDMI output for a local monitor
- 1 SATA bay
- H.265+ compression for longer recording on the same storage
- Free Hik-Connect app for live view and playback on your phone
Need cameras to go with it? See our analog cameras, or send us a message with your camera count and we will check compatibility.
Specifications
| Facial Recognition | |
|---|---|
| Face Picture Library | Up to 16 face picture libraries |
| Face Picture Comparison (Captured from Camera) | Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analogue camera) |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analogue channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 4-ch Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable. |
| Video and Audio | |
| IP Video Input | 4-ch (up to 12-ch), Up to 6 MP resolution |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection |
| HDTVI Input | 3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| AHD Input | 5 MP(2560 x 1944)@20 fps, 4 MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| HDCVI Input | 3K(2880×1620)@25fps, 5MP(2592 x 1944)@20 fps, 4MP(2560 x 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, HDMI/VGA simultaneous output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Audio Input | 1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KO) 8-ch via coaxial cable Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, €œ4A+8/4ALM€ means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs. If your device only has 1 audio input, the tag may not describe it. |
| Audio Output | 1-ch, RCA (Linear, 1 KO) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input) |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame Rate | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual-stream | Support main stream or sub stream |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Remote Connection | 64 |
| Total Bandwidth | 96 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP„¢, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Auxiliary Interface | |
| Serial Interface | RS-485 (half-duplex) |
| SATA | 1 SATA interface, up to 10 TB capacity for each disk |
| Alarm In/Out | N/A (optional to support) |
| USB Interface | Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0 |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | = 18 W (without HDD) |
| Working Temperature | -10 °C to + 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W x D x H) | 319 x 236 x 48 mm (12.6 x 9.3 x 1.9 inch) |
| Weight | = 1.78 kg (3.9 lb) (without HDD) |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Resolution | 8 MegaPixel |
| Technology | 5-in-1 |
| HDD Bays | 1 HDD Bay |
| Channels | 8 Channel |
| Features | AI Person/Vehicle Detection |
