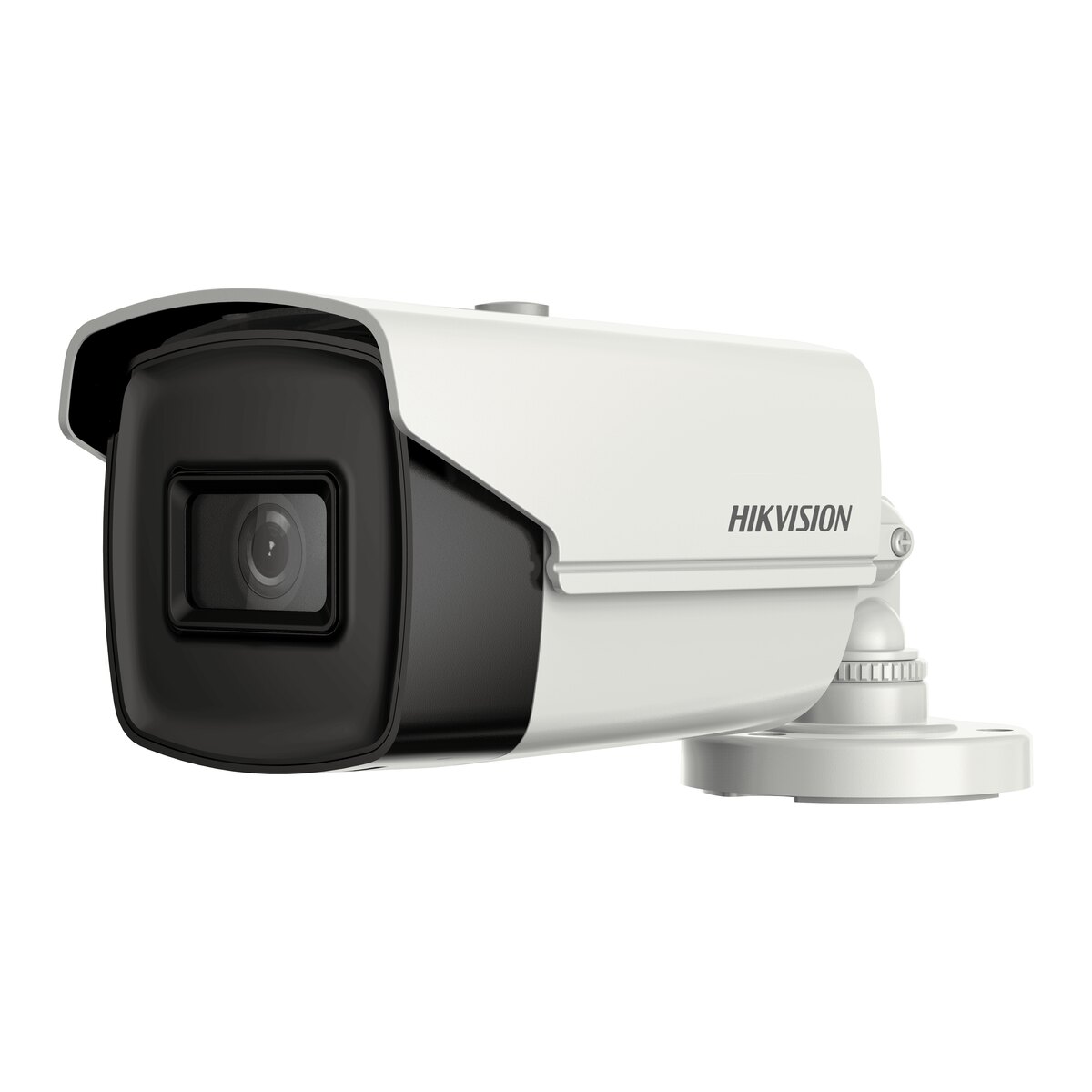

Hikvision 8MP Ultra Low Light Turbo HD Bullet Camera 2.8mm or 3.6mm DS-2CE16U1T-IT3F

Image Sensor: 8.29 MP progressive scan CMOS
Max. Resolution: 3840 (H) × 2160 (V)
Min. Illumination: 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens

Clear

Description

The Hikvision DS-2CE16U1T-IT3F is a 8MP bullet Turbo HD camera, available with a 2.8mm or 3.6mm lens. It connects to a Hikvision Turbo HD DVR over standard coax cable. Choose the lens from the options.

Key features

Image Sensor: 8.29 MP progressive scan CMOS
Max. Resolution: 3840 (H) × 2160 (V)
Min. Illumination: 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Focal Length & FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
Lens Mount: M16

Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.

Specifications

Camera
Image Sensor	8.29 MP progressive scan CMOS
Max. Resolution	3840 (H) × 2160 (V)
Min. Illumination	0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal System	PAL/NTSC
Lens
Lens Type	2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Focal Length & FOV	102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
Lens Mount	M16
Illuminator
Supplement Light Type	IR
Supplement Light Range	Up to 60 m
Smart Supplement Light	Yes
Image Settings	Brightness;Sharpness;AGC
Frame Rate	TVI: [email protected], 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fpsCVI: [email protected], 8MP@15fpsAHD: [email protected], 8M@15fpsCVBS: 960H P/N
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	BLC;HLC
Noise Reduction	2D DNR
White Balance	Auto/Manual
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS;1 HD analog output
General
Power	12 VDC ± 25%, max. 5.3 W*You are recommended to use one power adapter to supply the power for one camera.
Material	Front cover: Metal, Main body: Plastic
Dimension	81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
Weight	Approx. 435 g (0.96 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Communication	HIKVISION-C
Language	English
Approval
Protection	IP67
