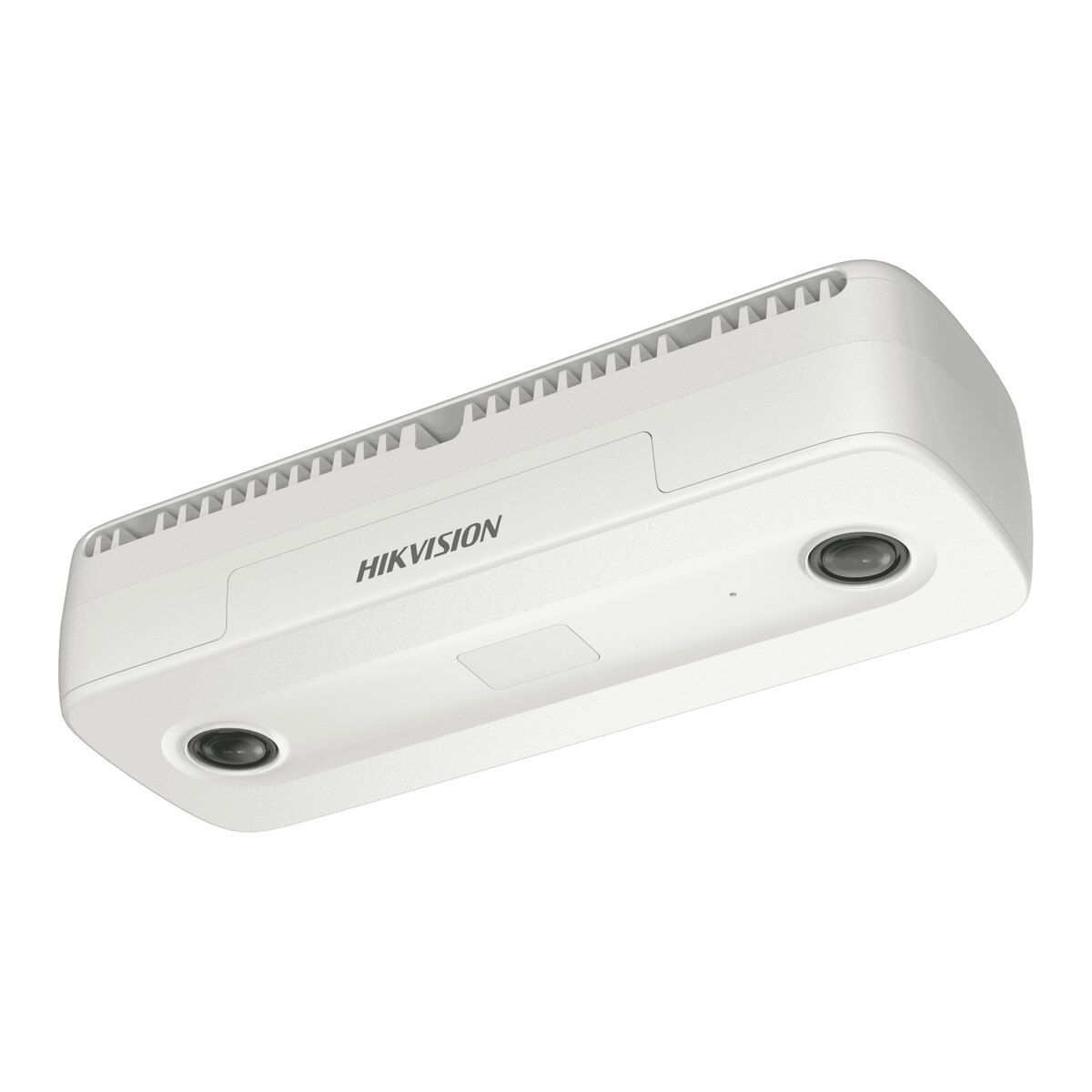

Hikvision Dual-Lens People Counting Network Camera 2mm DS-2CD6825G0/C-IS
Login for Price
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Max. Resolution: 2560 x 1440
- Lens Type: Fixed focal lens, 2 mm
- Focal Length & FOV: 2 mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
Description
The Hikvision DS-2CD6825G0/C-IS is a dual-lens people counting network camera with a 2mm lens.
Key features
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Max. Resolution: 2560 x 1440
- Lens Type: Fixed focal lens, 2 mm
- Focal Length & FOV: 2 mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
- Lens Mount: M12
- Supplement Light Range: Up to 6 m
Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 2560 x 1440 |
| Min. Illumination | Colour: 0.0176 Lux @ (F2.25, AGC ON),B/W: 0.0035 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/25 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Lens | |
| Lens Type | Fixed focal lens, 2 mm |
| Focal Length & FOV | 2 mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112° |
| Lens Mount | M12 |
| Aperture | F2.25 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 6 m |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 720) 60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720) |
| Sub-Stream | 50 Hz: 25 fps (704 x 576, 640 x 480) 60 Hz: 30 fps (704 x 480, 640 x 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed region(s) for main stream and sub-stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G),ISAPI,SDK |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+, Safari12+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger (-S) |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC,HLC,3D DNR, defog |
| Picture Overlay | LOGO picture can be overlaid on video with 128 x 128 24 bit bmp format. |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in eMMC storage, up to 8 GB for people counting data |
| Built-in Microphone | Yes |
| Audio | -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium, -S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium |
| Alarm | -S: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A) |
| RS-485 | -S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Event | |
| Basic Event | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger recording, trigger capture |
| Deep Learning Function | |
| People Counting | Counts people entering and exiting separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height |
| General | |
| Power | 12 VDC ± 20%, 0.58 A, max. 7.0 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.24 A to 0.15 A, max. 8.5 W |
| Material | Front cover: plastic, camera body: metal |
| Dimension | 168 mm x 61 mm x 36 mm (6.6" x 2.4" x 1.4") |
| Package Dimension | 235 mm x 120 mm x 125 mm (9.2" x 4.7" x 4.9") |
| Weight | Approx. 340 g (1 lb.) |
| With Package Weight | Approx. 695 g (1.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 144 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Heartbeat, anti-flicker, mirror, password protection |
| Approval | |
| EMC | FCC: 47 CFR Part 15, Subpart B, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU+2015/863 |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Lens | 2mm |
| Colour | Black |
| Resolution | 4 MegaPixel |
| Technology | IP |
| Features | Microphone Built-In, PoE |
