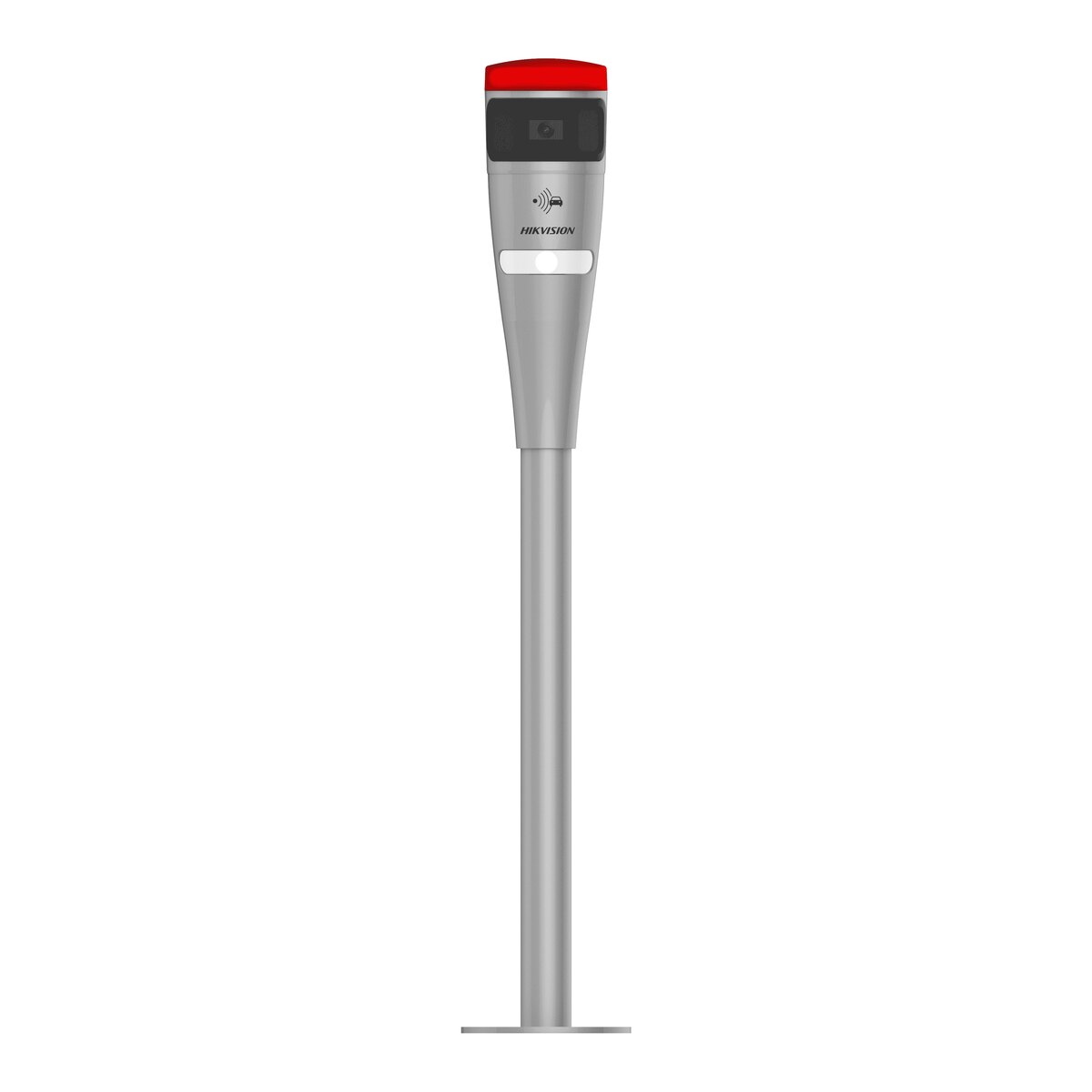

Hikvision Parking Guidance Camera 2.8mm DS-TCL400-E
Login for Price
- Min. Illumination: Colour: 0.04 Lux (F1.6, AGC ON) B/W: 0.02 Lux (F1.6, AGC ON)
- Max. Resolution: 2688 x 1520
- Lens Type: 2.8mm
- Focal Length & FoV: 2.8 mm, horizontal FoV: 103.9°, vertical FoV: 56.2°, diagonal FoV: 123.5°
Description
The Hikvision DS-TCL400-E is a parking guidance camera with a 2.8mm lens.
Key features
- Min. Illumination: Colour: 0.04 Lux (F1.6, AGC ON) B/W: 0.02 Lux (F1.6, AGC ON)
- Max. Resolution: 2688 x 1520
- Lens Type: 2.8mm
- Focal Length & FoV: 2.8 mm, horizontal FoV: 103.9°, vertical FoV: 56.2°, diagonal FoV: 123.5°
- Supplement Light Range: 10m
- WDR: 140db
Planning a system? Send us a message with the recorder you have or the area you need to cover and we will check what fits.
Specifications
| Camera | |
|---|---|
| Sensor Type | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Colour: 0.04 Lux (F1.6, AGC ON) B/W: 0.02 Lux (F1.6, AGC ON) |
| Max. Resolution | 2688 x 1520 |
| Shutter | 1/30 s to 1/100,000 s |
| Day/Night Switch | Supported |
| IR Cut Filter | IR cut filter Blue glass module to reduce ghost phenomenon |
| Lens | |
| Lens Type | 2.8mm |
| Aperture | 2.8mm：F1.6 |
| Focal Length & FoV | 2.8 mm, horizontal FoV: 103.9°, vertical FoV: 56.2°, diagonal FoV: 123.5° |
| Focus | Fixed |
| Supplement Light | |
| Supplement Light Type | Warm White Light |
| Supplement Light Range | 10m |
| Image | |
| WDR | 140db |
| Defog | supported |
| Main Stream | 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720) 60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720) |
| Sub-Stream | 50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480) 60 Hz: 30 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480) |
| Image Settings | Saturation, brightness, contrast, white balance, and gain are adjustable by client software or web browser. |
| Day/Night Switch | Auto/Scheduled/Manual |
| WDR Switch | On, Time, Brightness |
| Frame Rate | 25fps |
| Video | |
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region. |
| Video Compression | H.265/H264/MJPEG |
| H.264 Type | Low profile Medium profile High Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Bit Rate Type | Constant, Variable |
| Scalable Video Coding (SVC) | MJPEG , H.265 and H.264 encoding |
| Capture Mode | |
| Trigger Type | Parking Detection |
| Picture Type | Scene Picture, Composition, Close-up Picture |
| Scene Mode | Parallel Parking, Reverse Parking |
| Capture Type | Checkpoint Capture |
| Capture Parameters | |
| Image Format | JPEG |
| Capture Resolution | 2688*1520 (default)1920*1080,1280*720, 704*576,352*288 |
| Smart Recognition | License plate recognition, vehicle entering/exiting parking space status, parking space status detection, parking over spaces detection, parking over line detection |
| Capture Picture Overlay | Location, shooting time, license plate number, shooting number, vehicle colour Vehicle type, etc |
| Network | |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNSDDNS,RT,RTSP,RTCP,NTP,SNMP:OTAP |
| API | ONVIF(PROFILE S,PROFILE G), ISAPI, SDK |
| Client | HikCentral,SDKdemo,TPE400 |
| Web Browser | Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
| Security | One-key restoration, password protection, watermark |
| Compression Standard | |
| Video Compression | H.264/H.265/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Network Function | |
| Protocol | TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP |
| General | Heartbeat, password protection, and NTP time sync. |
| Interface | |
| RS-485 | 1-ch RS-485 serial port |
| Alarm Input | Not Supported |
| Alarm Output | Not Supported |
| RS-232 | 1-ch RS-232 serial port |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface |
| Memory Card Slot | Not Supported |
| General | |
| Power Supply | 12 to 24 VDC Hik-PoE (with DS-TPM400）;12 to 24 VDC, wide voltage |
| Protection | IP67 |
| Weight | 2 kg (4.4 lb.) |
| Working Temperature and Humidity | -20 °C to 70 °C (-4 °F to 158 °F) 5% to 95% @ 40°C (non-condensing) |
| Working Environment | 90% or less (non-condensing) |
| Dimensions | 114.3 x 114.3 x 917.5 mm (4.5 x 4.5 x 36.1 inch) |
| Power Consumption | Max. 10 W |
| Weight (with Package) | 3 kg (6.6 lb.) |
| Dimensions (with Package) | 150 x 150 x 1000 mm (5.9 x 5.9 x 39.3 inch) |
| Storage Temperature and Humidity | Temperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing) |
| Startup and Operating Conditions | Temperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Smart Function | |
| ANPR Supported Country/Region | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, China, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
Downloads
Additional information
| Brand | Hikvision |
|---|---|
| Lens | 2.8mm |
| Colour | White |
| Resolution | 4 MegaPixel |
| Technology | IP |
| Features | PoE |
