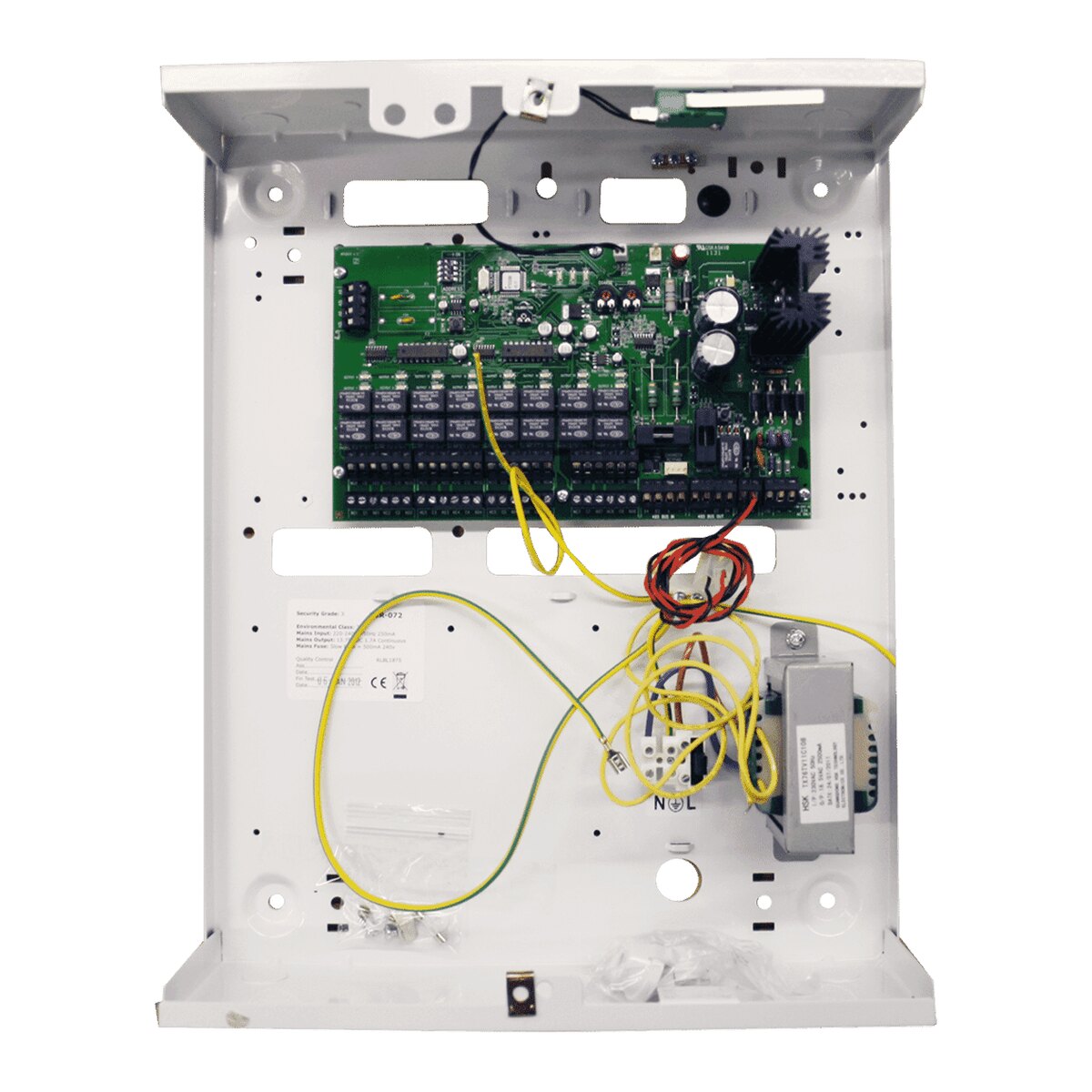

Pyronix 16 Relay Output Expander with PSU EURO-OEM16R+PSU

If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products

In stockSKU: EURO-OEM16R+PSU

Metal housing
Tamper protection
Relay outputs: 16
Certified operating temperature: -10C to +50C

Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
Express delivery 1-2 working days
Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
+44 (0) 121 655 014610:00 - 17:00 Mon-Fri

Description

An output expander that adds 16 relay outputs to a Pyronix Euro panel, with its own power supply.

Key features

Metal housing
Tamper protection
Relay outputs: 16
Certified operating temperature: -10C to +50C
Nominal operating temperature: -10C to +50C
Intergrated power supply: 2.5A

Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.

Specifications

Input and output expanders technical characteristics
Metal housing	Yes
Tamper protection	Yes
Inputs & outputs
Relay outputs	16
Environmental and operating features
Certified operating temperature	-10C to +50C
Nominal operating temperature	-10C to +50C
Physical dimensions (H x W x D)	390 x 305 x 100mm
Weight	4.8kg inc battery
Electrical & battery
Intergrated power supply	2.5A
Battery capacity	700mA (8A to 17A)
Battery supply protection	Reverse polarity protected
Battery low voltage protection	10.5v low voltage cut off
Internal battery charger	800mA Continuous, 13.68V nominal (fold-back current limited)
Recharge time
Mains supply	230v (220-240v) AC Max 250mA
Operating voltage	11-15v DC
Current limit	400mA
Certifications and warranty
Security Grade	Grade 3
Environmental class	II
Electrical conformity	CE
Warranty	2 years
