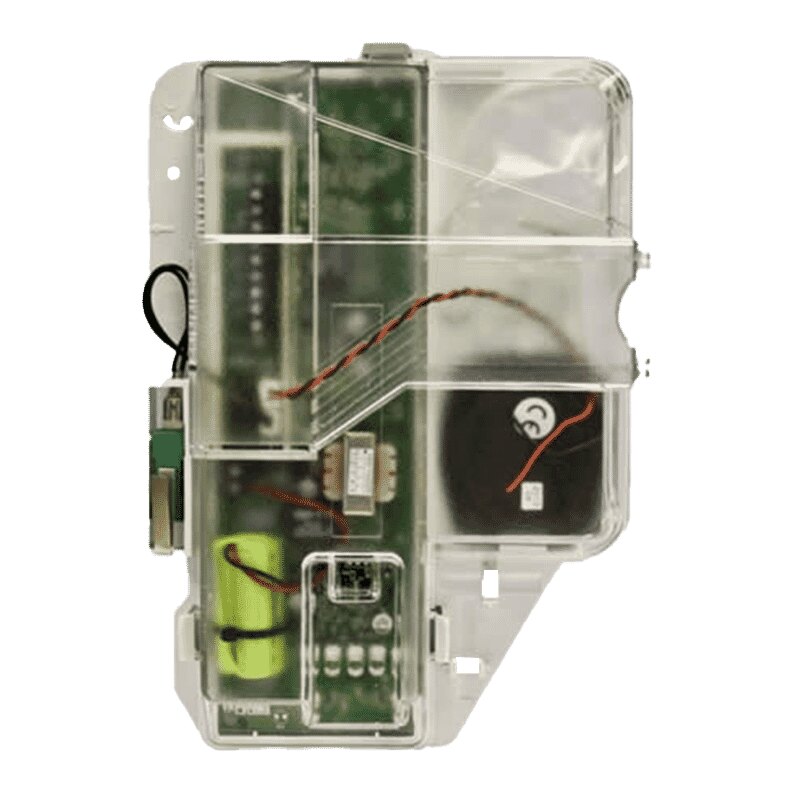

Pyronix Deltabell E External Sounder Module, Grade 2 FPDELTAE2MOD
Login for Price
- Loudness: 104 dB(A)
- Optional comfort LED
- Sound and light indication on alarm
- Engineer hold off
Description
A replacement electronics module for a Pyronix Deltabell external sounder.
Key features
- Loudness: 104 dB(A)
- Optional comfort LED
- Sound and light indication on alarm
- Engineer hold off
- Number of Piezos: 1
- Flashing LED
Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.
Specifications
| Loudness | 104 dB(A) |
| Optional comfort LED | Yes |
| Sound and light indication on alarm | Yes |
| Engineer hold off | Yes |
| Number of Piezos | 1 |
| Flashing LED | Yes |
| Comfort LED | Yes |
| Back-lit | No |
| Tamper protection | Yes |
| Strobe duration and frequency | 10mS, 1Hz |
| Sounder maximum duration | 15 mins |
| SAC (self-actuating bell) / SAB (self-activating bell) option | Yes |
| Self-levelling | Yes |
| Certified operating temperature | -25C to 60C |
| Nominal operating temperature | -30C to 60C |
| Physical dimensions (H x W x D) | 290 x 285 x 50mm |
| Battery type | NiMH 7.2V, 250mAh |
| Battery life | 2 – 5 years |
| Operating voltage | 9-16V |
| Quiescent current consumption | |
|---|---|
| Electrical conformity | CE |
| EN Certificate | EN50131-4:2009 |
| Environmental class | IV |
| Warranty | 2 Years |
| Security Grade | Grade 2 |
Downloads
Additional information
| Brand | Pyronix Hikvision |
|---|
