Pyronix Deltabell X External Sounder Module, Grade 3 FPDELTAX3MOD

If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products

In stockSKU: FPDELTAX3MOD

Loudness: 104 dB(A)
Sound and light indication on alarm
Engineer hold off
Number of Piezos: 2

Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
Express delivery 1-2 working days
Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
+44 (0) 121 655 014610:00 - 17:00 Mon-Fri

Description

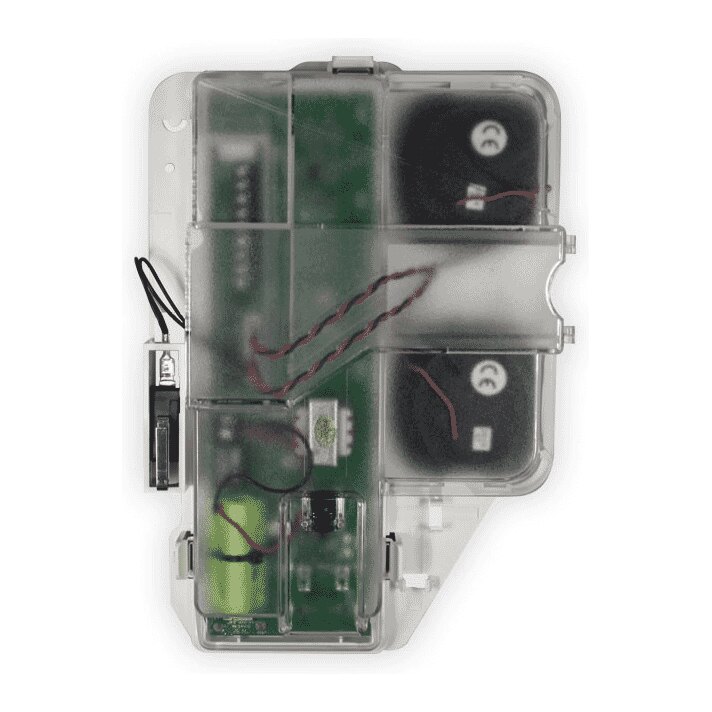

A replacement electronics module for a Pyronix Deltabell external sounder.

Key features

Loudness: 104 dB(A)
Sound and light indication on alarm
Engineer hold off
Number of Piezos: 2
Flashing LED
Comfort LED

Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.

Specifications

Loudness	104 dB(A)
Sound and light indication on alarm	Yes
Engineer hold off	Yes
Number of Piezos	2
Flashing LED	Yes
Comfort LED	Yes
Back-lit	Yes (Requires optional lightbox)
Tamper protection	Yes
Strobe duration and frequency	10ms, 1Hz
Sounder maximum duration	15 mins
Available with or without a lightbox	Yes
SAC (self-actuating bell) / SAB (self-activating bell) option	Yes
Self-levelling	Yes
Certified operating temperature	-25°C to 60°C
Nominal operating temperature	-30°C to 60°C
Physical dimensions (H x W x D)	290 x 285 x 50mm
Battery type	NiMH 7.2V, 250mAh
Battery life	2 – 5 years
Operating voltage	9-16V
Alarm current	300mA
Quiescent current consumption	90mA
Electrical conformity	CE
EN Certificate	EN50131-1
Environmental class	IV
Warranty	2 Years
Security Grade	Grade 3
