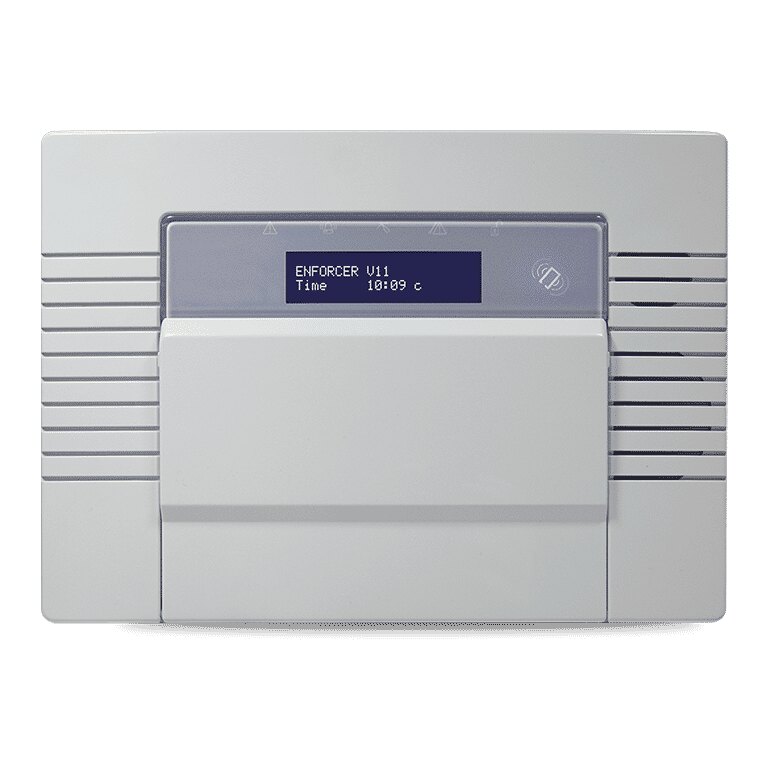

Pyronix Enforcer V11 32-Zone Wireless Alarm Panel ENF32UK-WE
Login for Price
- Two-way wireless technology
- Independent areas: 4
- Part sets: 4
- Tamper protection: Front and rear
Description
The Pyronix Enforcer V11 two-way wireless alarm panel on its own, for building a system around your own choice of detectors. The keypad and proximity reader are built into the front of the panel.
Key features
- Two-way wireless technology
- Independent areas: 4
- Part sets: 4
- Tamper protection: Front and rear
- LCD keypad with integrated proxmity reader
- User codes and prox tags: 80
Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.
Specifications
| Two-way wireless technology | Yes |
| Independent areas | 4 |
| Part sets | 4 |
| Tamper protection | Front and rear |
| LCD keypad with integrated proxmity reader | Yes |
| User codes and prox tags | 80 |
| Guard codes | 20 |
| Reporting formats | DIGI-WIFI / DIGI-LAN: Contact ID IP, Fast Format IP, SIA IP, Push Notifications. | DIGI-GPRS / DIGI-GPRS+SIM: Contact ID IP, SIA IP, Push Notifications and SMS. | DIGI-1200 / DIGI-GSM: Contact ID, Fast Format, SIA and SMS. |
| System logs | 750 |
| Signal Strength Indicators (SSI) | Yes |
| Instant two way device control (ITDC) | Yes |
| Pyronix high security two way wireless data encryption protocol (TDE) | Yes |
| Pyronix intelligent jamming detection | Yes |
| Programmable wireless supervision time | Yes |
| 868MHz transceiver FM technology | Yes |
| One push to learn | Yes |
| Tranmission method | Fully encrypted rolling code | (4294967295 combinations) |
| Transmission range | 300m in open space |
| Input type | Wireless and Wired |
| Channels | 2 |
| Two-way wireless inputs | 64 (maximum with additional wireless expander) |
| Onboard wired inputs | 2 (wired to I/O board) |
| Wired EOL inputs | 34 (maximum with additional wired expanders) |
| Wired double pole inputs | 32 (must use EOL mode 4k7/2k2 and wired expanders) |
| Total inputs | 66 |
| Outputs on board | 3 (PGM1, STRB, BELL) |
| Two-Way Wireless Keypads | 4 |
| Output modules | 1 |
| Maximum outputs | 38 |
| Two-way wireless keyfobs | 32 |
| Two-way wireless sirens | 2 |
| Wired keypads | 4 (Including the Enforcer control panel) |
| Readers and entry control | 3 |
| Onboard | 1 – 34 |
| ZEM 0 | 35 – 42 |
| ZEM 1 | 43 – 50 |
| ZEM 2 | 51 – 58 |
| ZEM 3 | 59 – 66 |
| Modem type (included) | DIGI-WIFI |
| GPRS modem (optional) | Yes |
| GSM modem (optional) | Yes |
| PSTN modem (optional) | Yes |
| LAN modem (optional) | Yes |
| Supports PyronixCloud & HomeControl+ App | Yes |
| SMS numbers | 10 |
| Event Signalling to Insite | Yes |
| Formats | Contact ID, Contact ID IP, Fast Format, Fast Format IP, SIA, SIA IP, Push notifications and SMS |
| SIA Level 1 | Yes |
| Contact ID | Yes |
| ARC compatibility | Yes |
| Compatible with UDL software | Yes |
| Voice modem / PSTN speech dialler (optional) | Yes |
| Storage temperature | -20C to +60C |
| Certified operating temperature | -10C to +40C |
| Nominal operating temperature | -10C to +40C |
| Alarm period | 15 mins maximum |
| Physical dimensions (W x H x D) | 220 x 160 x 50mm |
| Weight | 1025g |
| Battery type | NiMH 8 cell 2200mAh rechargeable battery |
| Battery life | 3 – 5 Years |
| Battery capacity | 2200mAh |
| Battery voltage | 12.71V (with no mains and battery fully charged) |
Downloads
Additional information
| Brand | Pyronix Hikvision |
|---|
