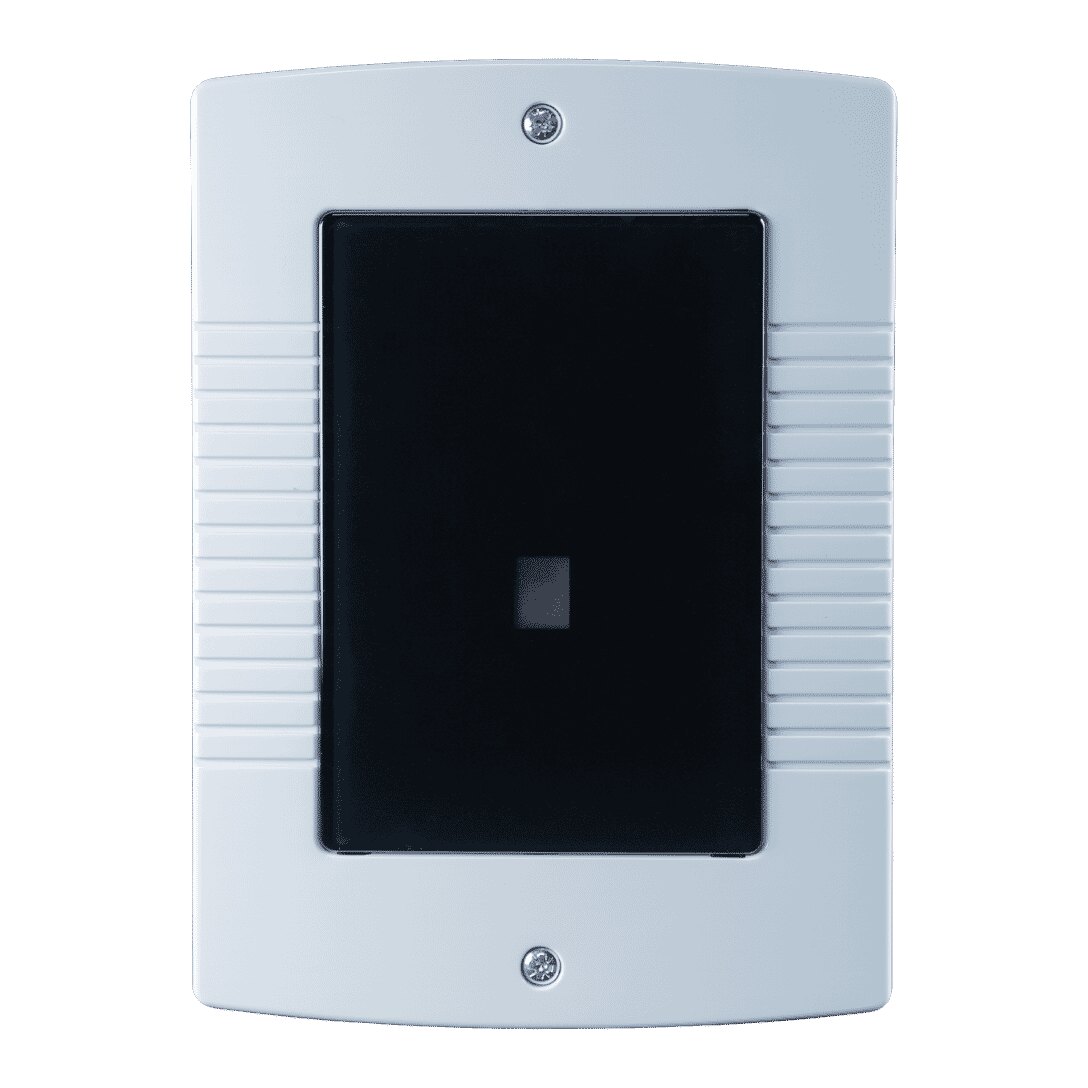

Pyronix Universal Wireless Receiver UR2-WE
Login for Price
- Plastic housing
- Tamper protection
- Fault signalling (dedicated output relay): 1
- System ARM/DISARM input: 1
Description
A wireless receiver that brings Pyronix two-way wireless devices onto a wired alarm panel.
Key features
- Plastic housing
- Tamper protection
- Fault signalling (dedicated output relay): 1
- System ARM/DISARM input: 1
- Alarm indication (7 segment display): 1
- Alarm Relay: 2
Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.
Specifications
| Plastic housing | Yes |
| Tamper protection | Yes |
| Fault signalling (dedicated output relay) | 1 |
| System ARM/DISARM input | 1 |
| Alarm indication (7 segment display) | 1 |
| Alarm Relay | 2 |
| Signal Strength Indicators (SSI) | Yes |
| Instant two way device control (ITDC) | Yes |
| Pyronix high security two way wireless data encryption protocol | Yes |
| Pyronix intelligent jamming detection | Yes |
| Wireless supervision time (fixed 2 hours) | Yes |
| 868MHz transceiver FM technology | Yes |
| Tranmission method | Fully encrypted rolling code |
| Transmission range | 1.6km in open space |
| Channels | 2 (each can support either keyfobs or detectors, not both at the same time) |
| Two-way wireless inputs | 10 per channel |
| Two-way wireless keyfobs | 6 per channel |
| Storage temperature | -40C to +80C |
| Nominal operating temperature | -10C to +50C |
| Physical dimensions (H x W x D) | 173 x 125 x 32mm | PCB 135 x 90 x 15mm |
| Operating voltage | 9V 15V |
| Quiescent current consumption | 80mA |
| Relay outputs | 3A @ 30VDC |
| Environmental class | II |
| Electrical conformity | CE |
| Warranty | 2 years |
Downloads
Additional information
| Brand | Pyronix Hikvision |
|---|
