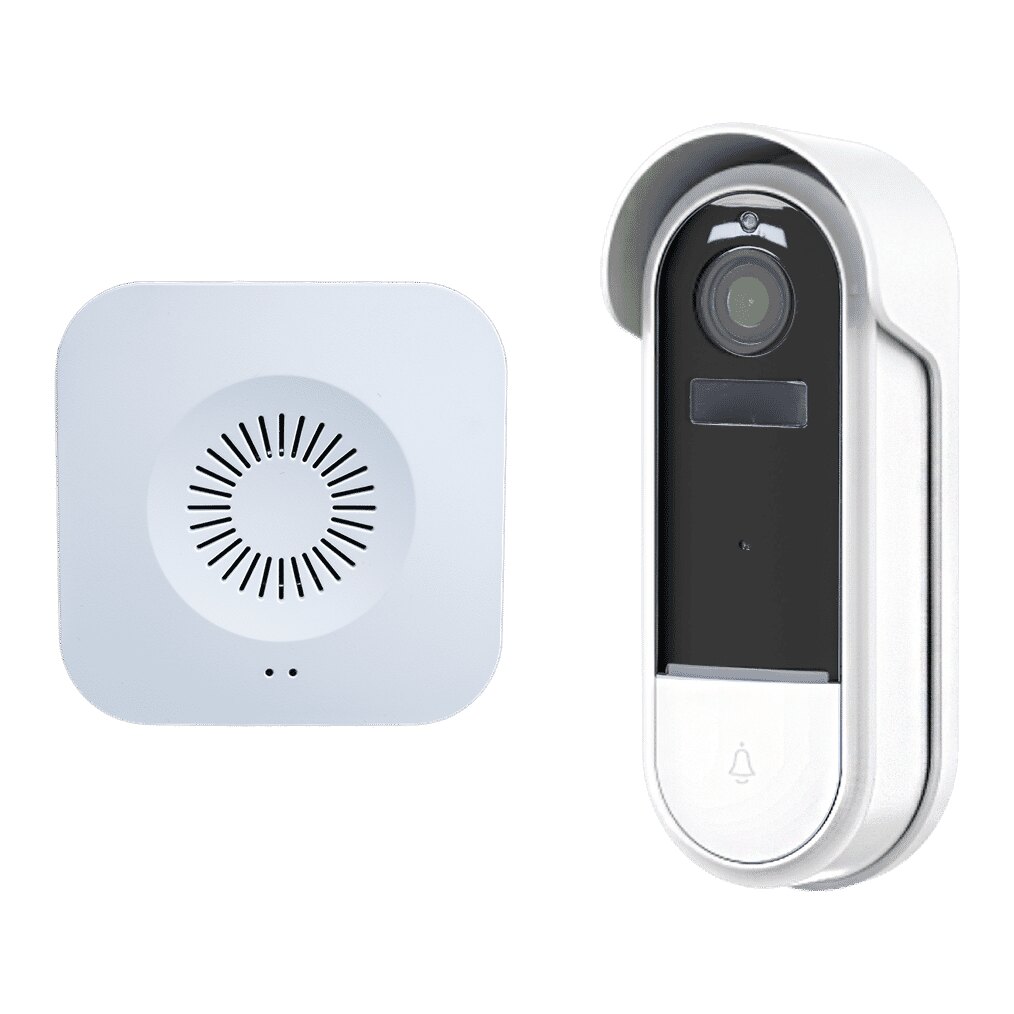

Pyronix Smart Video Doorbell Kit DOORBELL2/KIT-SDC
Login for Price
- Infrared night vision
- Wi-Fi
- IP65 weatherproof
Description
A Pyronix video doorbell. See and speak to whoever is at the door from your phone, wherever you are.
Key features
- Infrared night vision
- Wi-Fi
- IP65 weatherproof
Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8€ 3Megapixel CMOS |
| Effective Pixels | 2304(H) x 1296(V) |
| Shutter | 1/15~1/10,000s |
| Min. illumination | Colour [email protected], Black/White [email protected] |
| IR Distance | Night visibility up to 10m |
| Day/Night | Auto(ICR)/Colour/B&W |
| WDR | DWDR |
| Lens & FOV (H/V/D) | [email protected], 110°/ 59° / 135° |
| Video & Audio | |
| Compression | H.264 |
| Bit Rate | 32Kbps~2Mbps |
| Frame Rate | 1~15fps |
| Dual Stream | Yes |
| Audio Input/Output | Built-in mic/speaker |
| Network | |
| Alarm Trigger | Button triggering, PIR detection |
| Wireless Security | 64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Communication Protocol | HTTP, DHCP, DNS, TCP, IP |
| Interface Protocol | Private |
| Wireless | 2.4G WIFI (IEEE802.11b/g/n) |
| Mobile Phone OS | iOS 9 or later, Android 5 or later |
| Security | AES128 |
| Max. User Access | 4 |
| Battery & PIR | |
| Capacity | 6700mAh rechargeable lithium battery |
| Stand-by Current | 200-800 uA (average) |
| Working Current | 150-200 mA (IR off) |
| Stand-by Time | 6 months |
| Working Time | 1.5-2 months (varies based on settings, usage & temperature) |
| PIR Detection Range | Max. 5m |
| PIR Angle | 100° |
| General | |
| Operating Temperature | -20°C to 50°C |
| IP Rating | IP65 |
| Power Supply | DC 5V/1A, AC 12~24V |
| Power Consumption | Max. 2W |
| Specifications | |
| Storage | SD card (Max. 128GB), Cloud storage |
| Optional Accessory | Wireless Chime |
| Dimensions | 57 x 41 x 145mm |
| Net Weight | 200g |
Downloads
Additional information
| Brand | Pyronix Hikvision |
|---|---|
| Technology | IP |
