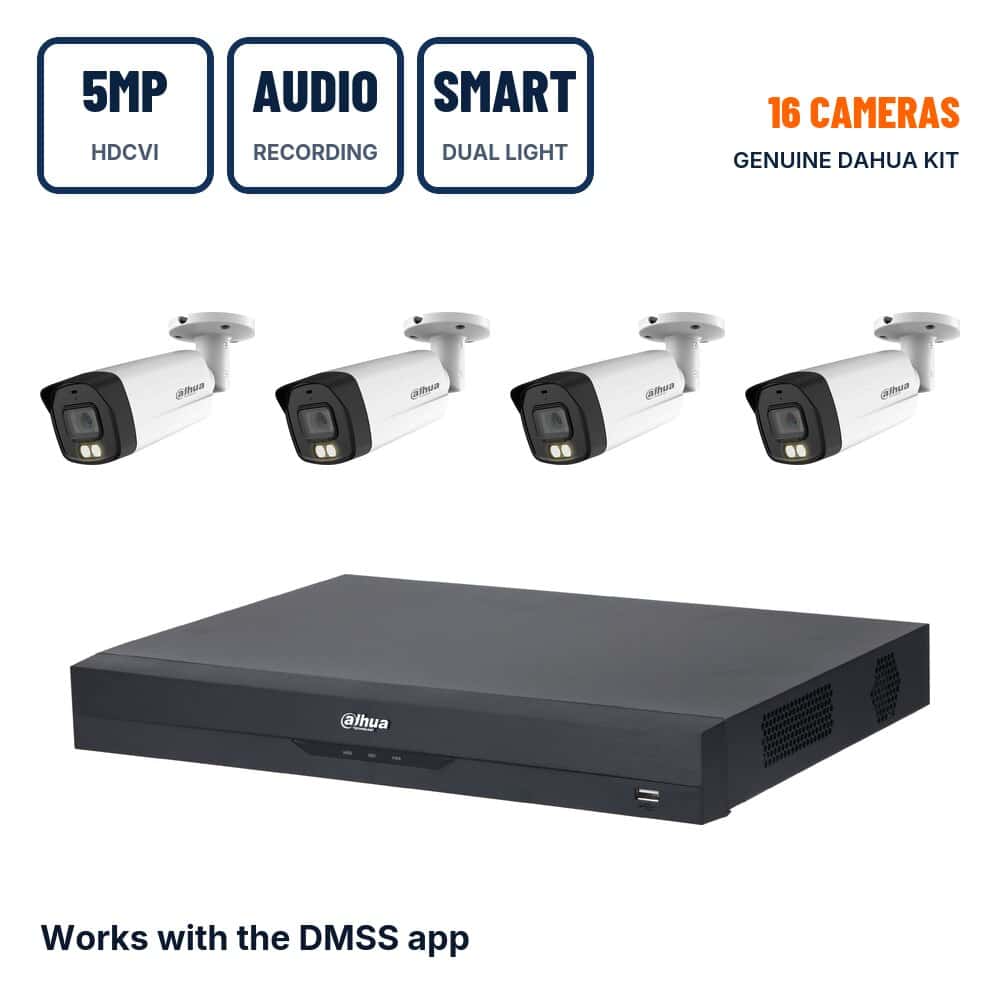

Dahua 16 Camera 5MP Smart Dual Light Bullet CCTV Kit with Audio Recording
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
This is a fully customisable CCTV kit package where you can select the items you require from the options below. You can also click the product links to view or order individual items. Hard drives in a CCTV kit will be pre-tested and installed prior to shipment.
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description
Sixteen bullet cameras for a long perimeter, such as a car park or the side of an industrial unit.
The DH-XVR5216AN-4KL-I3-16P records all sixteen at 5MP and has two hard drive bays. Its WizSense detection is also what switches each camera’s warm light on for a person or vehicle. It is a PoC recorder, but these cameras run from the 12V supply in the kit, so turn PoC off on their channels in the recorder’s settings. Pick the hard drive size in the recorder’s own options.
An 18-way 20A lockable power box feeds every camera from one place.
About the camera: DH-HAC-HFW1509TMP-IL-A-S2
A 5MP (2880 × 1620) HDCVI bullet with an F1.0 lens, the widest aperture of any camera in our Dahua kits. More light in means a cleaner picture at night.
Smart mode stays on infrared and lets the recorder switch the warm light on when it detects a person or vehicle in your zone, then back again when they leave. You can also lock it to warm light for colour all night, or to infrared only. Both lights reach 40 m. The microphone is built in, and the housing is IP67 with a ±30% supply tolerance for long cable runs.
| Sensor | 5MP CMOS, 2880 × 1620 |
| Lens | 2.8 mm, F1.0, 111° horizontal |
| Low light | 0.0001 lux at F1.0 |
| Night light | Smart IR and warm light, IR only or warm light only, each up to 40 m |
| WDR | 120 dB true WDR, 3D noise reduction |
| Audio | Built-in microphone, audio over coax |
| Output | CVI, TVI, AHD or CVBS, switchable |
| Housing | IP67, -40 °C to +60 °C |
| Power | 12 V DC, max 5.7 W |
What is in the kit
| Recorder | DH-XVR5216AN-4KL-I3-16P, 16-channel, two drive bays |
| Cameras | DH-HAC-HFW1509TMP-IL-A-S2 5MP Smart Dual Light bullet with mic, up to 16 |
| Audio | Built-in microphone, recorded over the coax |
| Power | 12V DC 20A, 18-way lockable power supply box |
| Storage | Two SATA bays; choose the drive size in the recorder options |
Need fewer cameras? The 4 or 8 camera version of this kit uses the same camera.
On a tighter budget? The Lite version of this kit records in 5MP Lite on a lower-cost recorder.
Additional information
| Brand | Dahua |
|---|---|
| Cameras in Kit | 16 Cameras |
| Camera Type | Bullet |
| Resolution | 5 MegaPixel |
| Night Vision | Smart Dual Light |
| Technology | 5-in-1, CVI |
| Features | AI Person/Vehicle Detection, Built-in Microphone |
