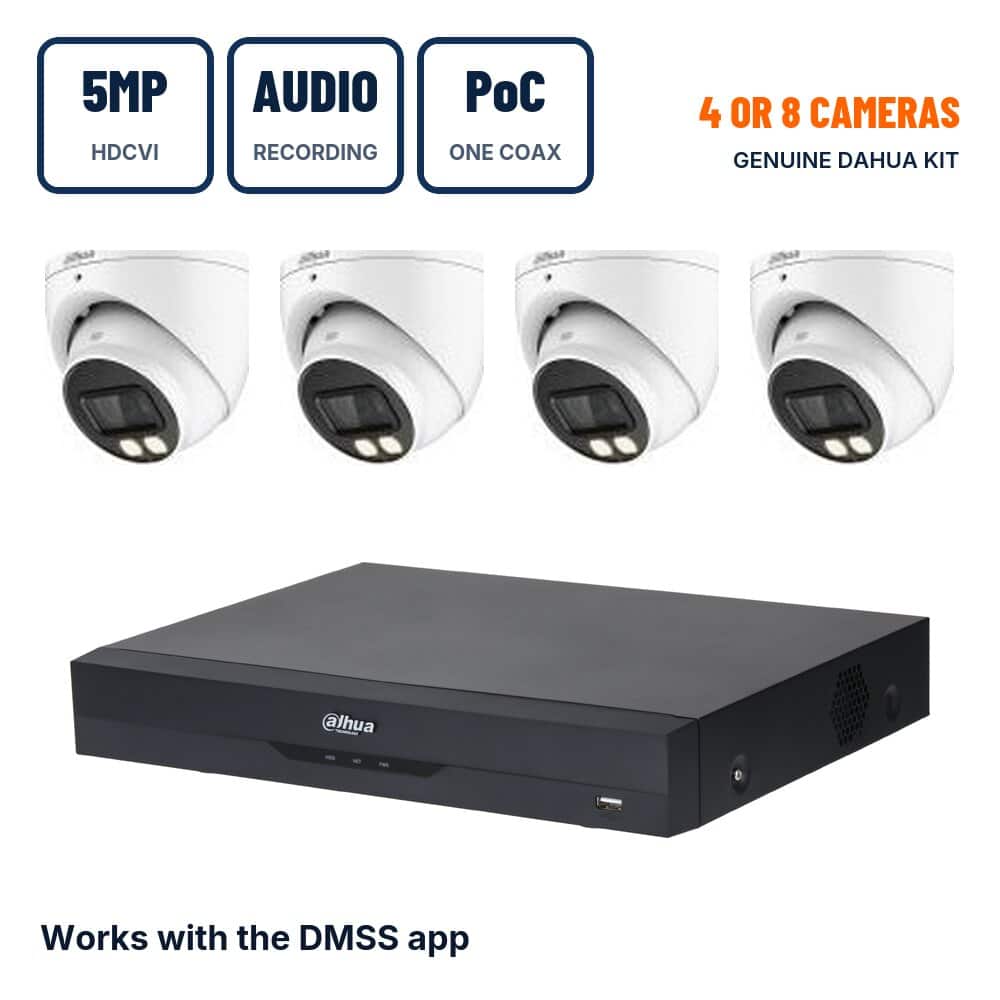

Dahua 4/8 Camera 5MP Smart Dual Light PoC CCTV Kit with Audio Recording
If you are in the trade you can simply Create an account on our website to see pricing for Trade Only products
This is a fully customisable CCTV kit package where you can select the items you require from the options below. You can also click the product links to view or order individual items. Hard drives in a CCTV kit will be pre-tested and installed prior to shipment.
- Free UK mainland delivery over £750Standard delivery 3-5 days, £7.00 inc VAT
- Express delivery 1-2 working days
- Collect free from our Birmingham counterMon to Fri, 10:00 to 17:00 · Unit 60, Camp Hill Industrial Estate, B12 0HU
- +44 (0) 121 655 014610:00 - 17:00 Mon-Fri
Description
Power over Coax keeps the wiring simple. One coax cable to each camera carries power and video, sound included, straight from the back of the recorder. No power supply box to find a home for.
The cameras are DH-HAC-HDW1509TP-IL-A-POC eyeballs: 5MP HDCVI with Smart Dual Light and a built-in microphone. They watch in infrared and can switch to warm white light for a colour picture. Choose white or grey. The lens is 2.8mm.
It records on the DH-XVR5104H-4KL-I3-4P, a 4-channel WizSense XVR with PoC on every channel. Tick the upgrade for the 8-channel DH-XVR5108H-4KL-I3-8P instead. WizSense picks out people and vehicles, so the alerts in the DMSS app are worth opening. Pick the hard drive size in the recorder’s own options.
Any RG59 or RG6 coax works for PoC. Our 20m plug-and-play cable is listed below if you need runs made up. Its power pair can simply stay unused.
About the camera: DH-HAC-HDW1509TP-IL-A-POC
A 5MP (2880 × 1620) HDCVI eyeball that takes its power down the same coax as the video. On a PoC recorder that is one cable per camera and nothing else to run.
Smart Dual Light is worked by the recorder. The camera sits on infrared at night. When the XVR's perimeter protection or SMD Plus spots a person or vehicle in a zone you set, the camera turns its warm light on for a colour picture, then drops back to infrared once they have gone. Light reaches up to 40 m. There is a microphone built in, and the 120 dB WDR copes with headlights and bright windows.
| Sensor | 5MP CMOS, 2880 × 1620 |
| Lens | 2.8 mm, F1.2, 111° horizontal |
| Night light | Smart Dual Light, up to 40 m |
| Range (2.8 mm) | Detect 64 m, observe 25.6 m, recognise 12.8 m, identify 6.4 m |
| WDR | 120 dB true WDR, 3D noise reduction |
| Audio | Built-in microphone, audio over coax |
| Output | CVI, TVI, AHD or CVBS, switchable |
| Housing | IP67, -40 °C to +60 °C |
| Power | PoC (on CVI) or 12 V DC, max 5.1 W |
What is in the kit
| Recorder | DH-XVR5104H-4KL-I3-4P 4-channel PoC, or DH-XVR5108H-4KL-I3-8P 8-channel PoC |
| Cameras | DH-HAC-HDW1509TP-IL-A-POC 5MP Smart Dual Light eyeball with mic, 4 to 8 |
| Audio | Built-in microphone, recorded over the coax |
| Power | Power over Coax from the recorder, no separate supply |
| Storage | One SATA bay; choose the drive size in the recorder options |
Covering a bigger site? The 16 camera version of this kit uses the same camera.
On a tighter budget? The Lite version of this kit records in 5MP Lite on a lower-cost recorder.
Additional information
| Brand | Dahua |
|---|---|
| Cameras in Kit | 4 Cameras, 8 Cameras |
| Camera Type | Turret |
| Resolution | 5 MegaPixel |
| Night Vision | Smart Dual Light |
| Technology | 5-in-1, CVI |
| Features | AI Person/Vehicle Detection, Built-in Microphone, PoC (Power over Coax) |
