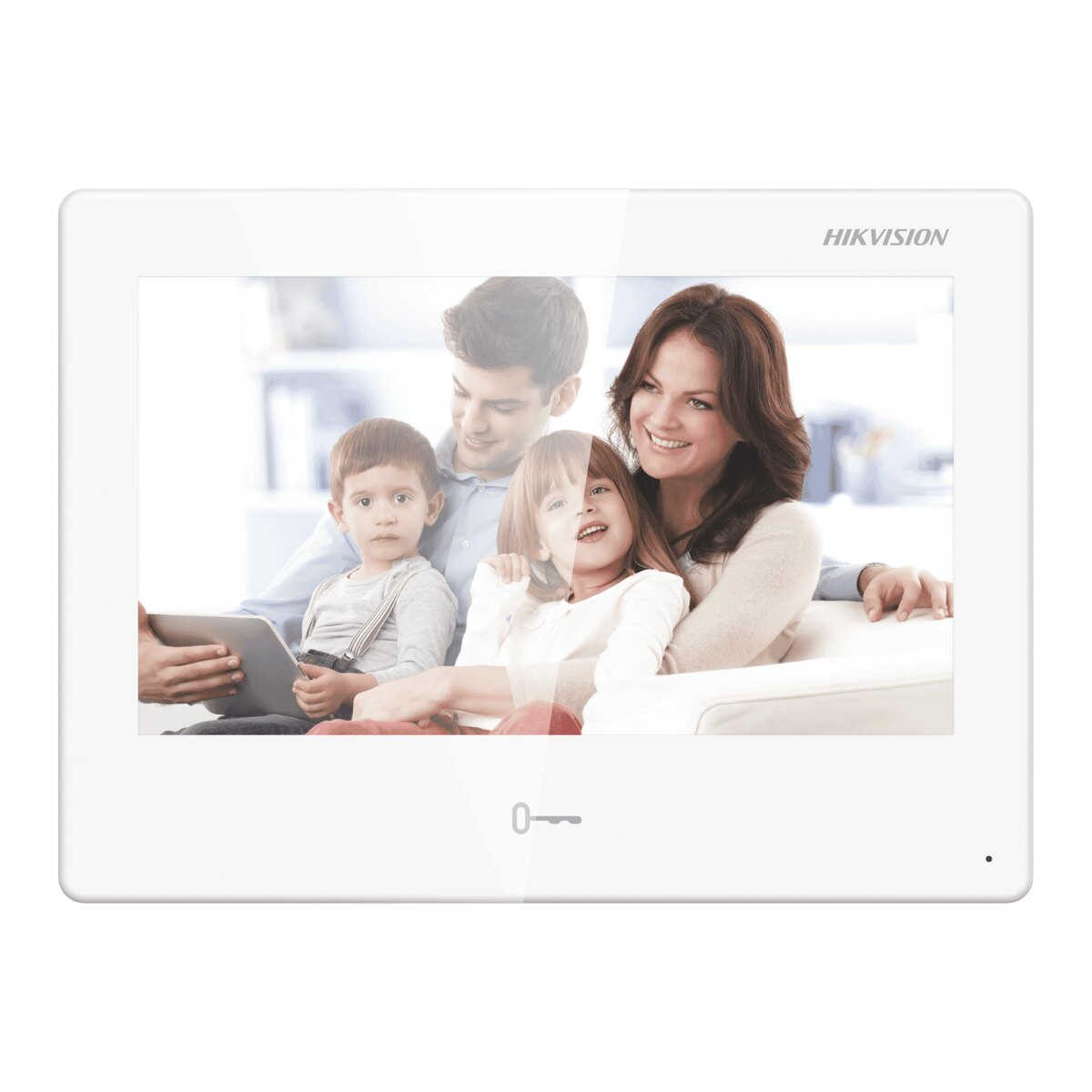

Hikvision 7″ Android Touchscreen Wi-Fi Indoor Station DS-KH9310-WTE1(B)

7-inch touchscreen
Wi-Fi
Powered over the network cable (PoE)
Works with the Hik-Connect app

Description

An indoor station for Hikvision's IP intercom range. Answer calls from the door, see who is there and release the door or gate from the screen.

Key features

7-inch touchscreen
Wi-Fi
Powered over the network cable (PoE)
Works with the Hik-Connect app

Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.

Specifications

System parameters
Operating system	Embedded Android operation system
ROM	8 GB Emmc
RAM	2 GB
CPU	Embedded processor
Display parameters
Screen size	7-inch
Operation method	Capacitive touch screen
Type	Colorful TFT
Resolution	1024 x 600
Audio parameters
Audio compression standard	G.711 U, G.711 A
Audio input	Built-in omnidirectional microphone
Audio output	Built-in loudspeaker
Audio compression bitrate	64 Kbps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Capacity
Event capacity	200
Notice capacity	16
Linked indoor extensions capacity	16
Network parameters
Communication protocol	TCP/IP, SIP, RTSP
Wired network	Support
Wi-Fi standard	Wi-Fi 802.11 b/g/n
Device interfaces
Alarm input	8
Network interface	1 RJ-45 10/100 Mbps self-adaptive
RS-485	1
TF card	Reserved
Alarm output	1 relay output, 1 alarm output
Power interface	1
General
Installation	Surface mounting
Weight	Without package: 419.3 g With package: 694 g
Working temperature	-10 °C to 50 °C (14 °F to 122 °F)
Working humidity	10% to 90%
Dimensions	187 mm x 137 mm x 25.7 mm (7.36" x 5.39" x 1.01")
Power supply	IEEE802.3af, standard PoE 12 VDC, 1 A
Application environment	Indoor
Power consumption	= 8 W
Language	English, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Arabic, Ukrainian, Mongolian
