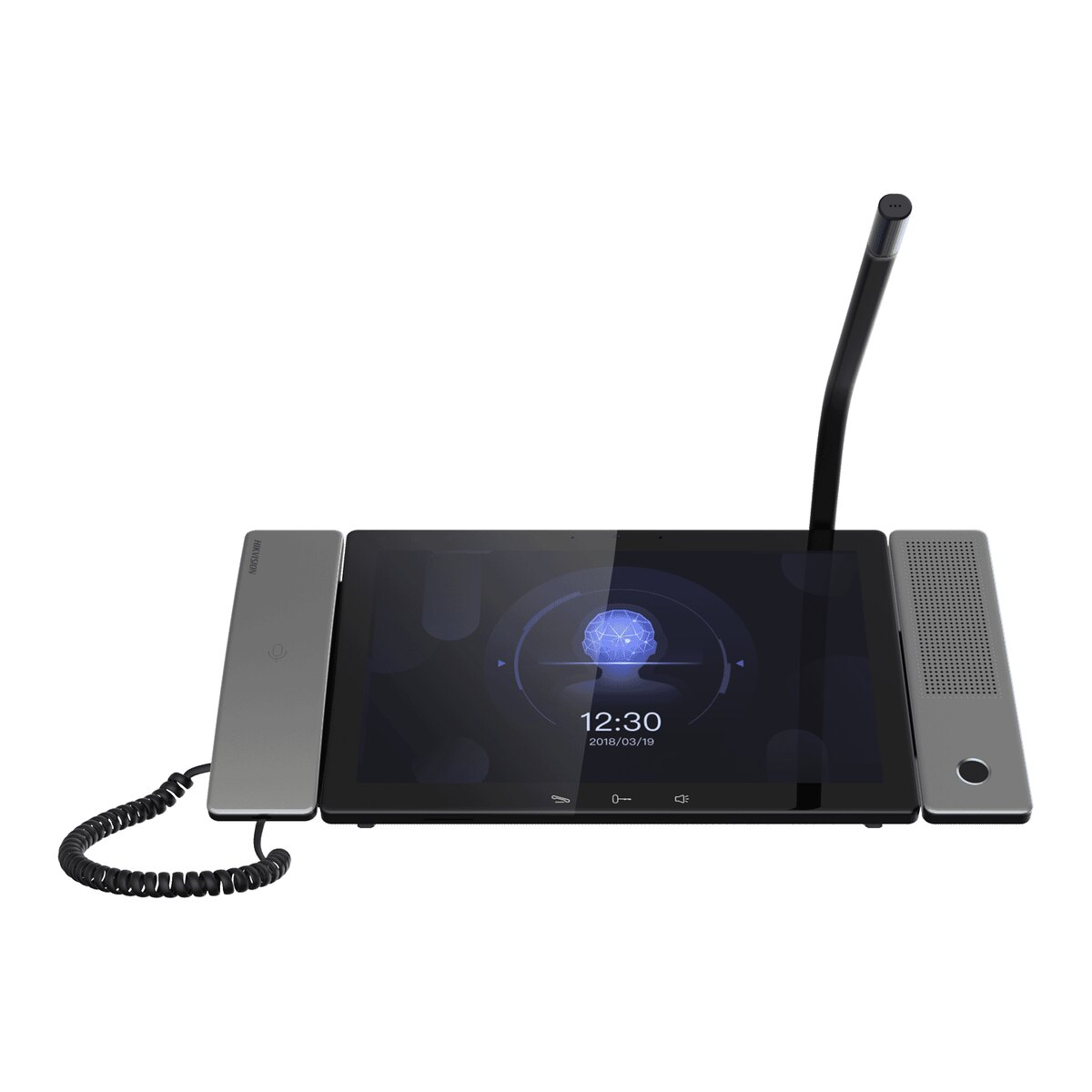

Name: Hikvision IP Video Intercom Master Station DS-KM9503
Brand: Hikvision
SKU: DS-KM9503
Price: 876.42 GBP
Availability: InStock

A master station for a Hikvision IP intercom system, for a reception desk or security office that takes calls from every door and indoor station on site.

Key features

Powered over the network cable (PoE)

Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.

Specifications

System parameters
Operating system	Android 7.1
ROM	8 GB
RAM	2 GB
CPU	Embedded processor
Display parameters
Screen size	10.1-inch
Operation method	Capacitive touch screen
Type	IPS
Resolution	1280 x 800
Video parameters
Resolution	2 MP
FOV	Horizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°
Video compression standard	H.264
Audio parameters
Audio compression standard	G.711Uã€G.711A
Audio input	Built-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm)
Audio output	Built-in loudspeaker, external speaker, external voice box or earphone (3.5 mm)
Audio compression bitrate	64 Kbps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable via software
Capacity
Notice capacity	128
Linked doorphone capacity	10000
Network parameters
Communication protocol	TCP/IP, SIP, RTSP
Wired network	2 10/100/1000 M self-adaptive Ethernet
Device interfaces
Alarm input	2 (reserved)
Network interface	2
RS-485	1 (reserved)
USB	3
TF card	Max to 128 G
Lock control	2 relay output (reserved)
General
Button	3 touch buttons
Installation	Table mounting & wall mounting
Indicator	3
Weight	Without package: 1.285 kg With package: 2.305 kg
Working humidity	10% to 90%
Dimensions	292 mm x 166 mm x 31 mm (11.5" x 6.5" x 1.2")
Language	English, French, Portuguese (Europe), Spanish (Europe), Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Lithuanian, Estonian, Latvian, Norwegian, Greek, Danish
Power supply	Standard PoE (LAN1) 12 VDC
Application environment	Indoor
Power consumption	= 12 W
