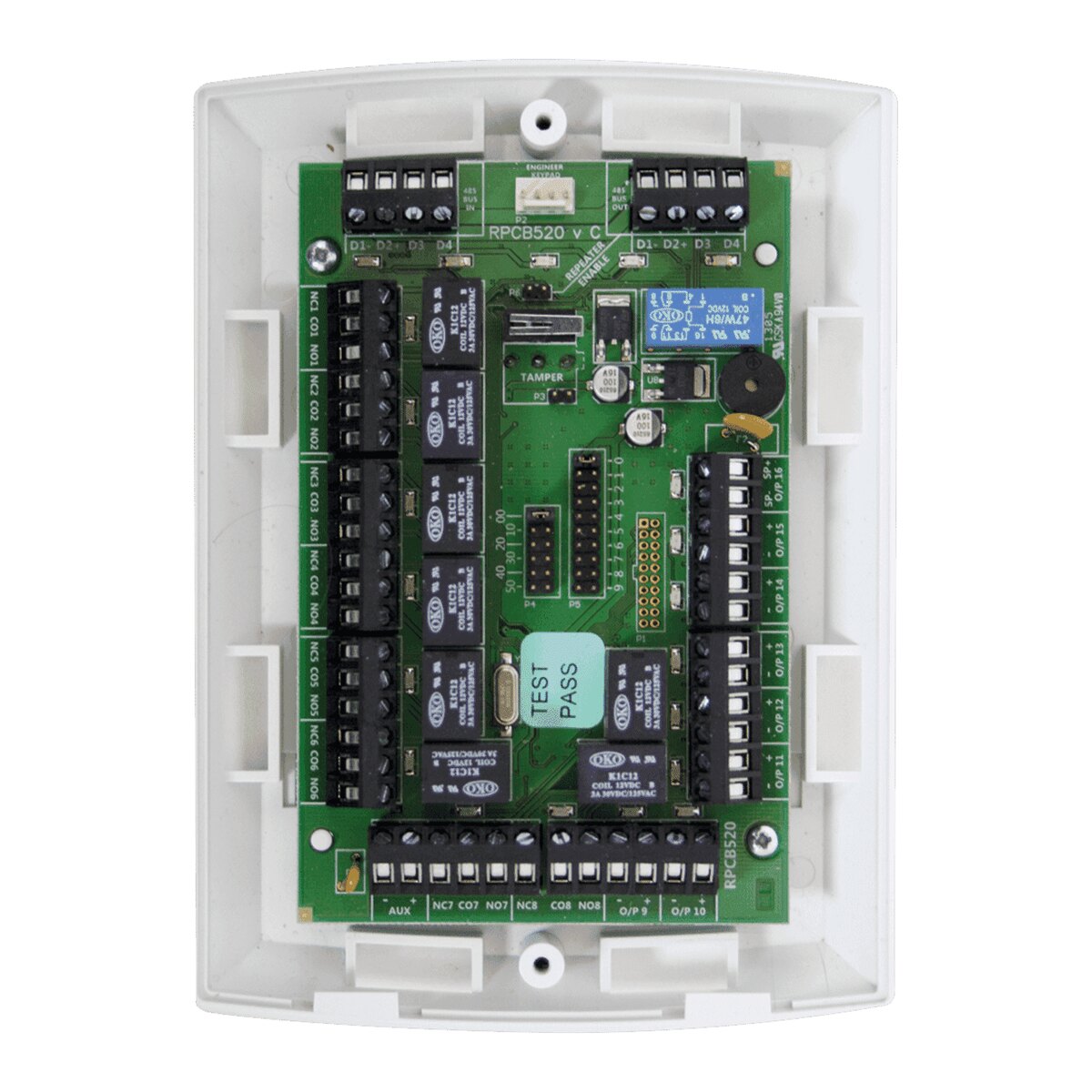

Pyronix 16 Output Expander, 8 Relay and 8 Transistor EURO-OEM8R8T
Login for Price
- Plastic housing
- Tamper protection: Front and rear
- Relay outputs: 8
- Transistorised Outputs: 8
Description
An output expander that adds 8 relay and 8 transistor outputs to a Pyronix Euro panel.
Key features
- Plastic housing
- Tamper protection: Front and rear
- Relay outputs: 8
- Transistorised Outputs: 8
- Certified operating temperature: -10C to +50C
- Nominal operating temperature: -10C to +50C
Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.
Specifications
| Â Input and output expanders technical characteristics | |
|---|---|
| Plastic housing | Yes |
| Tamper protection | Front and rear |
| Â Inputs & outputs | |
| Relay outputs | 8 |
| Transistorised Outputs | 8 |
| Â Environmental and operating features | |
| Storage temperature | -40C to +80C |
| Certified operating temperature | -10C to +50C |
| Nominal operating temperature | -10C to +50C |
| Physical dimensions (H x W x D) | 173 x 125 x 32mm |
| Â Electrical & battery | |
| Operating voltage | 9-15V |
| Â Certifications and warranty | |
| Security Grade | Grade 3 |
| Environmental class | II |
| EN Certificate | EN50131-1 | PD6662:2004 |
| Electrical conformity | CE |
| Warranty | 2 years |
Downloads
Additional information
| Brand | Pyronix Hikvision |
|---|
