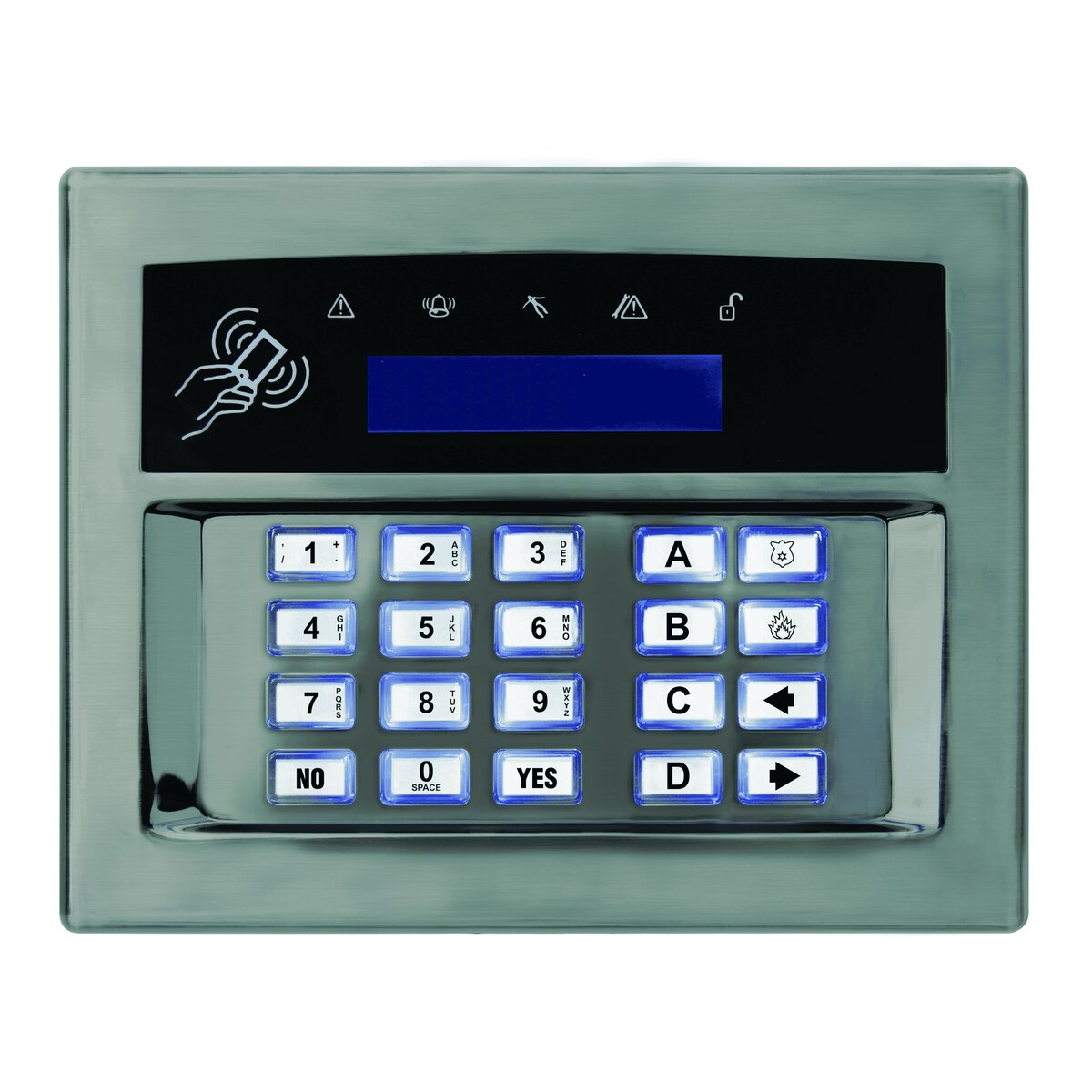

Pyronix LCD Wired Keypad, Satin Chrome EURO-LCDPZ/SCHROME
Login for Price
- LCD keypad with icon display
- Integrated prox reader
- System status display
- Entry and exit tones
Description
A wired LCD keypad for Pyronix Euro panels, with a proximity reader built in so users can set and unset with a code or a tag.
Key features
- LCD keypad with icon display
- Integrated prox reader
- System status display
- Entry and exit tones
- Backlit Keys
- Tamper protection: Front and rear
Not sure which parts your system needs? Send us a message with the panel you have and we will check what is compatible.
Specifications
| Â Setting devices technical characteristics | |
|---|---|
| LCD keypad with icon display | Yes |
| Integrated prox reader | Yes |
| System status display | Yes |
| Entry and exit tones | Yes |
| Backlit Keys | Yes |
| Tamper protection | Front and rear |
| Â Mounting | |
| Wall mounted | Yes |
| Flushmount | Yes – with flush mount back box |
| Â Environmental and operating features | |
| Storage temperature | -10C to +40C |
| Certified operating temperature | -10C to +40C |
| Nominal operating temperature | -10C to +40C |
| Physical dimensions (H x W x D) | 160 x 126 x 30mm |
| Â Electrical & battery | |
| Operating voltage | 9-15V DC |
| Â Resistance (wired inputs) | |
| Normal | 1k4 to 2k9 |
| Intruder | 4k2 to 7k8 |
| Tamper | 22k |
| Fault | 8k to 11k3 |
| Masking | (6k8): 11k6 to 22k |
| Â Certifications and warranty | |
| Security Grade | Grade 3 |
| Environmental class | II |
| EN Certificate | SG3 ECII EN50131-3:2009 EN50131-1:2006+A1:2009 PD 6662: 2010 + IA: 2015 |
| Electrical conformity | CE |
| Warranty | 2 years |
Downloads
Additional information
| Brand | Pyronix Hikvision |
|---|
