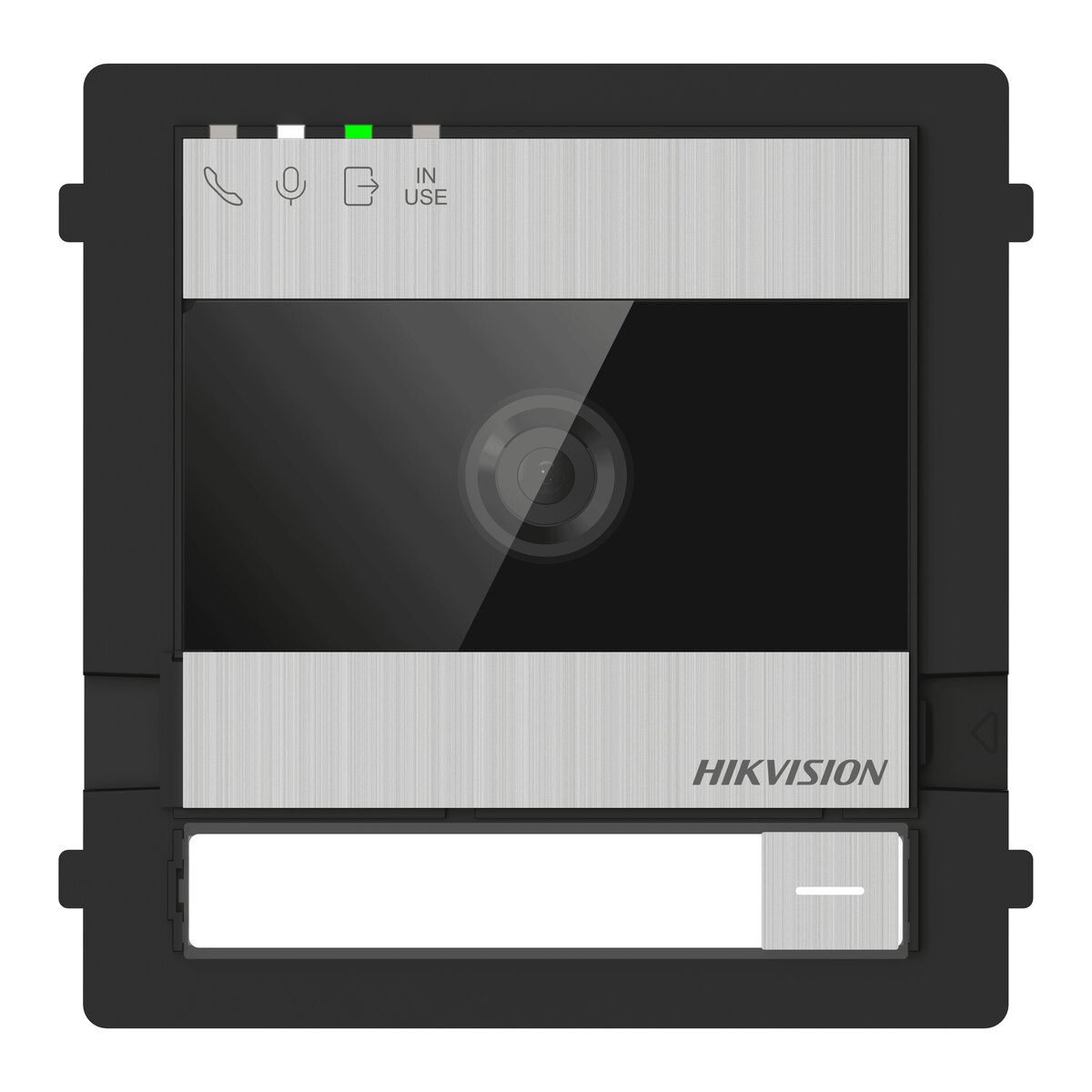

Hikvision 2-Wire HD Modular Video Door Station DS-KD7003EY-IME2
Login for Price
- Infrared night vision
- Wi-Fi
- IP65 weatherproof
- IK08 vandal resistant
Description
A video door station for Hikvision's 2-wire HD intercom range. Visitors press the call button and you answer from an indoor station or from the Hik-Connect app on your phone.
Key features
- Infrared night vision
- Wi-Fi
- IP65 weatherproof
- IK08 vandal resistant
- Working temperature: -40° C to 60° C (-22° F to 140° F)
- Works with the Hik-Connect app
Not sure which parts your system needs? Send us a message with the door and room layout and we will put the list together.
Specifications
| System parameters | |
|---|---|
| Operating system | Embedded Linux operation system |
| ROM | 4 GB |
| RAM | 256 MB |
| CPU | Embedded Processor |
| Display parameters | |
| Screen size | NA |
| Operation method | NA |
| Type | NA |
| Resolution | NA |
| Video parameters | |
| Supplement light | Low illumination, IR supplement lights |
| Video standard | H.264 |
| Lens | 1 |
| FOV | Horizontal: 133°, Vertical: 82° |
| WDR | Support |
| Resolution | 2 MP |
| Audio parameters | |
| Audio compression standard | G.711 U, G.711 A |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 2000 |
| Linked indoor station capacity | Max.99 |
| Sub door station capacity | 16 |
| Network parameters | |
| Wired network | 10/100 Mbps self-adaptive through 2-wire interface |
| Wi-Fi | Only AP mode for configuration |
| Bluetooth | NA |
| 3G/4G | NA |
| Device interfaces | |
| Alarm input | 2（supports Exit button or Door contact input） |
| Network interface | NA |
| TAMPER | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| RS-485 | 2 (RS485 out for Hikvision's sub module communication, RS485 for reservation) |
| Wiegand | NA |
| TF card | NA |
| Alarm output | NA |
| DIP switch | 6 decimal DIP switch |
| Lock control | 2 (1 relay, max to 30 VDC, 2 Aï¼›1 DC pulse:20V 4A impulsive:300 mA holding current, 30 ohm max) |
| Power interface | 48V:Powered by distributor DS-KAD7060EY or 12VDC |
| Two-wire IP interface | 1 |
| General | |
| Button | 0-2（Flexible adjustment） |
| Installation | Surface mounting & flush mounting |
| Indicator | 4 LED lights (Opening door, Calling, Intercom, In use） |
| Weight | With package: 426g (0.94lb) Without package: 290g (0.64lb) |
| Protective level | IP65 IK08 |
| Working temperature | -40° C to 60° C (-22° F to 140° F) |
| Working humidity | 10% to 90% |
| Dimensions | 99.5 mm x 98.5 mm x 35 mm (3.92" x 3.88" x 1.37") |
| Power supply | 48V:Powered by distributor DS-KAD7060EY or 12VDC |
| Application environment | Outdoor |
| Power consumption | = 6 W |
| Language | English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese |
Downloads
Additional information
| Brand | Hikvision |
|---|
